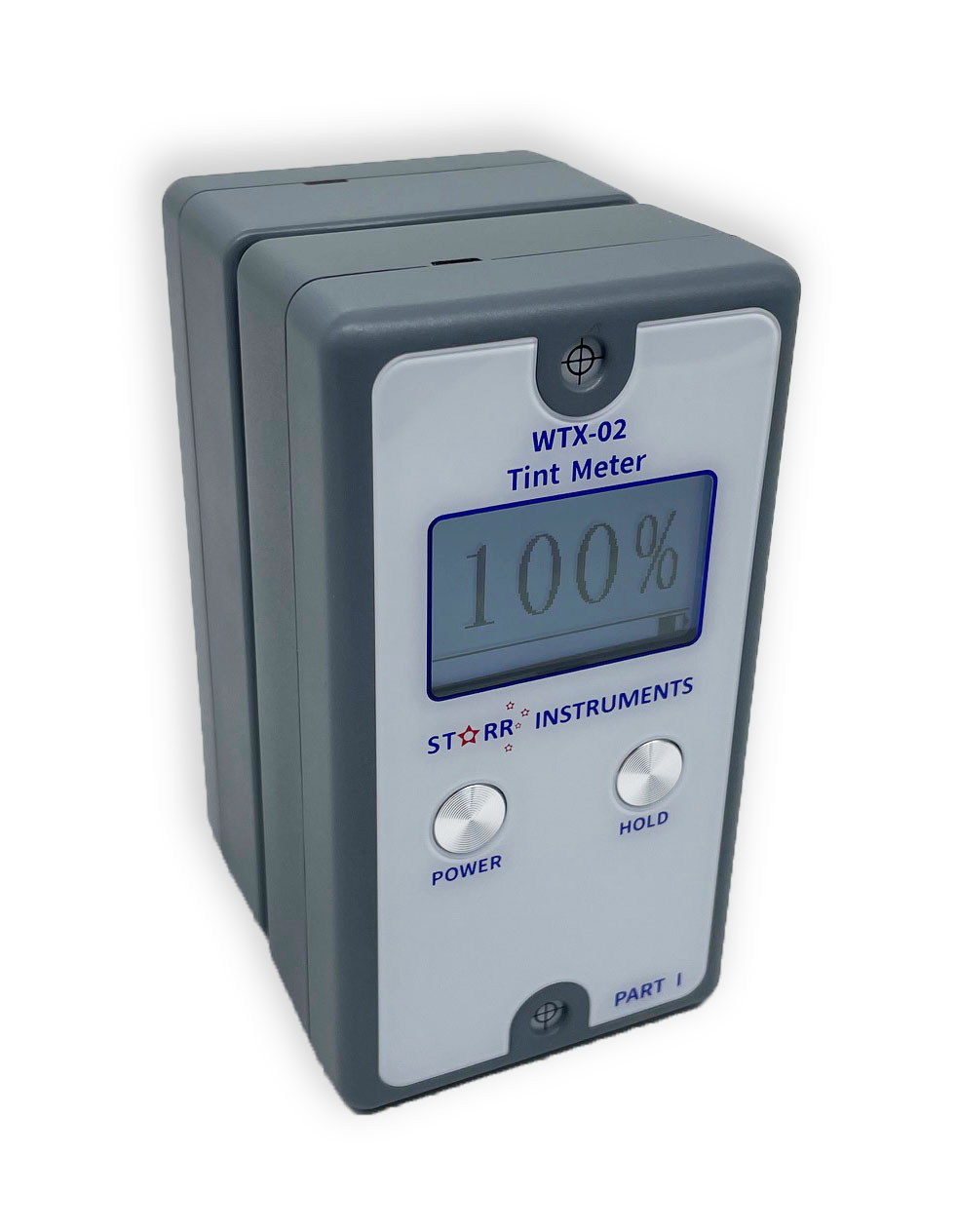

The Starr Instruments WTX-02 is a 2-piece, magnetic Window Tint Meter that is suitable for all applications, including AIS inspection stations.

This Instrument can be used to measure the Visable Light Transmittance (VLT) of almost all film and glass specimens.

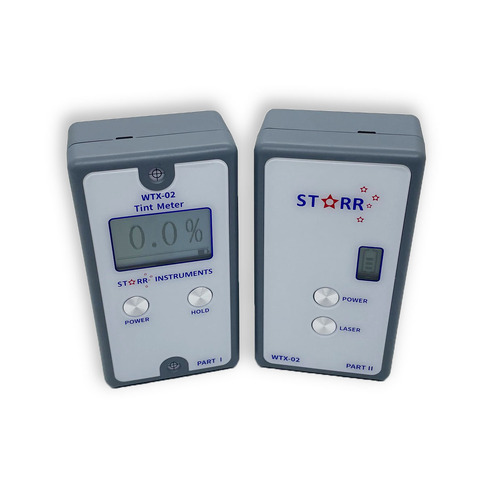

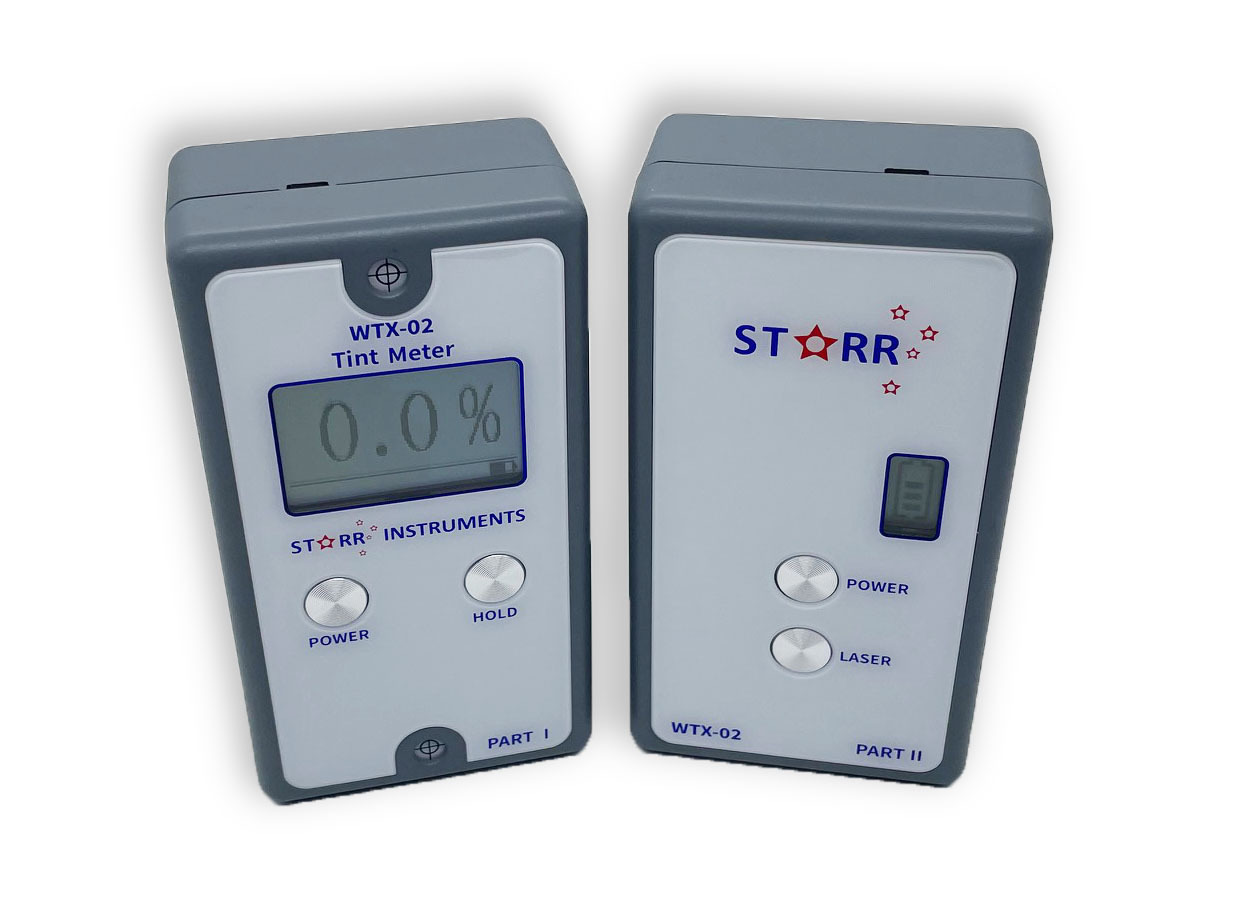

The 2-piece, magnetic bodies of the WTX-02 allows the user to test hard-to-access areas such as front and rear window screens; also making it fully compliant with Australian RWC station requirements. (* we recommend you check with your relevant state authority for specific minimum requirements, as they do vary state-to-state).

The instantaneous measurement is displayed on a large backlit screen making the results extremely visible in all conditions. Often used in the automotive field, the WTX-02 is perfect for checking the legality of window tint film on all vehicle types.

With a slim and portable design, WTX-02 ensures incredibly repeatable and accurate results. This is possible through the instruments internal calibration and precise resolution.



FEATURES:

  • Instantaneous Test Results
  • Built-In Self Calibration
  • Dual Laser Alignment
  • Simple Interface allows for easy use
  • Rechargable Battery increases longevity



SPECIFICATIONS:

Measurement Range

0 to 100%

Thickness Range

0 to 12mm

Resolution

0.1% for values <10% and 1% for values >10%

Accuracy

 Better than ±2%

VLT Wavelength

380nm to 760nm (Conforms to CIE)

Power Supply

Built-In Rechargeable Battery

Dimensions

130 x 70 x 84 mm

Weight

630 grams





(WTX-02)

SKU WTX-02
Brand STARR INSTRUMENTS by Test-Equip
