Ultrasonic Thickness Gauge: UM-5 | UM-5D | UM-5DL
A/B-Scan Ultrasonic Thickness gauge
$0.00 (incl. GST)

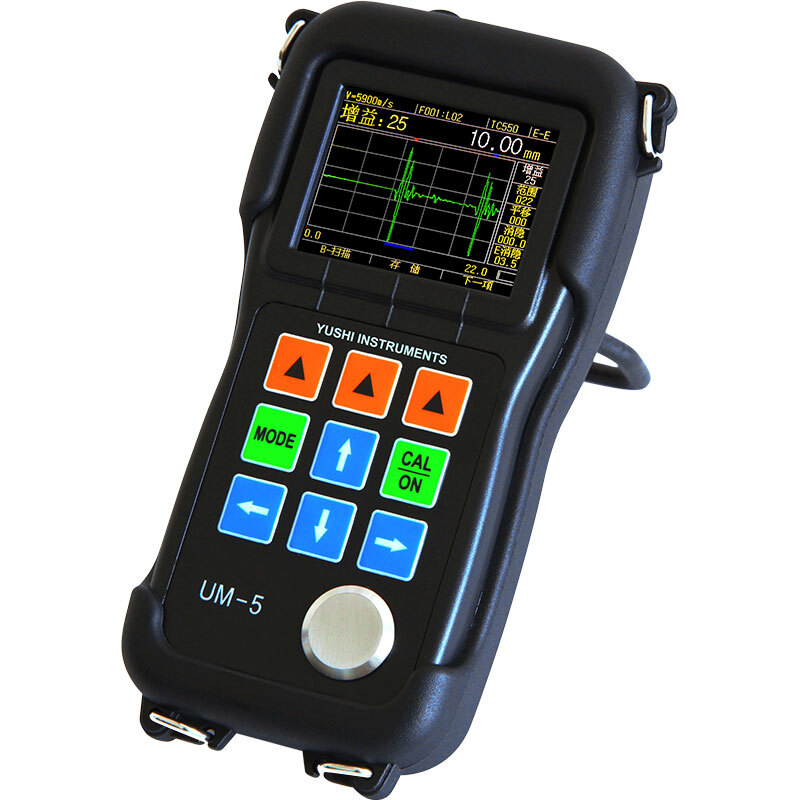

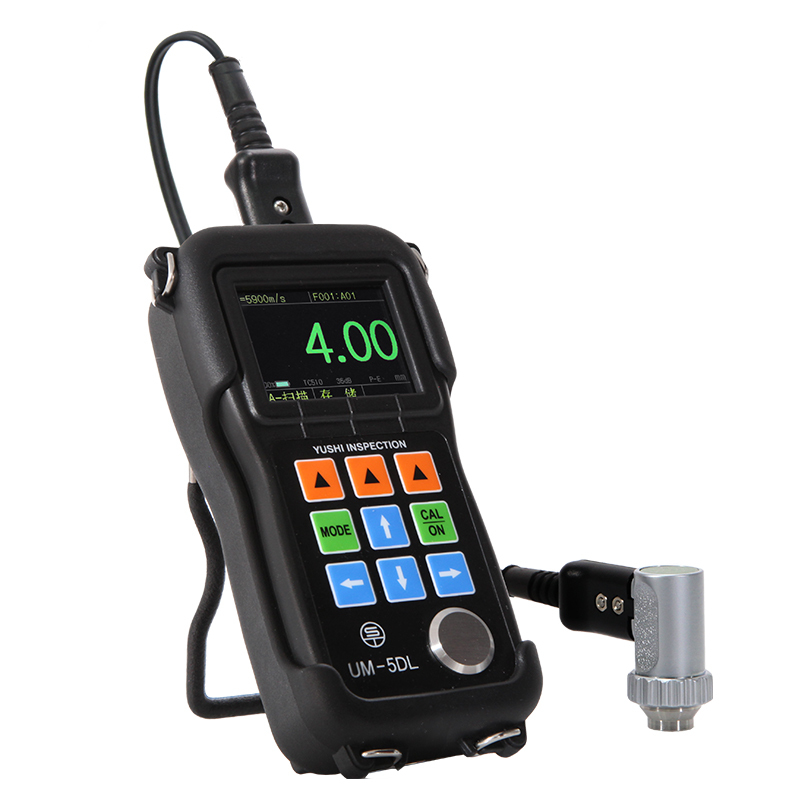

The UM-5 series Ultrasonic Thickness Gauge with live time A-Scan and time based B-scan display for flaw detection.

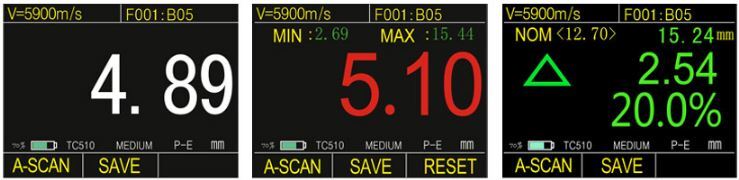

All data is presented clearly thanks to the high resolution 2.4" Color OLED display.

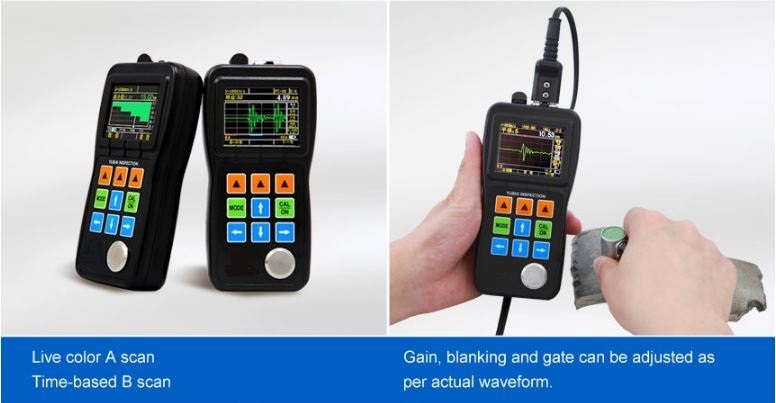

The live A-scan and time-based B-scan waveform allows the user to not only view and analyse the waveform, but you can also adjust the gain, blanking and gate for correctness of measured result and flaw detection to identify any problem areas such as wear, or corrosion build up etc.
UM-5 also features Echo-Echo mode* for thru paint/coating measurement. In this mode a paint layer or coating can be ignored and the substrate metal measured accurately. It can be used for measuring both metal and non-metalic materials including Plastic, Steel, PVC and Glass Plates and Pipes.
It has a large capacity data logger and extensive DataView software** making it suitable for use in industrial fields such as manufacturing and metal processing, etc.
* UM-5D, UM-5DL only
**UM-5DL only

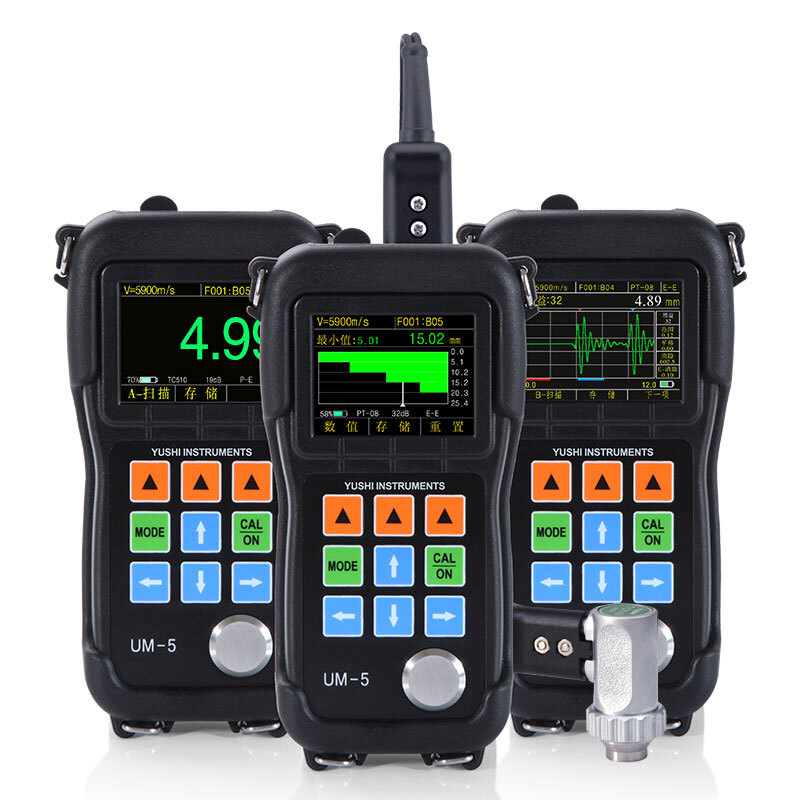

There are 3 models available within the UM-5 series. Please contact us for pricing and more details.
FEATURES:
- 0.01mm/0.001 inch Resolution
- Up to 100,000 Thickness Values can be stored (UM-5DL only)
- Up to 1,000 Waveforms can be stored also (UM-5DL only)
- Alarm Mode
- Minimum/Maximum Capture
- Adjustable gain, blanking and gate based on actual waveform
- Two-point Calibration
- Automatic V-Path Correction
- A & B-scan waveform analysis
- Thru Paint Function
SPECIFICATIONS:
Measurement Range |
Standard Mode: 0.6mm to 508mm (steel) Thru Coating Mode: 3mm to 20mm |
Measurement Mode |
P-E (pulse-echo) E-E (echo-echo) with dual-crystal probes |
Display Units | mm or inch |
Sound Velocity Range | 500 to 9999 m/s |
Display Resolution | 0.01mm / 0.001" |
Accuracy |
±0.05mm (up to 10mm) ±0.5%H+0.1 mm (>10mm) |
Calibration Mode | Zero, 1-point, 2-point |
Memory | 100,000 readings (UM-4DL) |
Display Type | 2.4" 320×240 OLED |

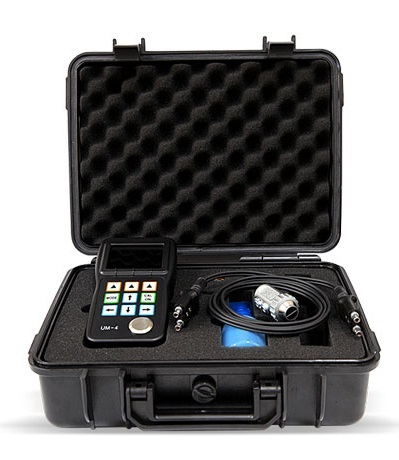

Standard delivery includes: UM-4 series Ultrasonic Thickness Gauge, Transducer (probe), Padded Carry Case, Operating Manual, Factory Calibration Certificate.
(um-5)
SKU | um-5 |
Shipping Weight | 1.5000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.240m |
Shipping Cubic | 0.010800000m3 |
