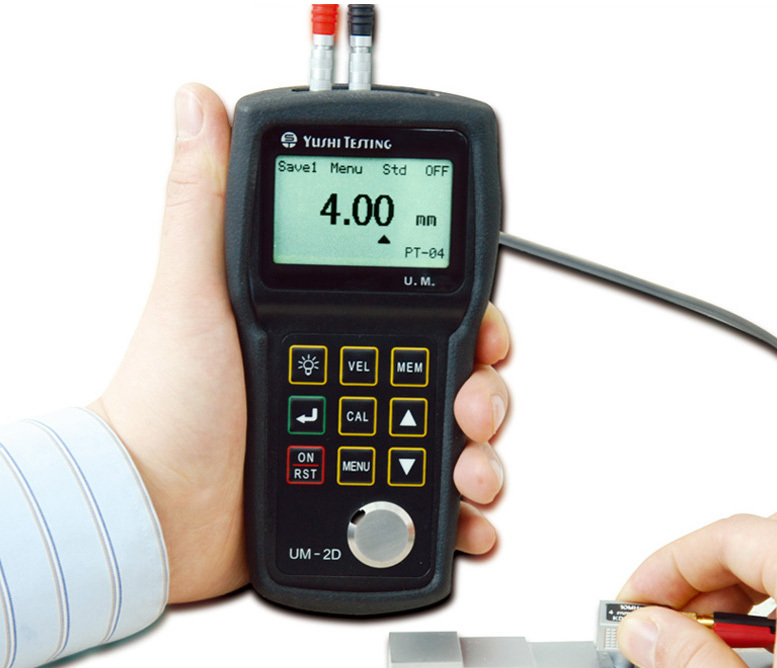

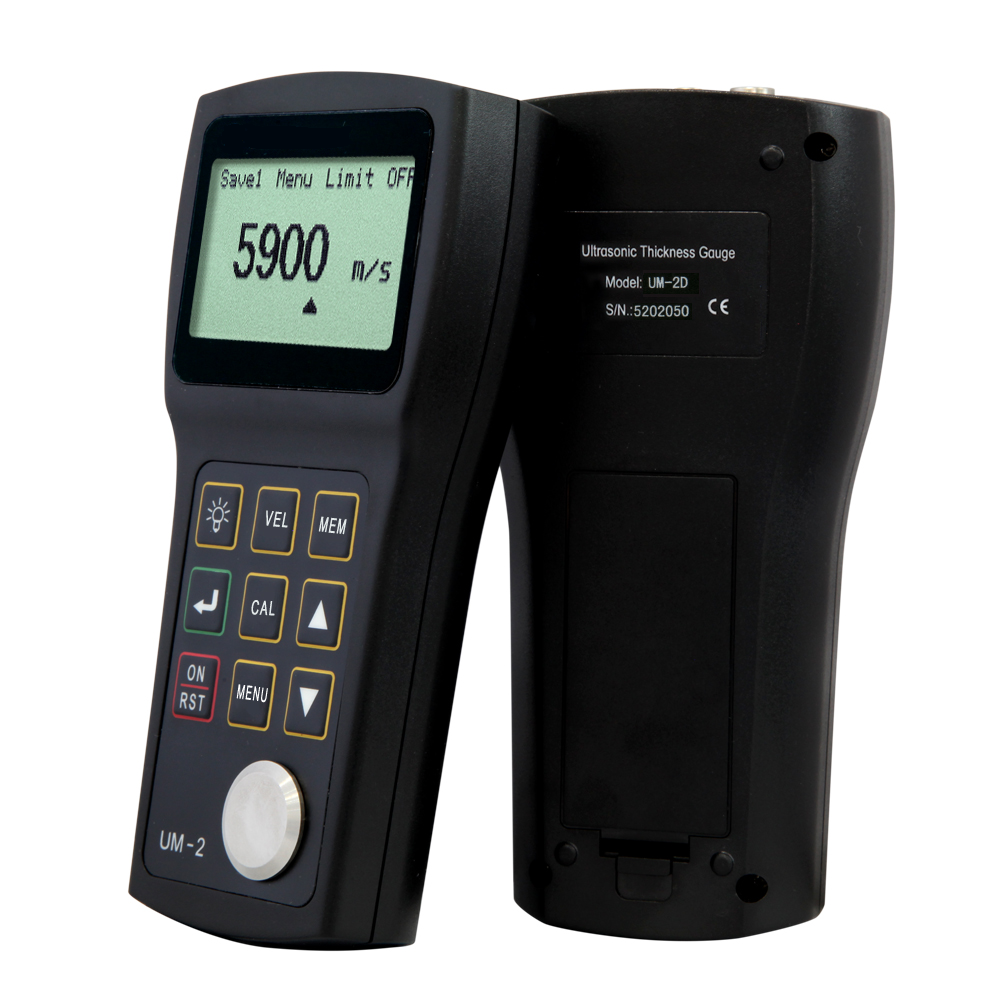

UM-2D High Resolution (0.01mm) Ultrasonic Thickness gauge with Echo-Echo mode for thru coating measurement.

The UM-2D is similar to the UM-1D with a specific dual echo mode. In this mode a paint layer or coating is ignored and the substrate metal measured accurately. It can be used for measuring different materials between 3mm and 20mm thicknesses.

In addition, the UM-2D has a higher resolution display providing the user with measurements to 0.01mm with increased accuracy to ±0.05mm. And the UM-2D also multiple probe recognition so users can install other, optional transducers to extend the testing capability.



UM-2D FEATURES:

  • 0.01mm / 0.001" Resolution
  • 500 Record memory storage
  • High / Low Alarm Mode
  • Minimum Capture
  • Two-point Calibration
  • V-Path Correction
  • Thru Paint Mode





SPECIFICATIONS:

 Measurement Range

Standard Mode: 0.8mm to 300mm (steel)

Thru Coating Mode: 3mm to 20mm

Measurement Mode

P-E (pulse-echo)

E-E (echo-echo) with dual-crystal probes

 Display Units mm or inch
 Sound Velocity Range  1000 to 9999 m/s
 Display Resolution 0.01mm / 0.001"
 Accuracy

±0.05mm (up to 10mm)

±0.5%H +0.1 mm (>10mm)

 Calibration Mode Zero, 2-point
 Memory  500 readings in 5 files max.
 Display Type  128×64 dot-matrix LCD screen with EL backlight

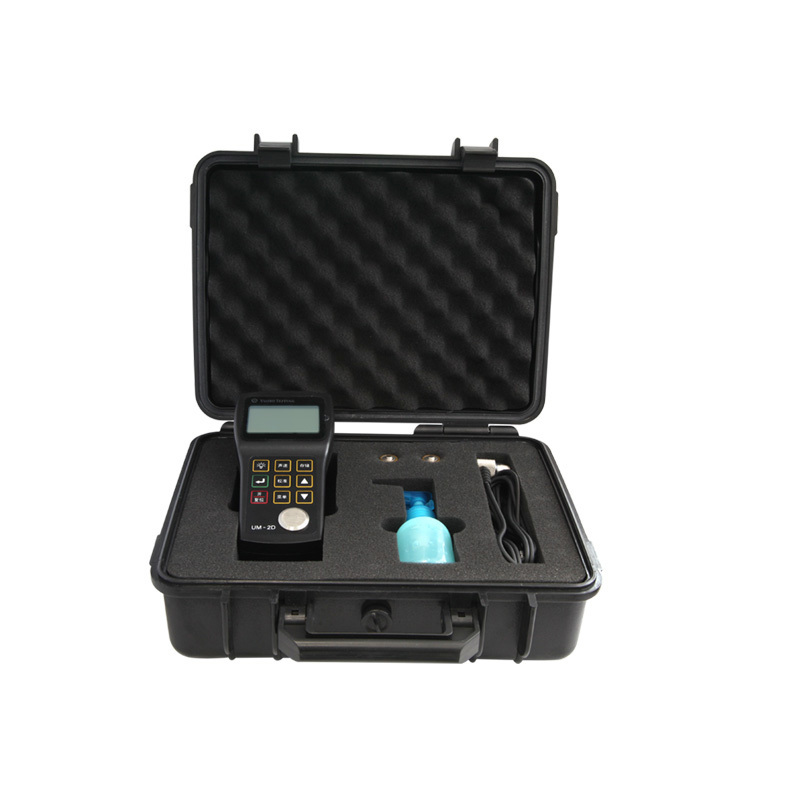

Standard delivery includes: UM-2 Ultrasonic Thickness Gauge, 5MHz Transducer (probe), Padded Carry Case, User Operating Manual, Factory Certificate, Packing List

(um-2d)

• Thru-coating measurement mode
• High resolution 0.1mm
• Measurement Range: 0.8mm to 300mm*

SKU um-2d
Shipping Weight 1.2000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.240m
Shipping Cubic 0.010800000m3
