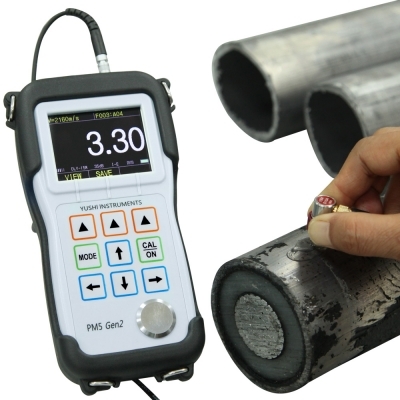

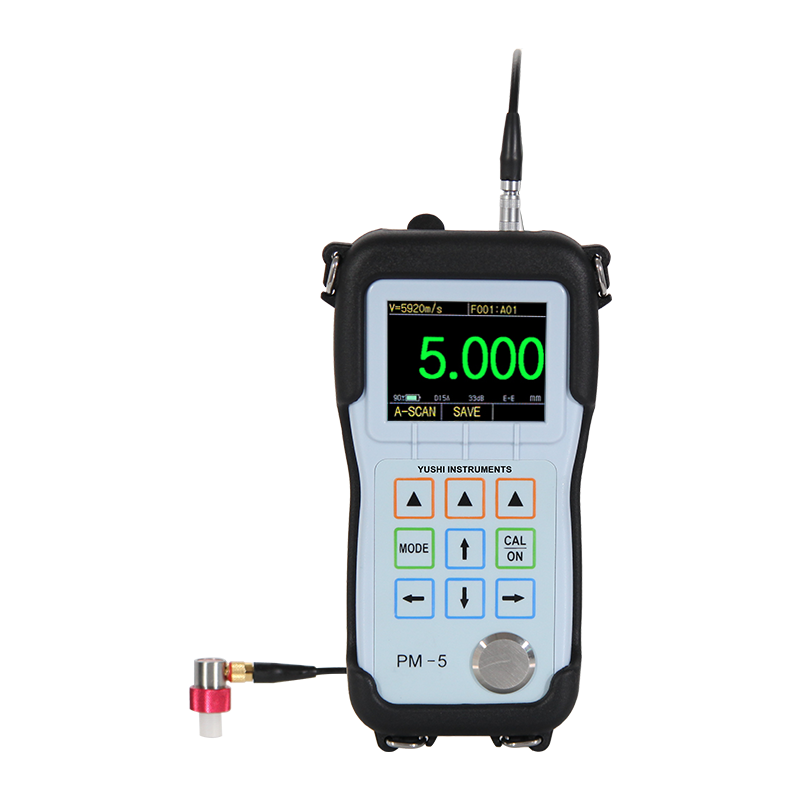

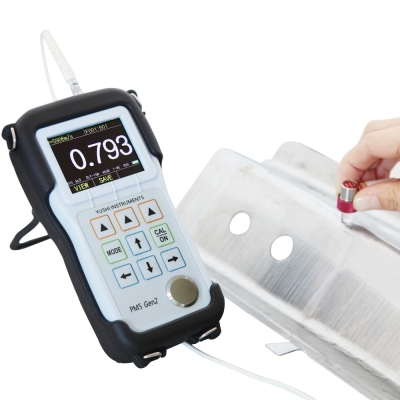

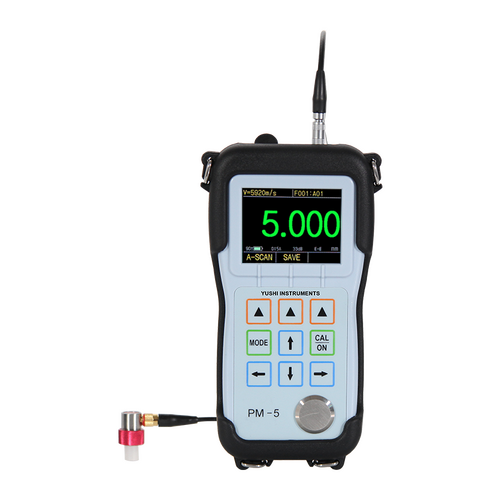

The PM-5 Gen 2 series is a high precision and multifunction ultrasonic thickness gauge with live time A-Scan and time based B-scan display for flaw detection.

All data is presented clearly thanks to the high resolution 2.4" Color OLED display.

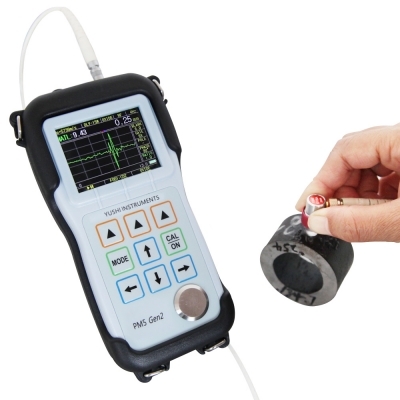

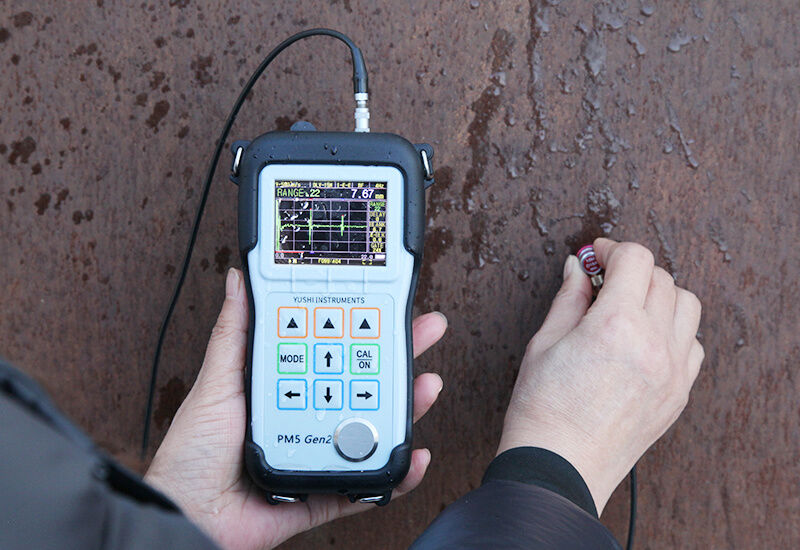

The live A-scan and time-based B-scan waveform allows the user to not only view and analyse the waveform, but you can also adjust the gain, blanking and gate for correctness of measured result and flaw detection to identify any problem areas such as wear, or corrosion build up etc.

PM5 also features multiple advanced measuring modes allowing measurement of the most difficult materials and parts. PM5 can be used with many different transducer types such as delay-line, contact, immersion and high temperature to measure in any environment.

It has a large capacity data logger and extensive DataView software making it suitable for use in industrial fields such as manufacturing and metal processing, etc.



Please contact us for pricing and more details.



FEATURES:

  • 0.001mm Resolution
  • Measure down to 0.15mm
  • IP67 dustproof & waterproof
  • Adjustable gain, blank, gate and range, etc.
  • Mutiple echo verification mode
  • Large onboard memory
  • Automatic V-Path Correction
  • A & B-scan waveform analysis
  • Thru Paint Function



SPECIFICATIONS:

 Measurement Range

Standard Mode: 0.15mm to 30mm (D15A probe, steel)

0.01mm to 38 mtr (*optional probes)

Measurement Mode

Multiple (based on connected transducer)

 Display Units mm or inch
 Sound Velocity Range  310 to 18,699 m/s
 Display Resolution up to 0.001mm
 Accuracy

±0.01mm (up to 3mm)

±0.05mm (3mm~10mm)

±0.5%H+0.01 mm (>10mm)

 Calibration Mode Zero, 1-point, 2-point, velocity
 Memory  100,000 readings
 Display Type  2.4" 320×240 OLED

YUSHI NDT ULTRASONIC THICKNESS MEASUREMENT TESTERYUSHI ULTRASONIC THICKNESS GAUGE

Measure Rubber Thickness

Measure Inner Wall Oxide Thickness

(pm5)

SKU pm5
Shipping Weight 1.5000kg
Shipping Width 0.300m
Shipping Height 0.150m
Shipping Length 0.240m
Shipping Cubic 0.010800000m3
