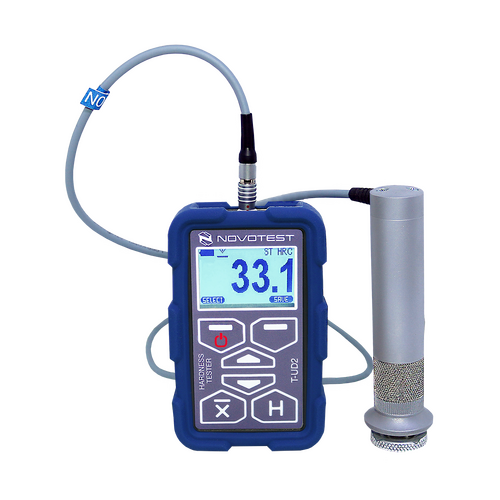

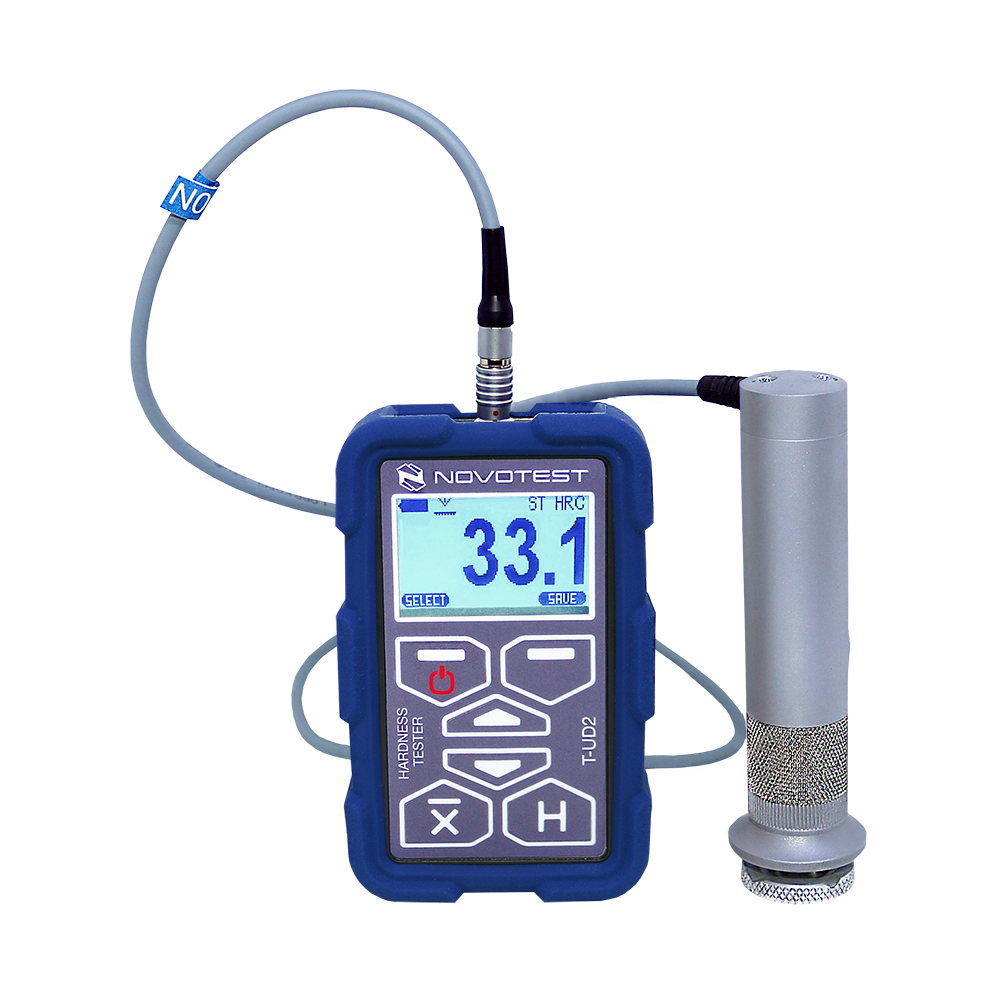

The NOVOTEST T-U2 is an Ultrasonic Contact Impedance (UCI) Metal Hardness Tester which can be paired with various probe options to measure samples as small as 1mm and as light as 10 grams.

The UCI method is also a great way to minimize material destruction. After completion of a test, the UCI method leaves a miniscule indent which helps to maintain the original properties and structure of the material. This hardness tester is specifically designed for products of complex shape and hard-to-reach places.

Some common examples of tested products using this method include: Gear Teeth, Bearings, Welds, HAZ, Grooves, Knives and Heat-Treated / Hardened Metals.

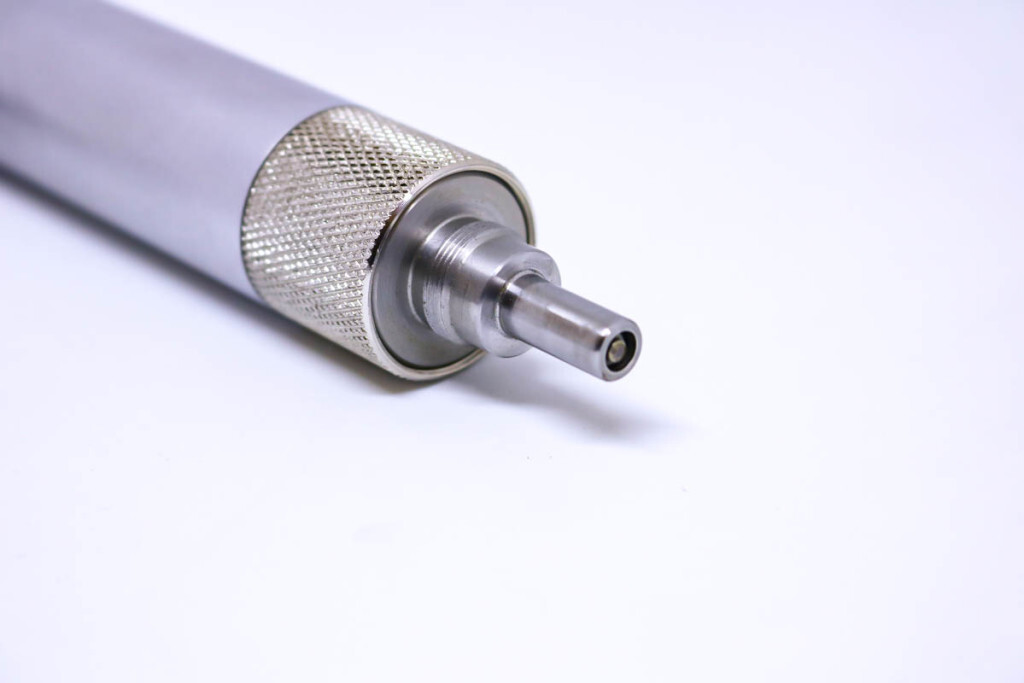

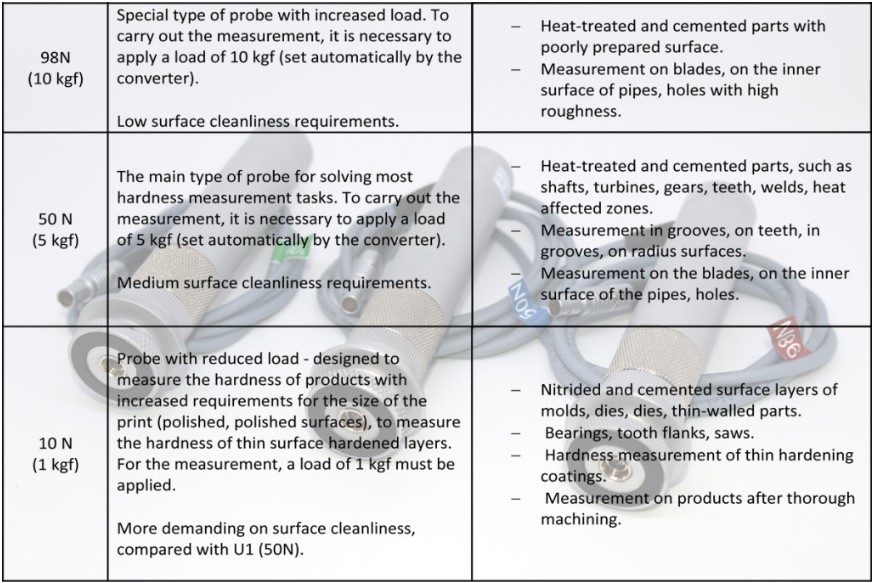

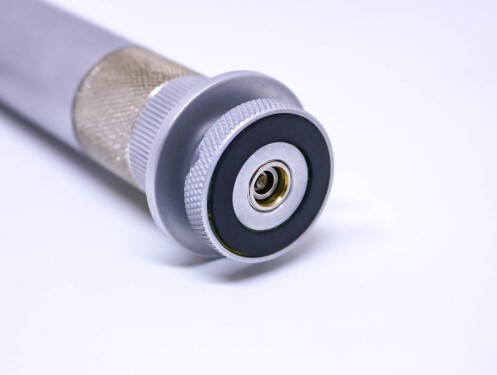

PROBE OPTIONS:



FEATURES:

  • Wide Measuring Range
  • Free Comprehensive Downloadable Software
  • Auto Scale Conversion
  • Shock-Proof Case
  • Minimal Destruction
  • Simple Functionality
  • Large LCD Display
  • 256 Reading Internal Memory



SPECIFICATIONS:

Hardness Scales   HRC, HB, HV, HRB, MPa
Measuring Range

HV: 370 ~ 1740

HRC: 20 ~ 70

HB: 90 ~ 650

Tensile strength, MPa: 370 ~ 1740

Accuracy

±15HV

±2HRC

±10HB

Data Storage  256 sets data
Power Supply 2 x AA Batteries







(T-U2)

SKU T-U2
