The TIME 3221 is an advanced surface roughness gauge that is a comprehensive testing device. It is designed to allow testing of most test samples and surfaces - especially difficult to access and intricate shape work pieces.

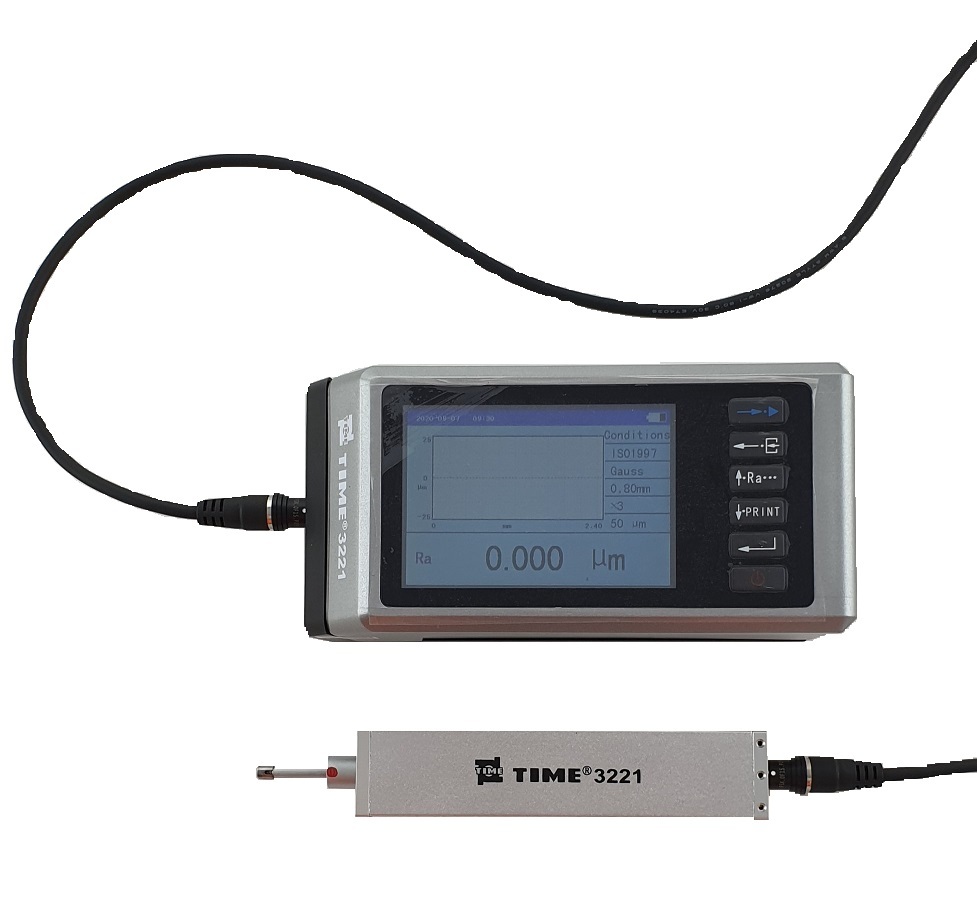

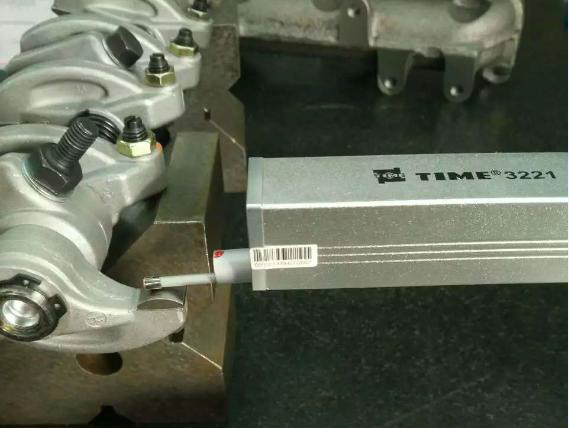

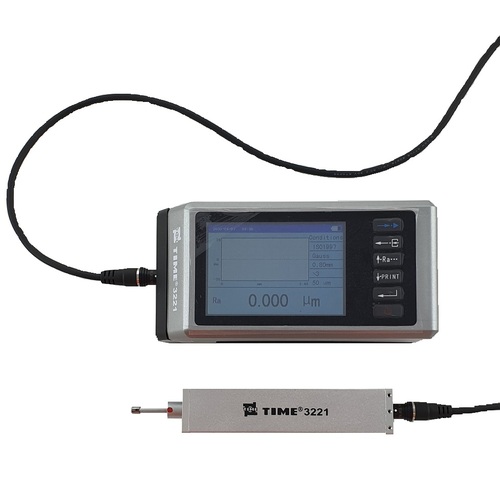

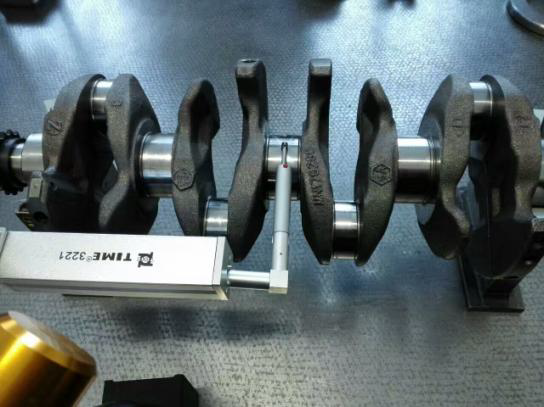

A separate stylus housing connected by a long fly-lead, allows for measuring the roughness of inside or outside bores on small diameter pipe or tube, stepped gears, o-ring grooves and recessed notches.  Industry examples include measuring roughness of cylinder heads, engine block bore hone or brake discs in Automotive OEM; checking finish of rail track after refurbishment and machined finish on oil & gas pipe line flange faces to ensure correct fit and seal.

The TIME3221 uses a diamond-tipped inductive stylus that accurately traces the surface of the material by measuring the vertical deviations from a uniform centre line. It is able to display the results and convert test data into many parameters including Ra, Rz, Rq, Rp, Rv, Rsk, Rmr to name a few.

The results are displayed on the large, high resolution colour LCD, including the waveform trace of the surface. Test results can be saved to internal memory and managed with the TimeSurf Windows software which is an optional extra add-on.



FEATURES:

  • Colour TFT LCD Touch Screen
  • USB and RS-232 data
  • Wide measuring range ±400µm
  • Advanced roughness parameters
  • High accuracy inductance pick up (stylus)
  • Separate stylus housing and fly lead for accessibility

Magnetic stand included to mount drive unit and assist with stylus positioning for precise measurement

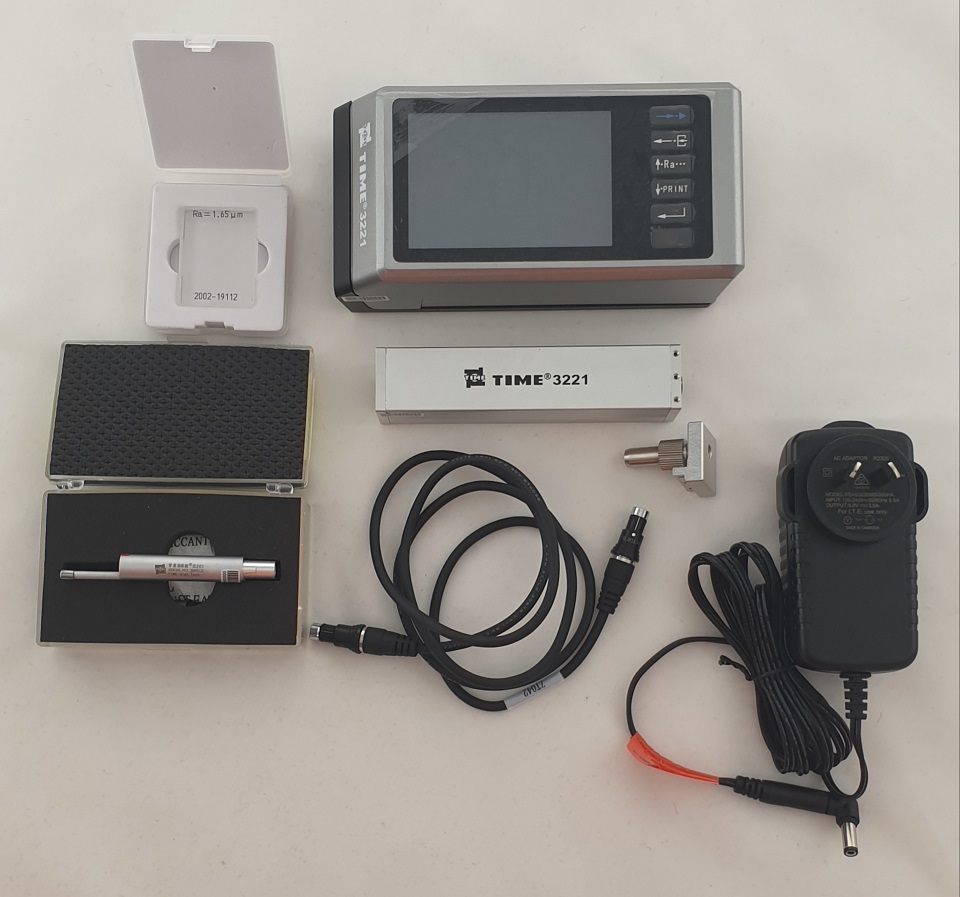

Standard kit includes:
  • The main display unit
  • S201 stylus and motor drive unit
  • Magnetic stand
  • Mains charger
  • Calibration certificate
  • Ra calibration specimen and specimen holder

There is also a range of optional styluses that can be purchased separately to enable testing on almost any surface even curved, recessed or small pin hole - see below for details.

And for further assistance please contact us.


SPECIFICATIONS:

Maximum Travel 17.5mm
Indicating Error ±10%
Accuracy ±6%
Measured Profile Roughness, Waviness, Contour
Parameter Ra (0.005µm-16µm) Rz (0.02µm-160µm)
Paramater Rq, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rsu, Rsm,Rmr, Rx
Filter RC, PC-RC, Gauss, ISO13565
Sampling Length "L" 0.08mm, 0.25mm, 0.8mm, 2.5mm
Evaluation Length (1-5)L
Interface USB
Power Built in rechargeable battery
Detection Principle Current induction
Stylus Force 4mN (0.4gf)
Stylus Angle 90°
Calibration Template  included

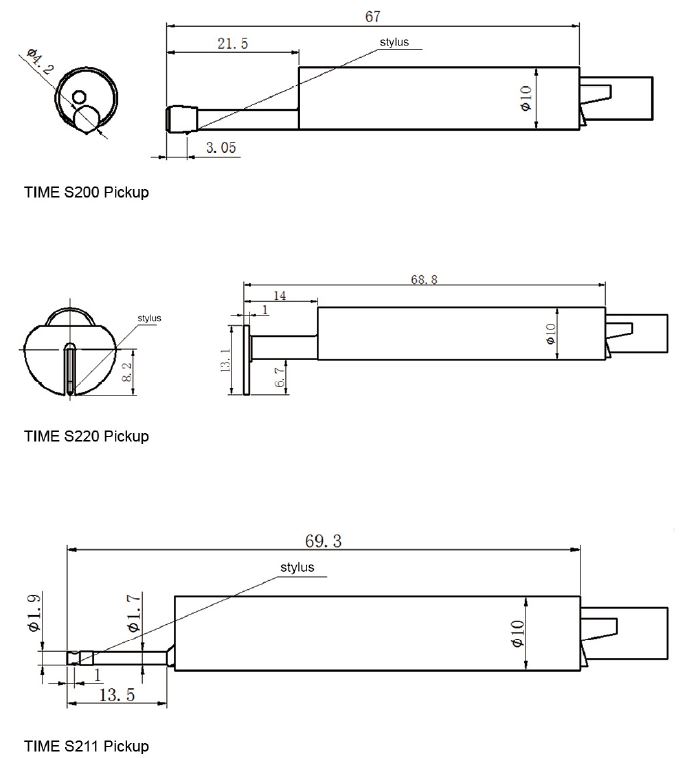

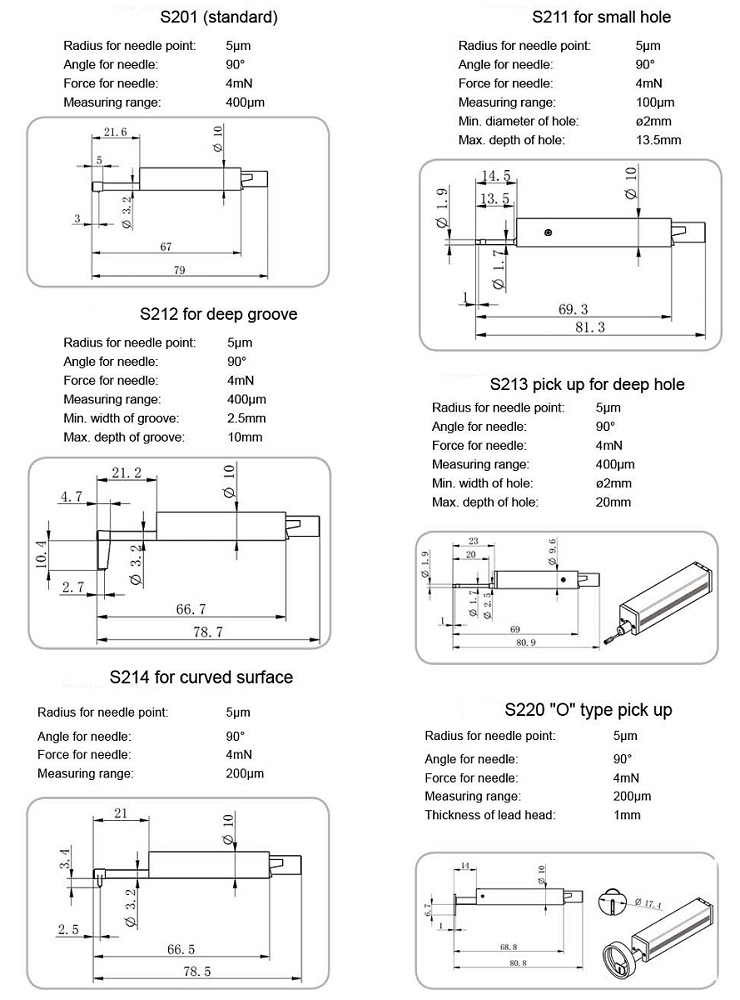

OPTIONAL STYLUSES:
