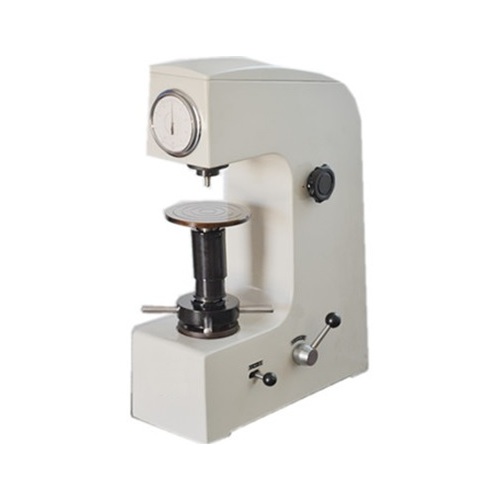

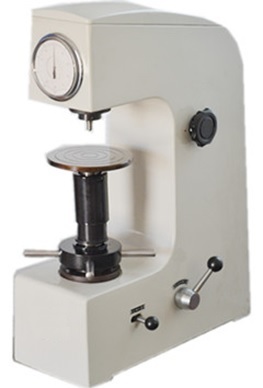

TH-500 Manual Rockwell Hardness Tester, bench mounted with analogue dial indicator.

Used for determining the hardness of ferrous and non-ferrous metals such as hard alloy, carbon steel, alloy steel, cast iron. Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminium alloy, copper alloy, bearing steel etc.

It is a popular instrument to measure the Rockwell hardness of the materials. No need for a power supply; the speed of the test force loading is regulated by the hydraulic piston and the test force is regulated by the load-change hand wheel. It has easy operation and stable performance applicable for use in factories, research laboratories and schools, colleges etc.



TEST RANGE:

Scale

Penetrator

Total Test Force

N(kgf)

Measuring Range

B

Φ1.5888mm steel ball

980.7(100)

HRB  20-100

C

120° diamond

1471(150)

HRC  20-70

A

120° diamond

588.4(60)

HRA  20-88



Rockwell Scale A: Used for measuring the metals, the hardness of which is over HRC 70 (such as tungsten carbide alloy, etc.) and also for measuring hard sheet materials and surface quenched materials.

Rockwell Scale C: Used for measuring the hardness of heat treated steel parts.

Rockwell Scale B: Used for measuring softer or middle hard metals and unquenched steel parts.


SPECIFICATION:

Preliminary Test Force 98.07N (10kgf)
Total Test Force 588.4N (60kgf); 980.7N (100kgf); 1471N (150kgf)
Graduation of Indicator C: 0 to 100; B: 30 to 30
Max. Height of Specimen 170mm
Throat Depth 135mm
Overall Dimensions 466 x 238 x 630mm
Net Weight 65 Kg



(TH-500)

SKU TH-500
Brand Time
Shipping Weight 70.0000kg
Shipping Width 0.400m
Shipping Height 0.800m
Shipping Length 0.600m
Shipping Cubic 0.192000000m3
