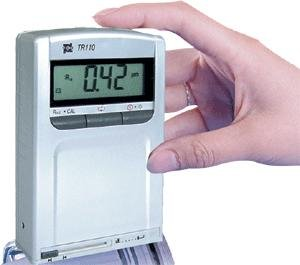

The TIME 3110 Surface Roughness Gauge is designed for users that require a basic Profilometer gauge to produce Ra and Rz roughness values in various mechanical and industrial applications.

It is suitable for most materials, and applicable for flat, outer cylinder and sloping surface

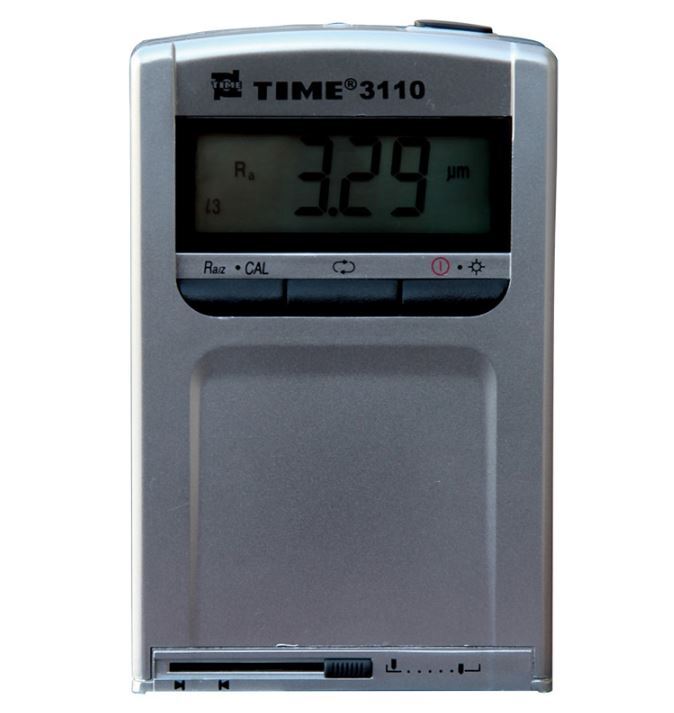

This gauge features an easy to read backlit LCD display allowing users to view result from any angle. The case provides durability and the size is compact for portability.  TIME 3110 features an integral probe that drops down from underneath the unit, making it most suitable for large, flat surfaces or wide curves where there is ample space to position the device stably.

The unit is easy to operate and can be calibrated using the included reference specimen. The sensitive probe traces the surface and converts the measurements into Ra or Rz.  The measuring range for Ra is 0.05µm - 10.0µm and Rz is 0.1µm - 50µm.

Ideal for basic roughness testing.

For further assistance please contact us



FEATURES:

• Compact, Easy to use
• DSP chip for hi-speed data processing
• Backlit LCD screen
• Built in rechargeable battery
• Automatic shutdown and power saving function


Standard Kit includes the main unit, a calibration specimen and support plate, manufacturers calibration certificate, USB charging cable and mains power adapter.


SPECIFICATIONS:

Maximum Travel 6mm
Accuracy ±15%
Parameter Ra (0.05µm-10µm)  Rz (0.1µm-50µm)
Sampling Length "L" 0.25mm, 0.8mm, 2.5mm
Evaluation Length 1.25mm, 4mm, 5mm
Dimensions 110mm x 70mm x 24mm
Weight 160 gm












(TIME3110)

SKU TIME3110
Brand Time
