A range of optional styluses to suit both TIME3221 and RTD-210 Series portable surface roughness meter.

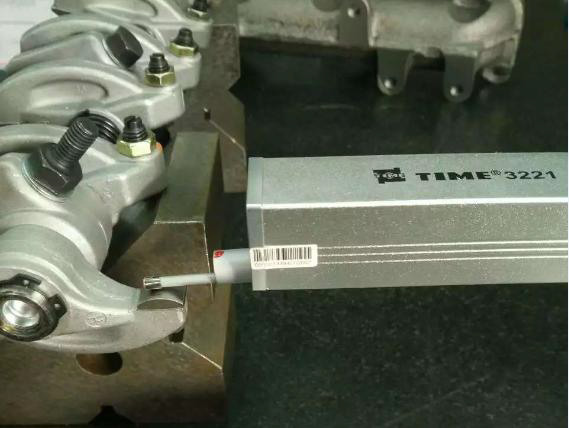

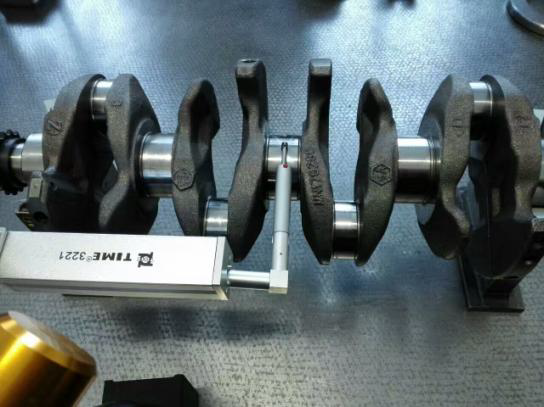

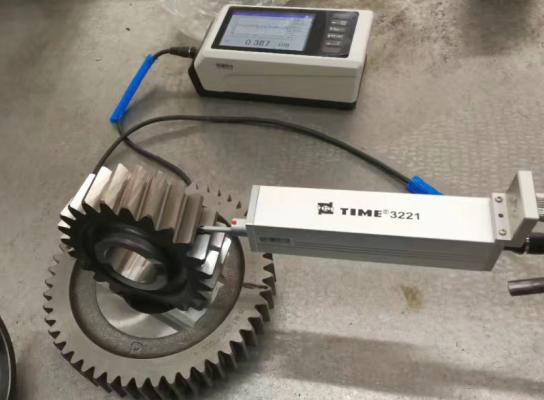

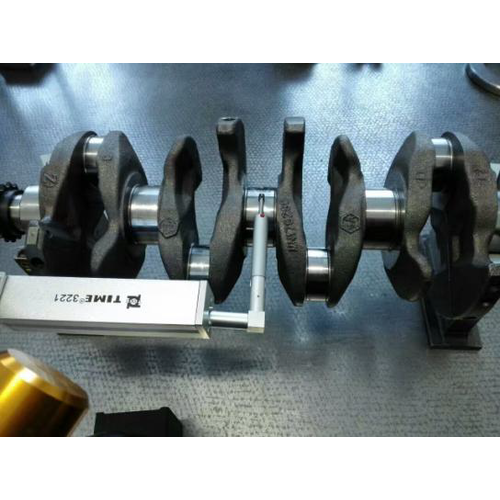

Optional styluses can allow you to increase the measuring capability of your advanced, separate drive-type roughness tester by facilitating access into difficult shapes and hard to reach places including small holes, deep groove, curved surfaces and more.

Please contact us for pricing and availability.



S201 (standard)
Radius for needle point: 5μm
Angle for needle:  90°
Force for needle:  4mN
Measuring range:  400μm





S212 for deep groove
Radius for needle point:  5μm
Angle for needle:  90°
Force for needle:  4mN
Measuring range:  400μm
Min. width of groove:  2.5mm
Max. depth of groove:  10mm





S214 for curved surface
Radius for needle point: 5μm
Angle for needle:  90°
Force for needle:  4mN
Measuring range:  200μm





S211 for small hole
Radius for needle point:  5μm
Angle for needle:  90°
Force for needle:  4mN
Measuring range:  100μm
Min. diameter of hole:  ø2mm
Max. depth of hole: 13.5mm





S213 pick up for deep hole
Radius for needle point:  5μm
Angle for needle:  90°
Force for needle:  4mN
Measuring range:  400μm
Min. width of hole:  ø2mm
Max. depth of hole:  20mm





S220 "O" type pick up
Radius for needle point:  5μm
Angle for needle:  90°
Force for needle:  4mN
Measuring range:  200μm
Thickness of lead head:  1mm

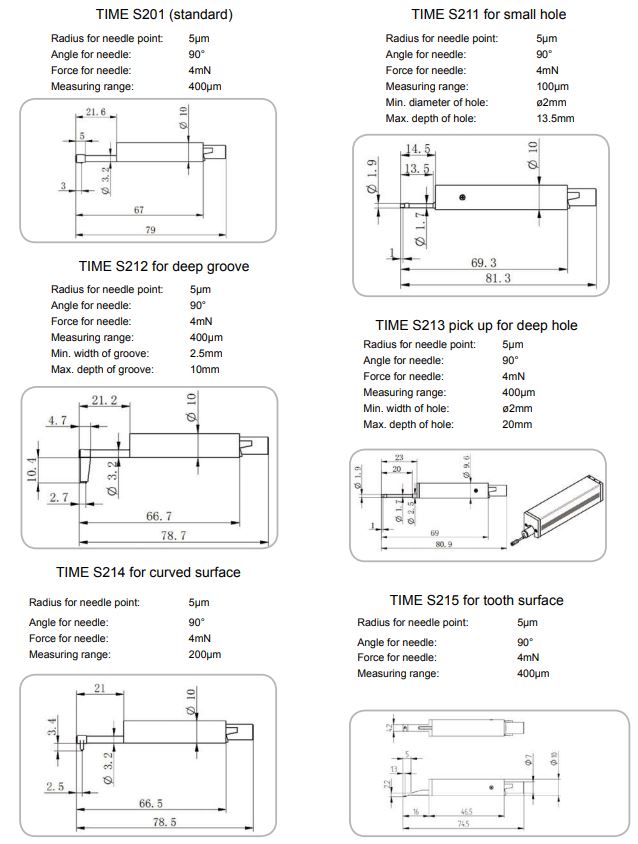

DIMENSIONS:

(Stylus-TIME-3221-Series)

SKU Stylus-TIME-3221-Series
Brand Time
