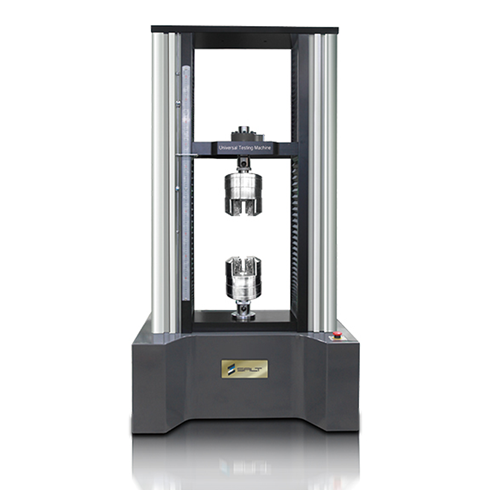

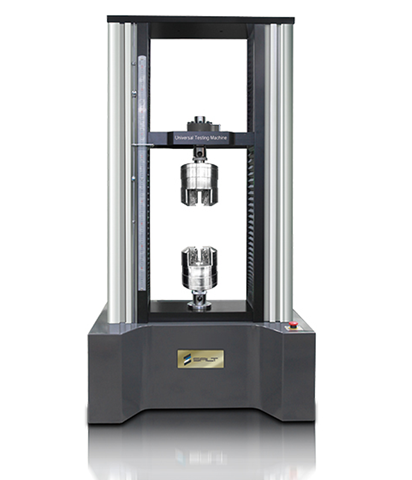

Dual column frame ST-1002 series Electric servo motor driven Universal Test Machine with capacity options from 30kN to 300kN .

The ST-1002 Series Electrical UTM's are equipped with industry leading parts such as Mitsubishi Servo Motors and Drivers (Japan) and Motorvario Worm Gear Reducers (Italy). Precision balls screws and bearings are used to minimize backlash and improved accuracy in position and speed as well as control in applied force.

Salts UTM's are controlled by our intuitive Touch Screen Indicator. With load cell resolution at 1/300,000 and displacement reading down to 0.001mm. Closed loop controller for a fully independent system.

Exclusive software enables the testing, data acquisition, test data management and analysis. Test methods include: Tensile, Compression, flexural / Bending, Cyclic, Shear etc. The software can be modified to meet any standard (ISO, ASTM, KS, JIS etc.) for any measurement possible with our UTMs after consultation. Analysis of the software include measurements of stress/force, strain/displacement, time and calculates the modulus, yield point, elongation % etc.

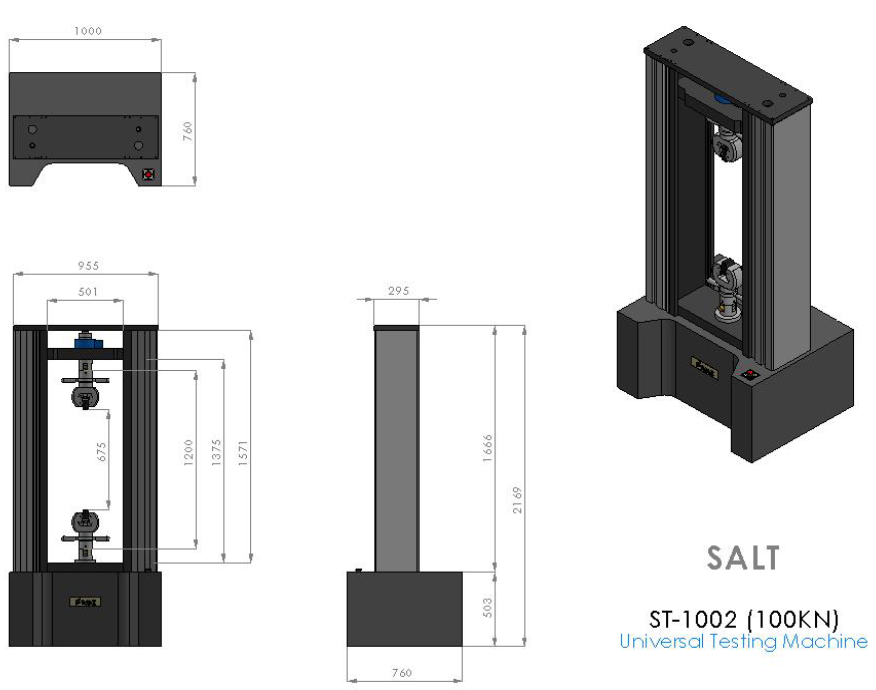

DIMENSIONS:

(ST-1002)

SKU ST-1002
Brand Salt Co., Ltd.
