Cedar DI-12 series is a digital Slip Torque Tester for the checking of "the torque value of the screw actually tightened".

It is available in 3 models of either 200 mN-m, 4 N-m or 15 N-m.

Measure how much force a screw has already been tightened.
Enable to measure the torque value of tightened screw by grasping the occurrence of slippage accurately and measuring the torque.
For sample inspection and the setting & management of Output Torque of a power driver.



FEATURES:

  • Smooth tightening work with motor drive
  • Unnecessary to be tighten again by automatic stop function after determination
  • Measure torque value of tightened screw
  • Create torque curve (measurement of break torque, limit torque, yield point torque, etc.
  • Selectable units: mN-m, N-m, kgf-cm, lbf-in
  • 3  measurement modes
  • (peak, track, judging)
  • Programmable High and  Low set points (for go/no-go testing)
  • Clockwise and anti-clockwise operation
  • Made in Japan

SPECIFICATIONS:

  • Accuracy : ± 0.5% F.S. ±1
  • (200 or less digit ±1digit)


TORQUE RANGES:

Model Capacity Bit / Socket Size Accuracy

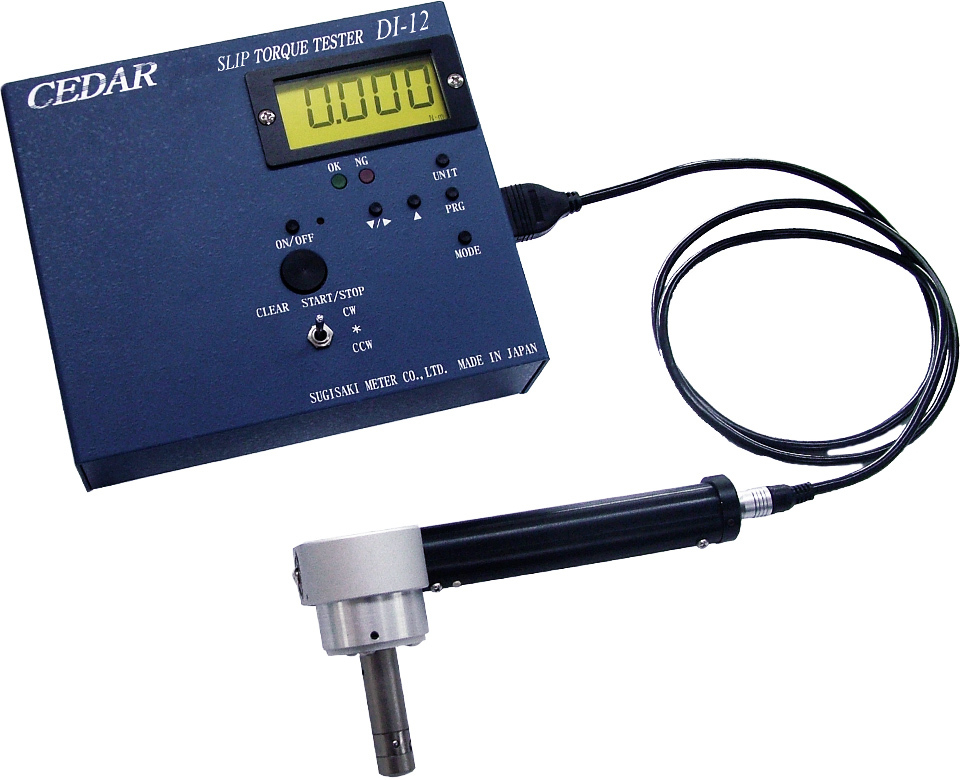

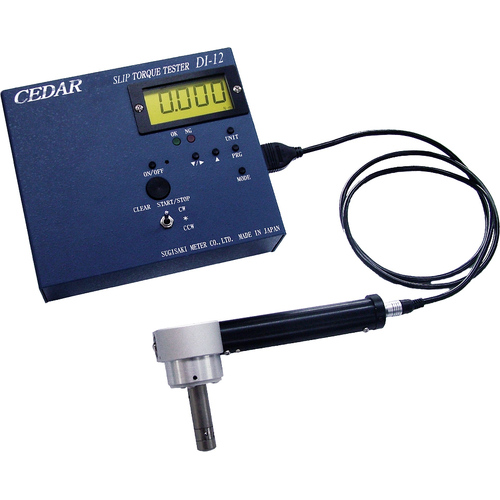

DI-12-SL4
  • 0.030～4 N-m
  • 0.20 - 40 kgf-cm
  • 0.20 - 35 lbf-in
 HEX6.35 ±1% (500 or less digit±5digit)

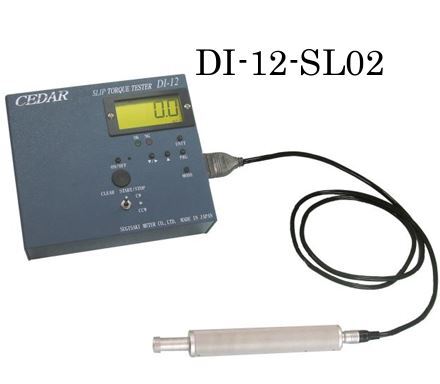

DI-12-SL02
  • 1.5～200.0 mN-m
  • 0.015～2 kgf-cm
  • 0.015～1.74  lbf-in
 φ4 ±0.5% (200 or less digit±1digit)

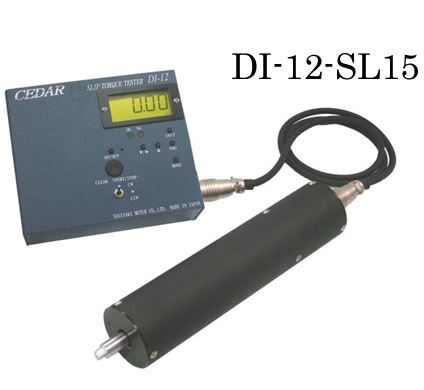

DI-12-SL15
  • 0.030～15 N-m
  • 3.0 - 150 kgf-cm
  • 3.0 - 130 lbf-in
 6.35sq





(DI-12)

SKU DI-12
Brand CEDAR
