Brand New Upgraded model for 2022.

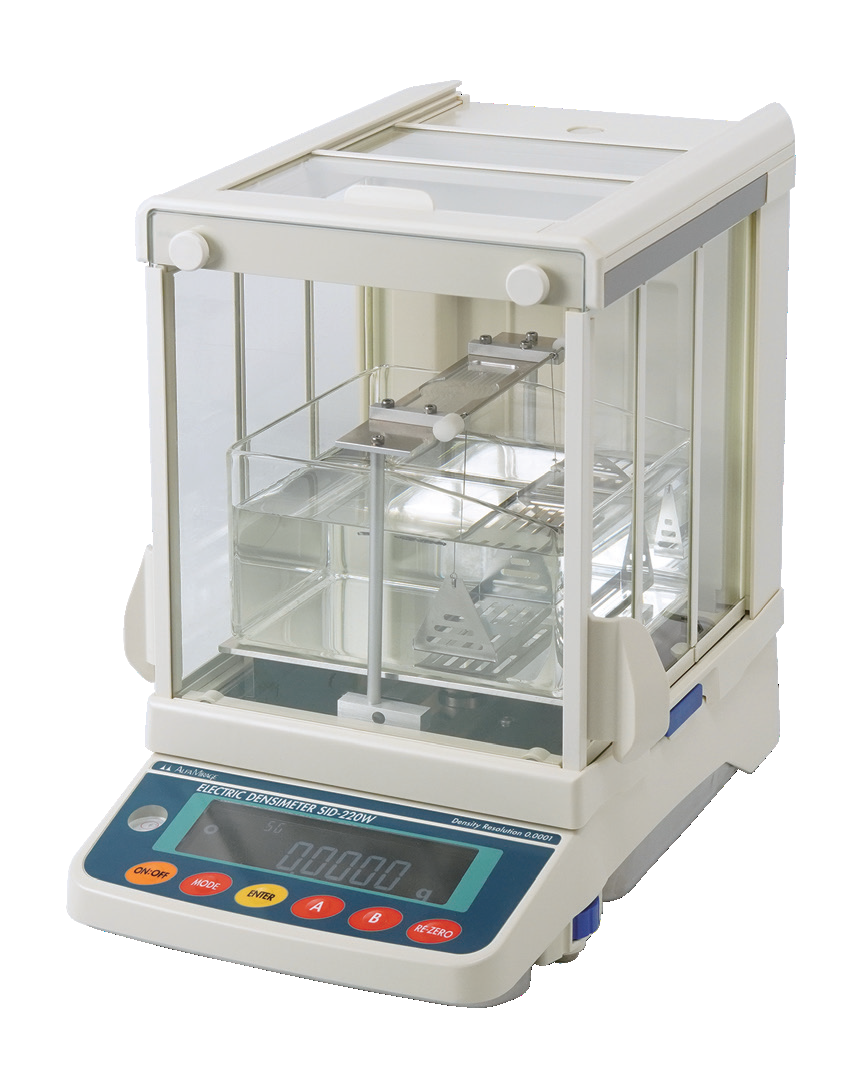

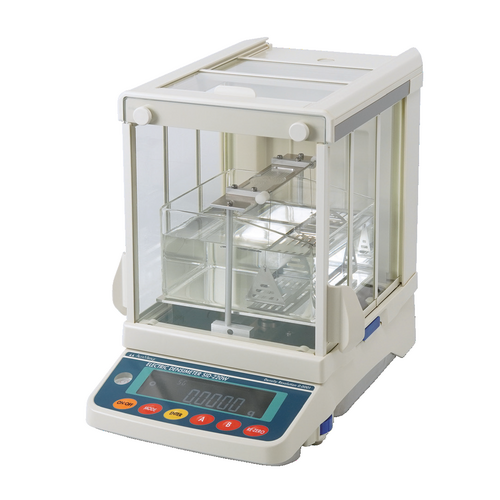

A super high precision electronic Densimeter from Alfa Mirage Japan. The SID-220W has a display resolution of 0.0001g/cm³ and is capable of measuring liquids and readily floating solids such as urethane, rubber, sponge and wood.

In solid mode the SID-220W is capable of measuring volume variation factor, indicating errors for the measured value and compensating water temperature for the measurement of specific gravity. For liquid mode a sample of 50cc is required and indications available are weight in air, weight in water, value of specific gravity and volume.



FEATURES:

  • Selectable from Manual-enter or Auto-enter function
  • 0.1℃ increments temperature compensation of water density and specific gravity
  • RS232C and USB port equipped
  • Measuring time can be set from 3 seconds to 30 seconds
  • Sample size up to 45 x 20 x 15 mm



SPECIFICATIONS:

  • Resolution: 0.0001gram/cm³
  • Capacity: 0.0001 - 220 grams
  • Conforms to Pycnometer and Hydrostatic method
  • JIS K6268A
  • former JIS K6350 (Rubber)
  • JIS K7112 (Plastic)
  • ASTM D297-93-16 (Rubber)
  • ASTM D792-00 (Plastic)
  • Dimensions: 260 x 360 x 325 mm
  • Weight: 7 Kg approx.

OPTIONAL PARTS:

  • Printer
  • Liquid gravity kit (required for liquids)
  • RS232C Interface
  • ISO related certification and traceability documents

Please contact us for pricing and availability.







(SID-220W)

SKU SID-220W
Brand Alfa Mirage
