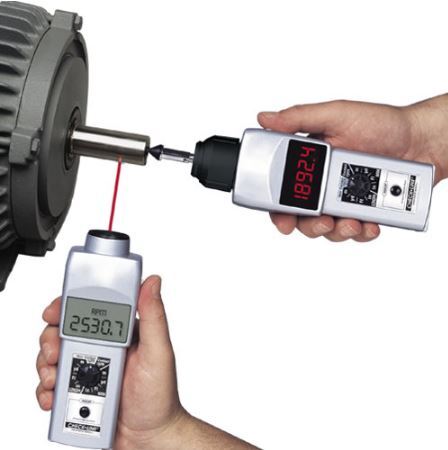

Contact type Tachometer from Nidec Shimpo Instruments is designed to measure surface speed, distance and revolutions.  It has a wide speed range, large memory and a C-MOS microprocessor for high reliability and low maintenance.

Featuring the same rugged, high quality components that have made them the benchmark in the industry. These user-friendly, value-packed units feature memory storage; quick adjustment unit’s knob; length functions; retrieval of last, maximum and minimum values; plus each unit comes standard with an N.I.S.T. certificate.

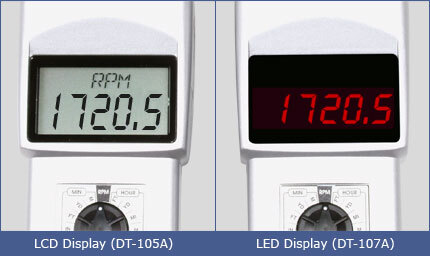

Units are available with an LCD or vibrant red LED display.

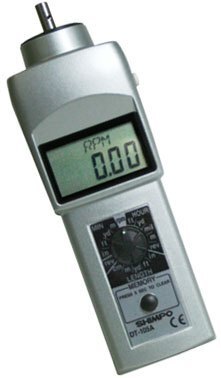

  • Model DT-105A with an LCD screen

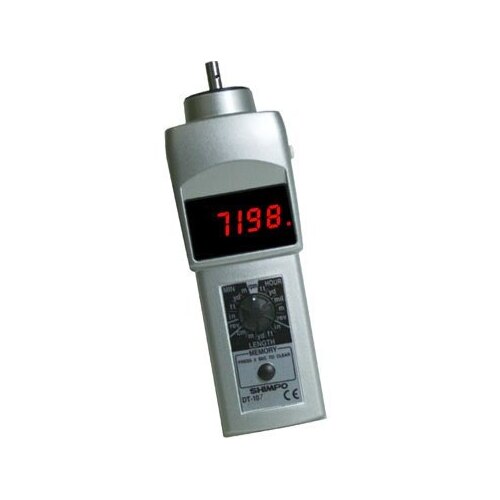

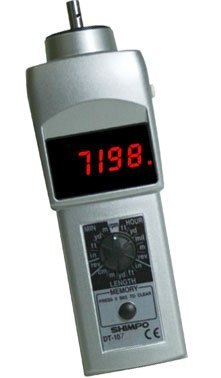

  • Model DT-107A with an LED screen

Also available with optional, larger 12" circumference wheels





SPECIFICATIONS:

DISPLAY RANGE 0.10 ~ 25,000rpm with floating decimal
ACCURACY RPM ±0.06 (0.1-999.99) : ±0.6 (1000-9999.9) : ±0.006%±1digit (10000-25000)
MEASURING UNITS Revolutions: RPM, RPH, YPM, mPM, fPM, IPM and Yrd,m,Ft,In
SYSTEM CONTROL Single chip C-MOS microprocessor



(DT-105A_DT-107A)

SKU DT-105A_DT-107A
Brand Shimpo
