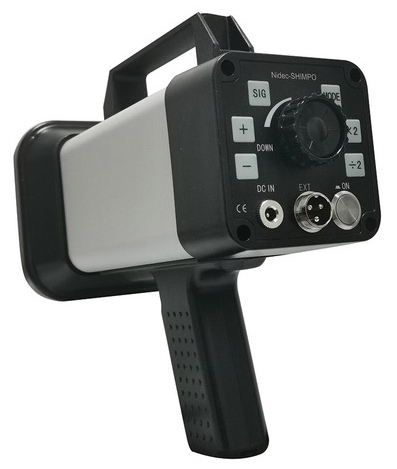

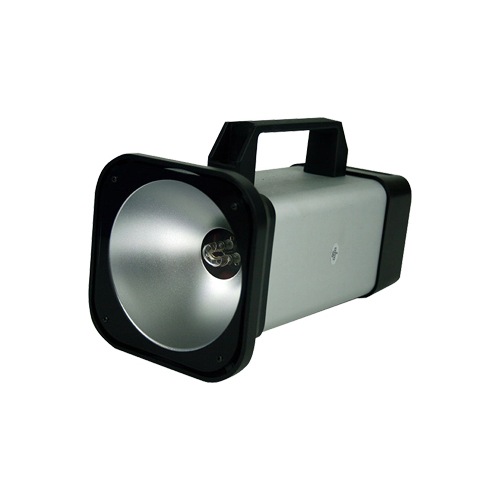

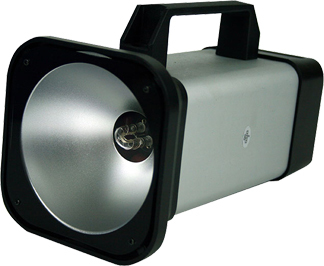

The Nidec Shimpo DT-735 is  a portable,  highly stable,  industrial-quality stroboscope  for  non-contact  inspection  and observation  of moving parts  by providing  the user the illusion of stopped or slowed down equipment movement.

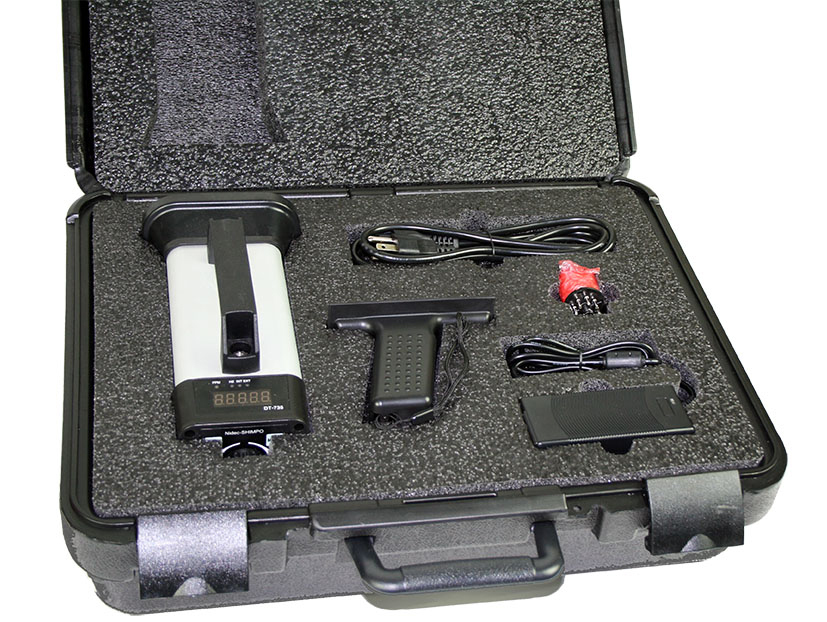

The DT-735 is constructed with a rugged, metal casing designed to withstand  harsh industrial  usage.  The internal , rechargeable battery and included handles aid in portability and usage flexibility.



SPECIFICATIONS:

MODEL DT-735

DISPLAY RANGE

60 ~ 12,000 fpm (flashes per minute)
ACCURACY RPM ±0.01% of reading
FLASH TUBE Xenon, 45W max
BATTERY Ni-MH (up to 2 Hrs life)
POWER SUPPLY 230VAC

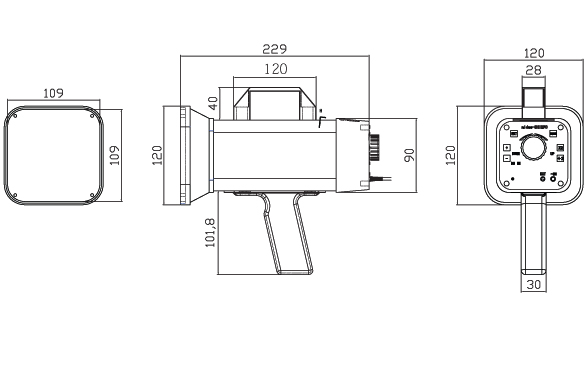

DIMENSIONS

(DT-735)

SKU DT-735
Brand Shimpo
Shipping Weight 1.8600kg
Shipping Width 0.250m
Shipping Height 0.120m
Shipping Length 0.120m
Shipping Cubic 0.003600000m3
