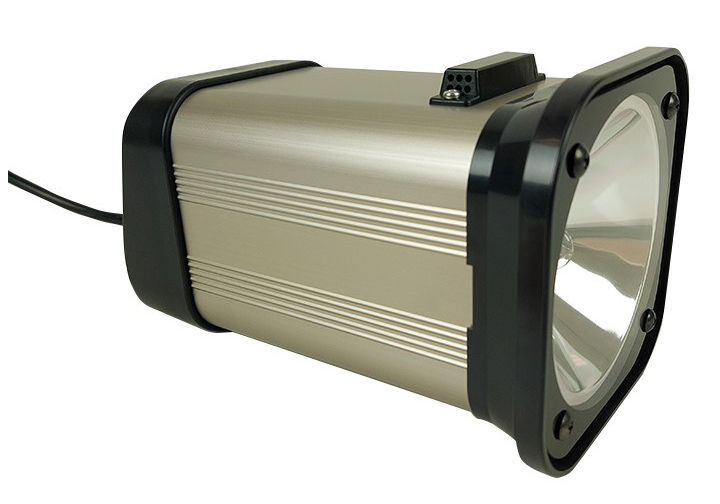

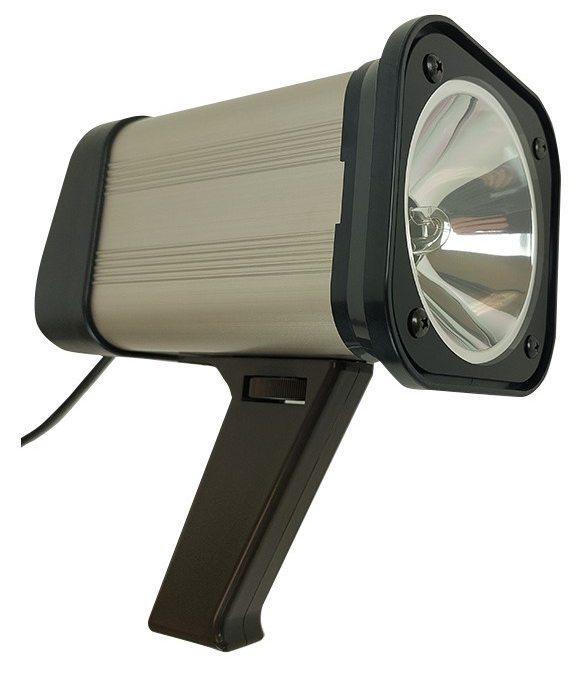

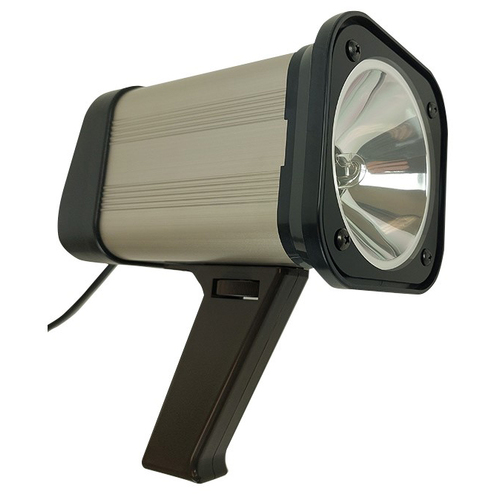

The Shimpo DT-3011N heavy duty, AC powered stroboscope provides the illusion of “stopped motion”.

By adjusting the flash rate, systems in motion appear to be standing still or in slow motion.

These strobes can measure rotational (RPM) or reciprocating (strokes per minute) speeds with the same precision as an electronic digital tachometer. Ideally suited for printing inspection, motion analysis, preventive maintenance, and speed measurement of repetitive motion, DT-3011N strobes provide timely data on vibrating parts, leaks, spray patterns and a variety of industrial and scientific operations.

The DT-3011N stroboscope is extremely easy to maneuver and operate via its lightweight, compact design combined with a simplified user interface. Its rugged metal construction provides unequaled reliability in the harshest environments.

Model DT-3011N
Flashing Range 30.0 - 35,000 fpm (flashes per minute)
Accuracy ±0.05 % of reading
Resolution 30.0 to 5000.0 : 0.1 fpm; 5001.0 to 8000.0 to 0.2 fpm; 8001.0 to 10000.0 : 0.5 fpm; 10001.0 to
35000.0 : 1.0 fpm
Lux Rating 8" (20 cm) Distance = 1950 lx @ 1500 fpm, 2000 lx @ 6000 fpm with 8" (203 mm) irradiation
diameter.
20" (50 cm) Distance = 725 lx @ 1500 fpm, 850 lx @ 6000 fpm with 12" (305 mm) irradiation
diameter.
Lamp Lifetime Typ.1200 hours at 1500 fpm

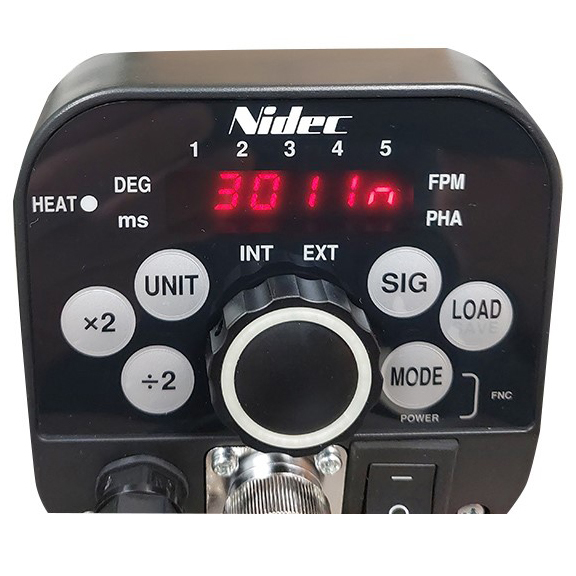

Display 6-digit, 7 segment red LED
Flash Duration 20 μsec
Phase Shift 0 to 359˚ set by 0.1˚ resolution; 0.00 to 999.99 msec set by 0.01 msec resolution, 1000.0 to 1994.4 msec set by 0.1 msec resolution
Power Requirement 100 to 115 VAC +/-10% 50/60 Hz; -EU: 200 to 240 VAC 50/60 Hz
Input Signal H level: 2.5 – 12 V; L level: 0 – 0.5 V Pulse width : 50 µs or more
Input impedance : 10 kΩ or more
Input Signal Range 27 to 35,020 fpm (1 fpm resolution) with available delay setting in degree or msec
Sensor Power Supply DC 12 VDC 40 mA
Temperature Limits 0 to 40°C
Humidity Limits 35 to 85% RH (Non- condensing)
Product Weight 1.2 kg
Included Accessories Input Signal Connector

(DT-3011N)

SKU DT-3011N
Brand Shimpo
