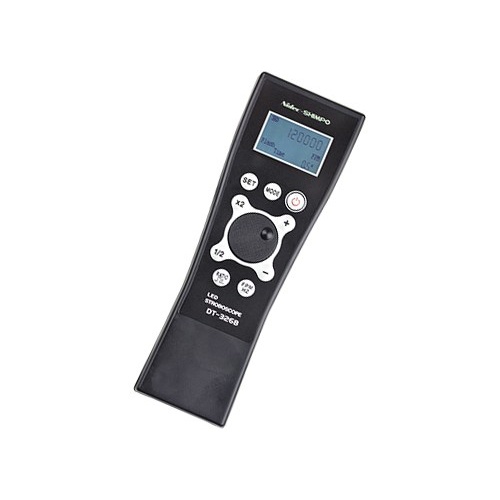

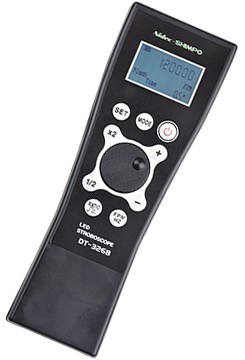

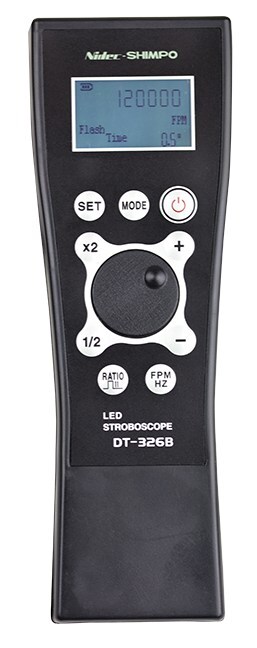

Shimpo LED "Saberstrobe" is a portable, light-weight stroboscope utilizing super bright high powered LED lamps.

These LED's provide a stronger more stable light over a wider measuring range than traditional Xenon tubes.  The DT-326B is battery operated and can run for more than 10 hours on a single charge.

The DT-326B is designed for speed and frequency measurements in motion and vibration analysis applications. It is ideal for predictive and preventive maintenance applications.



FEATURES:

  • 60~120,000 flashes per minute.
  • Adjustable Flash Pulse duration achieves sharper images for critical inspection
  • Phase Shift Advances or retards flash timing for viewing
  • Input sensor trigger function
  • Delay time adjustment
  • Accuracy: 0.01%±1 digit of F.S.



TECHNICAL SPECIFICATION:

Flash Rate Range 60 ~ 120,000 FPM (1 ~ 2000Hz)
Accuracy 0.01%±1 digit of F.S. @ 25°C

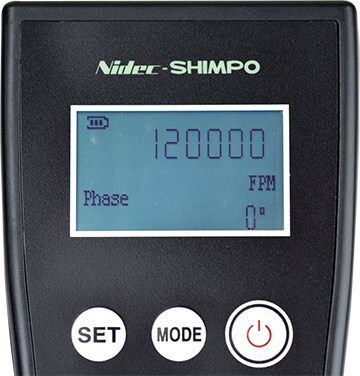

Display Backlit LCD
Resolution

60 ~ 12,000 FPM = 0.1 FPM

12,001 ~ 120,000 FPM = 1 FPM

Flash Duration 0.1° ~ 2.5°
Phase Shift 0° ~ 360°
Power Requirement 240VAC
Battery Lithium DC 12.6V 730 mAh
Weight 380 grams
Dimensions 21 x 70 x 60mm



(DT-326B)

SKU DT-326B
Brand Shimpo
