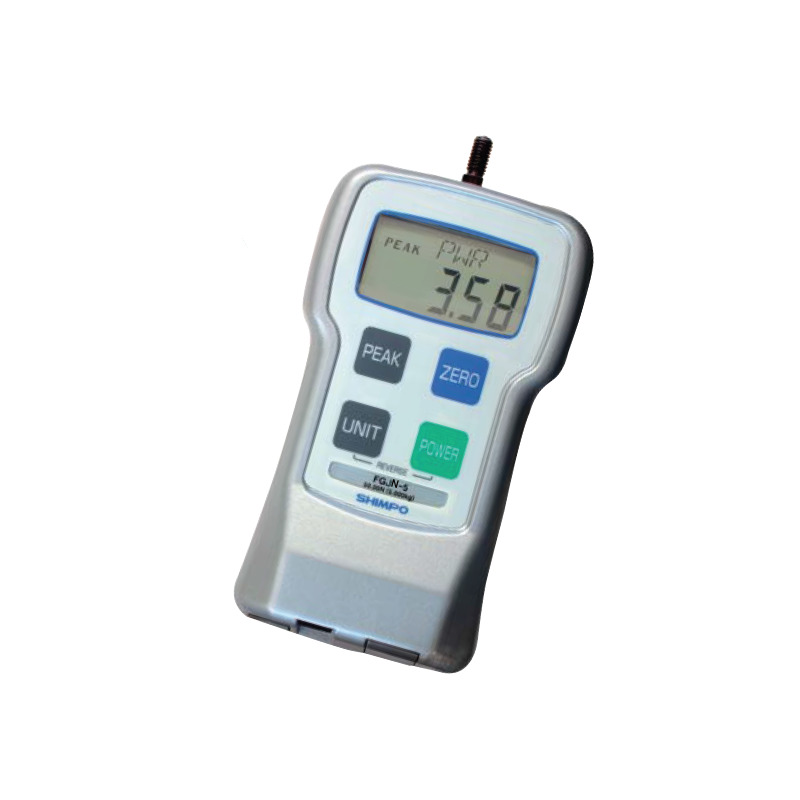

Manufactured by Nidec Shimpo, the FGJN (FGE-XY) series digital force gauge is rugged with die-cast aluminium construction, making it suitable for use on the production floor and workshop.  It has a real-time tracking mode and peak hold mode with a 1000 Hz sample rate to ensure accuracy.

This is a basic model Digital Force Gauge for simple push or pull (tension and compression) testing. The display screen is reversible for ease of use in any orientation.

The FGJN series has no data recording or output function.

FEATURES:

  • 1000 Hz sample rate
  • High accuracy +/-0.3% F.S
  • Tracking or Peak Hold function
  • Push or Pull use
  • Die-cast aluminium construction
  • Reversible display
  • Auto shut off
  • Selectable units N or Kg/F

MODEL CAPACITY RESOLUTION
FGJN-2 20N (2kgf) 0.01N (0.001kgf)
FGJN-5 50N (5kgf) 0.01N (0.001kgf)
FGJN-20 200N (20kgf) 0.1N (0.01kgf)
FGJN-50 500N (50kgf) 0.1N (0.01kgf)


(FGJN)

SKU FGJN
Brand Shimpo
