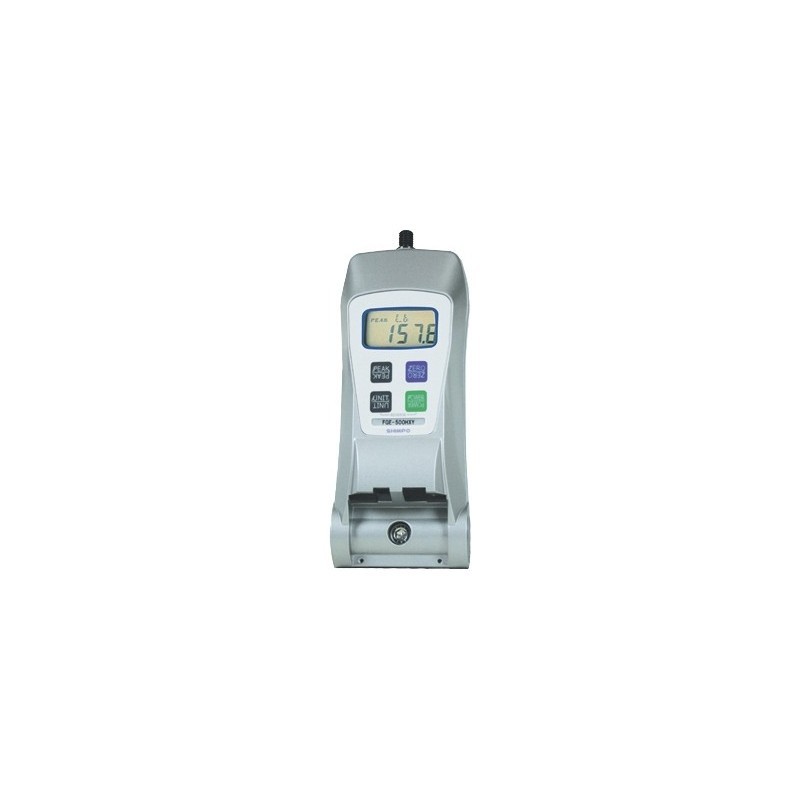

The FGE-HX Series is a heavy duty Digital Force Gauge from Shimpo, capable of high load tensile and compression testing up to a huge 1000 lb or 4448N (450 Kgf).

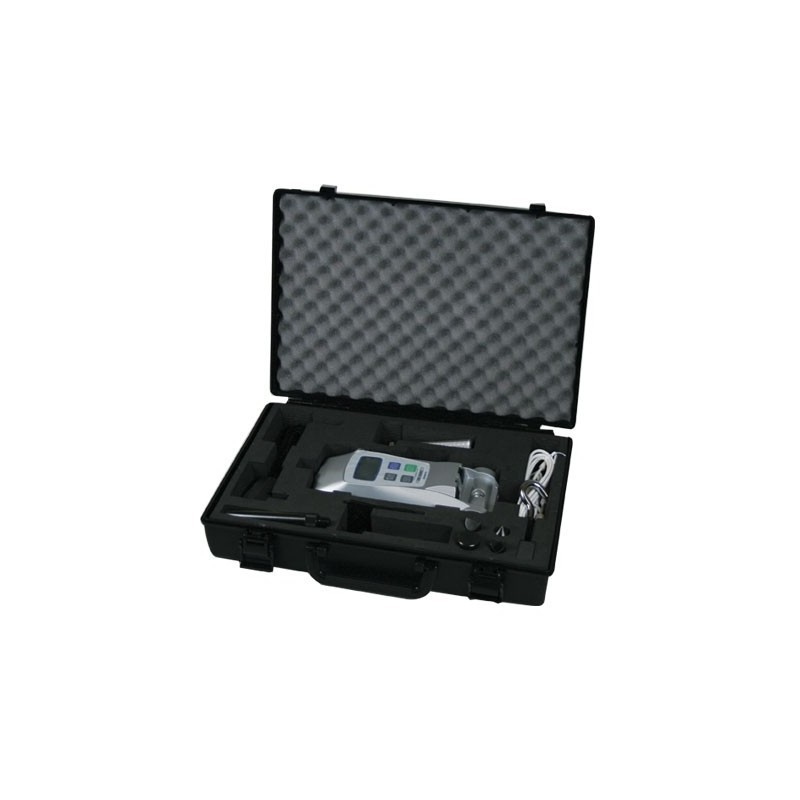

Built into a rugged outer casing for extreme durability and fitted with two handles providing the user with ultimate control during high load testing; and they are easily removed when not in use for compact storage.

Testing is in both compression and tension and the display is automatically reversible with a dual labeled keypad to use the gauge in any direction and two modes for peak hold and live tracking measurement.



FEATURES:

  • High capacity, rugged construction
  • 1000 Hz sample rate
  • 4-digit LCD, reversible display
  • High accuracy: ± 0.2% F.S.
  • Die Cast Aluminium construction
  • Selectable units: kg, N, lb and oz
  • 150% overload limit
  • Auto shut off

TECHNICAL SPECIFICATIONS:

MODEL CAPACITY RESOLUTION
FGE-200XY 1000N (100 Kgf / 200 lbf) 1N (0.1Kgf)
FGE-500HXY 2500N (250 Kgf / 500 lbf) 1N (0.1Kgf)
FGV-1000HXY 4448N (453 Kgf / 1000 lbf) 1N (0.1kgf)


DIMENSIONS:

(FGE-HX)

SKU FGE-HX
Brand Shimpo
Shipping Weight 2.5000kg
Shipping Width 0.350m
Shipping Height 0.100m
Shipping Length 0.250m
Shipping Cubic 0.008750000m3
