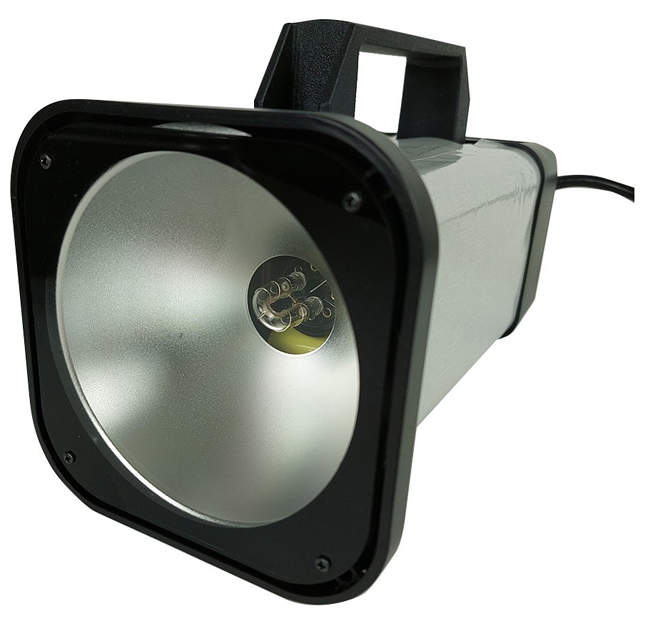

The Shimpo DT-311D is a portable, highly stable, industrial-quality stroboscope for non-contact inspection and observation of moving parts by providing the user the illusion of stopped or slowed down equipment movement.

Constructed with a rugged metal enclosure, the DT-311D’s withstand harsh, industrial usage.

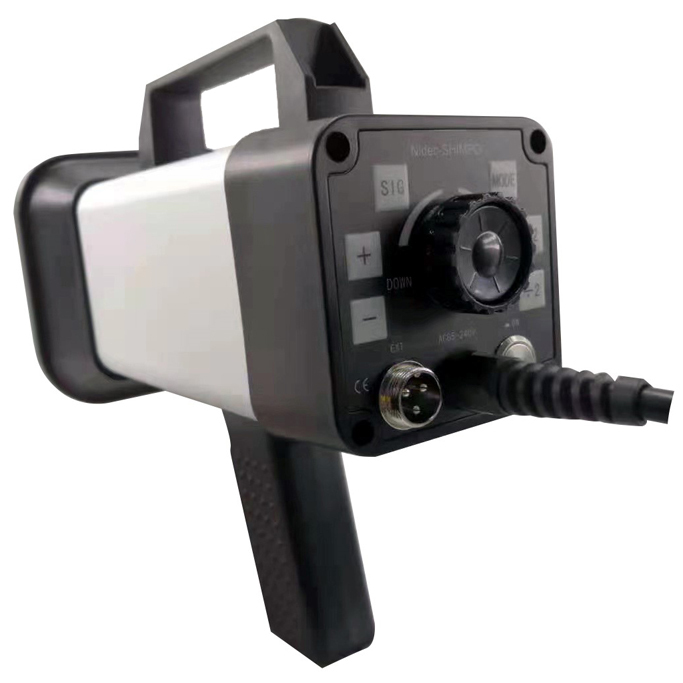

The included top & bottom handles aid in portability and usage flexibility.

The control adjustment settings allow the flash rate to be readily altered by the user to visually inspect rotating or reciprocating machinery such as gear teeth, rotors, shafts, rewinders, printing presses, etc. all without stopping production.

External trigger mode with connected remote sensor input enables the flash rate to be synchronized to the speed of the process.

These features make the DT-311D universally-powered stroboscope ideal for quality inspection and preventive maintenance of automated motion equipment.

Model DT-311D
Flash Rate Range 60-12,000 fpm (flashes per minute)
Accuracy ±0.01% F.S.
Resolution 0.1 from 60-6,000; 1 from 6,001-12,000

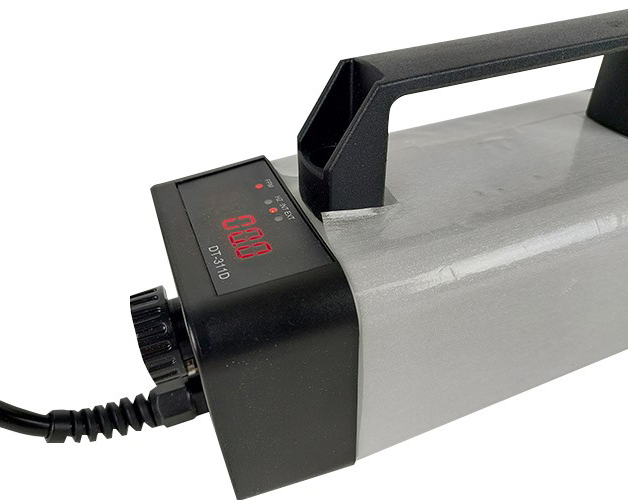

Display 5 digits 0.4" (10 mm) height
Flashtube Power/Life Xenon ≤ 45W / 50,000,000
Flash Duration 10-30 μs automatically adjusts with flash rate
External Trigger Input 5 V dc ~ 12 V dc pulse signal input (high level trigger) from sensor
Sensor Power Supply 12 V dc up to 50 mA
Input Pulse Width Over 50 μsec
Lux Rating 8" (20 cm) Distance = 1550 lx @ 1500 fpm, 2350 lx @ 6000 fpm with 15.5" (400 mm) irradiation diameter.
20" (50 cm) Distance = 650 lx @ 1500 fpm , 580 lx @ 6000 fpm with 23.5" (600 mm) irradiation diameter
Power Requirement 85-240 VAC 60/50 Hz
Operating Temperature 0 - 40°C
Dimensions 210 x 120 x 120 mm
Product Weight 1.0 kg
Included Accessories Top & bottom handles, 3 m power cable, 3 pin female M16 threaded connector

(DT-311D)

SKU DT-311D
Brand Shimpo
