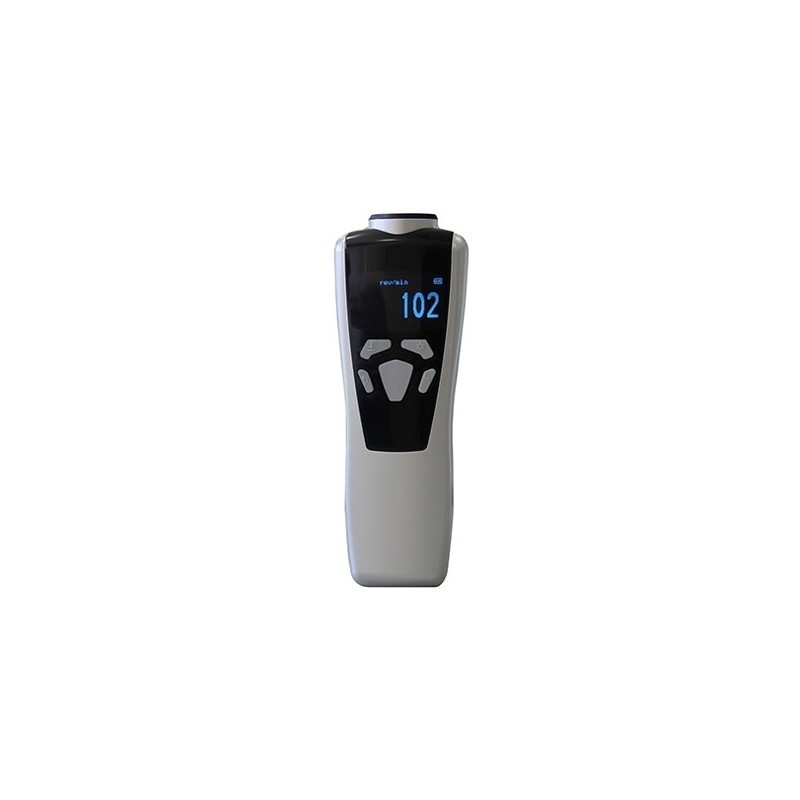

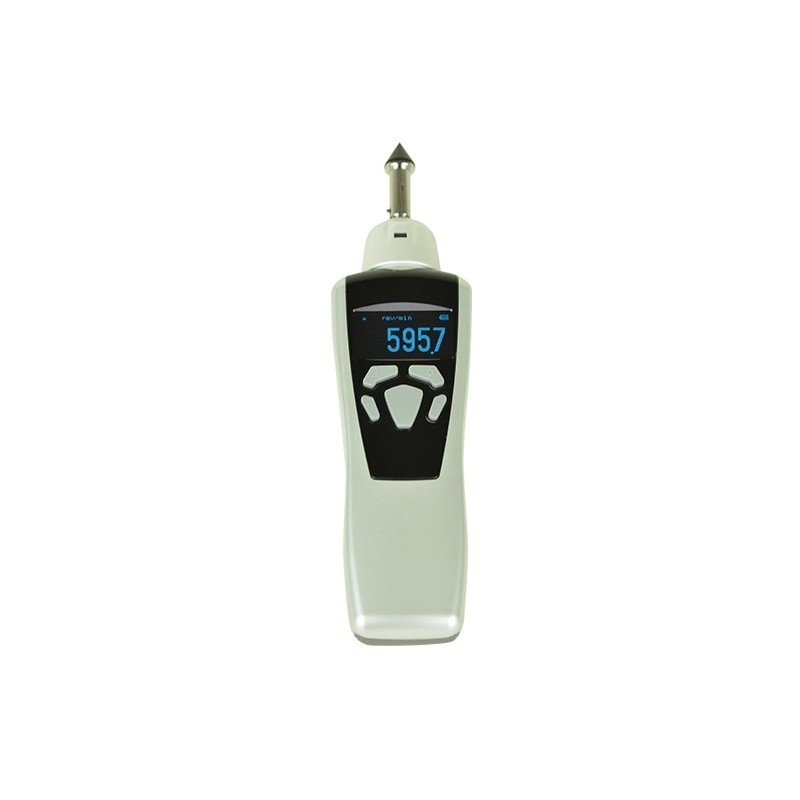

The DT-2100 Data-Logging Tachometer is the most highly advanced tachometer ever developed by NIDEC-SHIMPO. Providing an unequaled level of user flexibility. Aiding the diagnosis of the most difficult machinery measurements with its on-board data-logging, graphing and statistical analysis, the user can examine the results of their testing on site and determine if additional data is required. Data can be downloaded to the optional software to further analyze and diagnose system performance.

If simplicity is required, the DT-2100 can accommodate with its selectable display styles allowing results to be viewed in standard numerical, chart, bar graph or gauge modes. Max., Min. and Ave. can be quickly scrolled through in any display mode for additional test feedback. Data recording can be set for single point or continuous logging.

Mount the DT-2100 on its tri-pod connection, to adjust the machinery during testing.

One feature that is unique to this instrument is the ability to calculate lengths remotely in non-contact laser operation. This feature adds a level of convenience and capability as often it is dangerous or not possible to take a reading by physical contact.

PC software for the DT-2100 is also available separately. The software provides the user the ability to program the tachometer to their requirements, as well as enables more refined analysis of the data.



SPECIFICATIONS:

DISPLAY RANGE 6-99,999 rpm Non-contact, 0.8-25,000 rpm Contact
ACCURACY RPM ±0.006% of reading ±1 least significant digit
MEASURING UNITS Speed: rpm, m/min., cm/min., inch/min., ft/min., yds/min., rps, m/sec, cm/sec, inch/sec, km/hr, mph Distance: cm, m, km, in, ft, yd
MEMORY Continuous Mode: 1000, Single Mode: 100, Statistics Mode: 100
MEASURING DISTANCE 2” to 13.1’ (50 to 4,000 mm)
POWER 2 AA 1.5V batteries or USB
DISPLAY Graphical Blue Light OLED, reversible
INCLUDED ACCESSORIES 2 cone adapters, funnel adapter, 3½” extension shaft, carrying case, master wheel (6” cir.), 2 AA batteries, contact adapter

(DT-2100)

SKU DT-2100
Brand Shimpo
