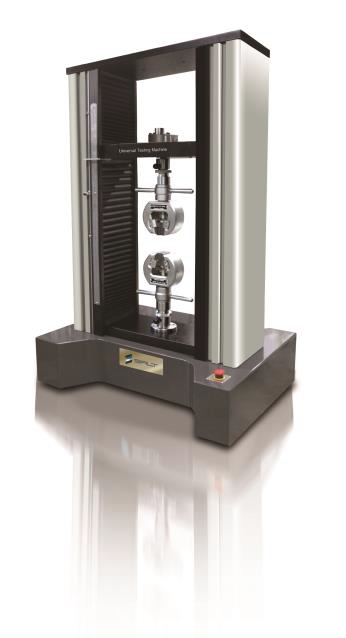

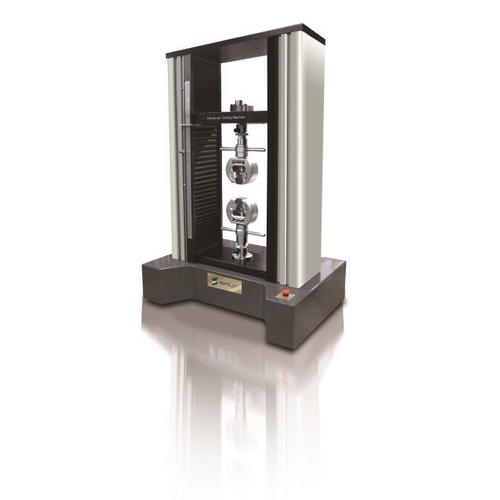

Dual column frame ST-1001 series Electric servo motor driven Universal Test Machine with capacity options from 5kN to 20kN .

The ST-1001 Series Electrical UTM's are built on a 20kN rated frame as standard and equipped with industry leading parts such as Mitsubishi Servo Motors and Drivers (Japan) and Motorvario Worm Gear Reducers (Italy). Precision balls screws and bearings are used to minimize backlash and improved accuracy in position and speed as well as control in applied force.

Salts UTM's are controlled by our intuitive Touch Screen Indicator. With load cell resolution at 1/300,000 and displacement reading down to 0.001mm. Closed loop controller for a fully independent system.

The load cell is supplied factory calibrated to Accuracy Class 1 / Class 0.5 (includes KOLAS calibration report)

Exclusive software enables the testing, data acquisition, test data management and analysis. Test methods include: Tensile, Compression, flexural / Bending, Cyclic, Shear etc. The software can be modified to meet any standard (ISO, ASTM, KS, JIS etc.) for any measurement possible with our UTMs after consultation. Analysis of the software include measurements of stress/force, strain/displacement, time and calculates the modulus, yield point, elongation % etc.



FEATURES:

  • Force & position control, Stroke & load display
  • Digital display resolution 1/300,000
  • Stroke resolution 0.001mm
  • Drive System: 0.01~500mm/min speed range
  • Load Cell: 3.0mV/V ±0.3% (Class 1 calibrated including KOLAS calibration report)
  • 20kN rated frame

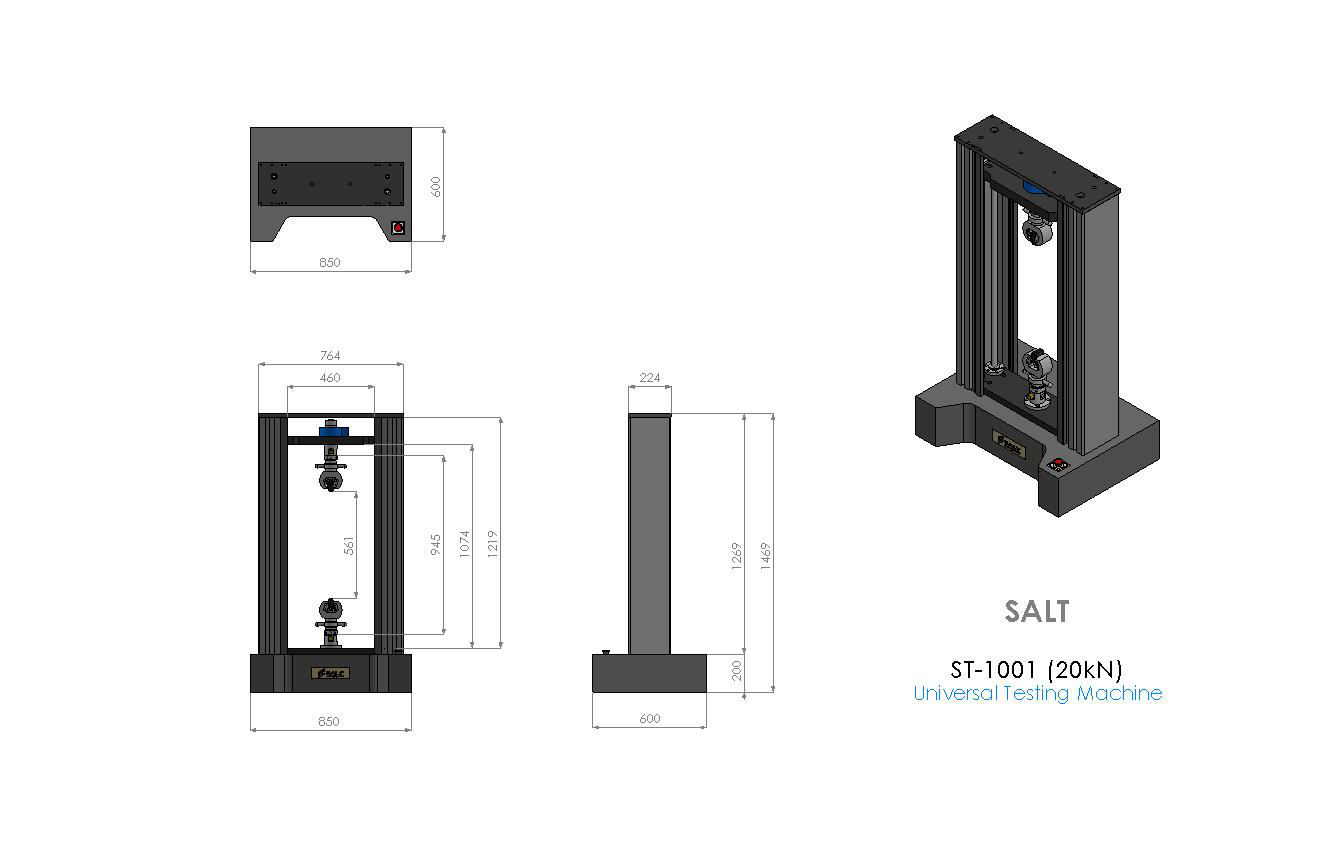

DIMENSIONS:

(ST-1001)

SKU ST-1001
Model # st-1001
Brand Salt Co., Ltd.
