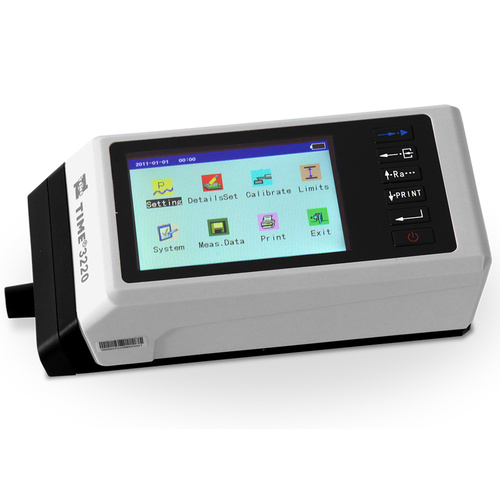

TIME 3220 is an advanced stylus surface roughness measuring instrument with integrated drive unit. It supports 45 kinds of roughness parameter measurement with high accuracy and wide testing range. It has a large colour, touch screen, wide measurement range up to ±400µm with advanced data management and waveform graphing.



FEATURES:

● Integrated design, easy and convenient to use

● Measurement parameters: Ra、Rp、Rv、Rt、Rz、Rq、Rsk、Rku、Rc、RPc、RSm、Rmr(c)、tp、Rmr、Rpm、Rz1max、RzJIS、Rmax、Htp、Rδc、R△q、R△a、Pa、Pp、Pv、Pt、Pz、Pq、Psk、Pku、Pc、PSm、Pmr(c)、Pmr、Pz1max、PzJIS、Pδc、P△q、Rk、Rpk、Rvk、Mr1、Mr2、A1、A2

● Touch screen with TFT LCD showing all important data and graphs

● High accuracy inductive sensor probe

● Filtering methods of 2RC, GAUSS

● Compatible with standards of ISO1997, ANSI and JIS2001

● Connected to TIME TA230 printer to print all data and graphs

● RS232 interface and USB interface meeting more needs

● Auto switch off



SPECIFICATIONS:

(TIME3220)

SKU TIME3220
Brand Time
