NEW and Exclusive to Test-Equip

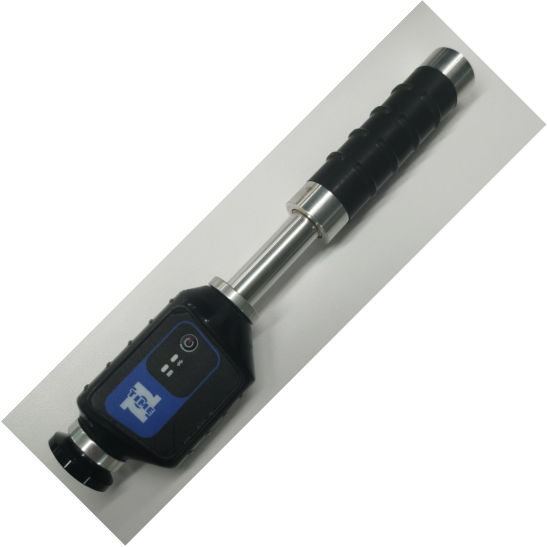

The TIME 5376 is a portable, smart LEEB metal hardness tester with type G impact device and cloud measurement for use with dedicated "TIME Smart Test" APP only.

The TIME5376 features a much larger (Type G) impact device and uses a greater impact test force to allow accurate testing on rough, un-machined castings of Iron, Aluminium and Steel.

Using rebound technology, results are measured in the LEEB Scale (HL), which can then be converted to the commom scales Rockwell B, and Brinell.

Metals that can be tested include Cast Iron, Cast Aluminium and Cast Steel variations.



This hardness tester is an advanced hardness measuring instrument with smart, wireless Bluetooth communication to any Android device.

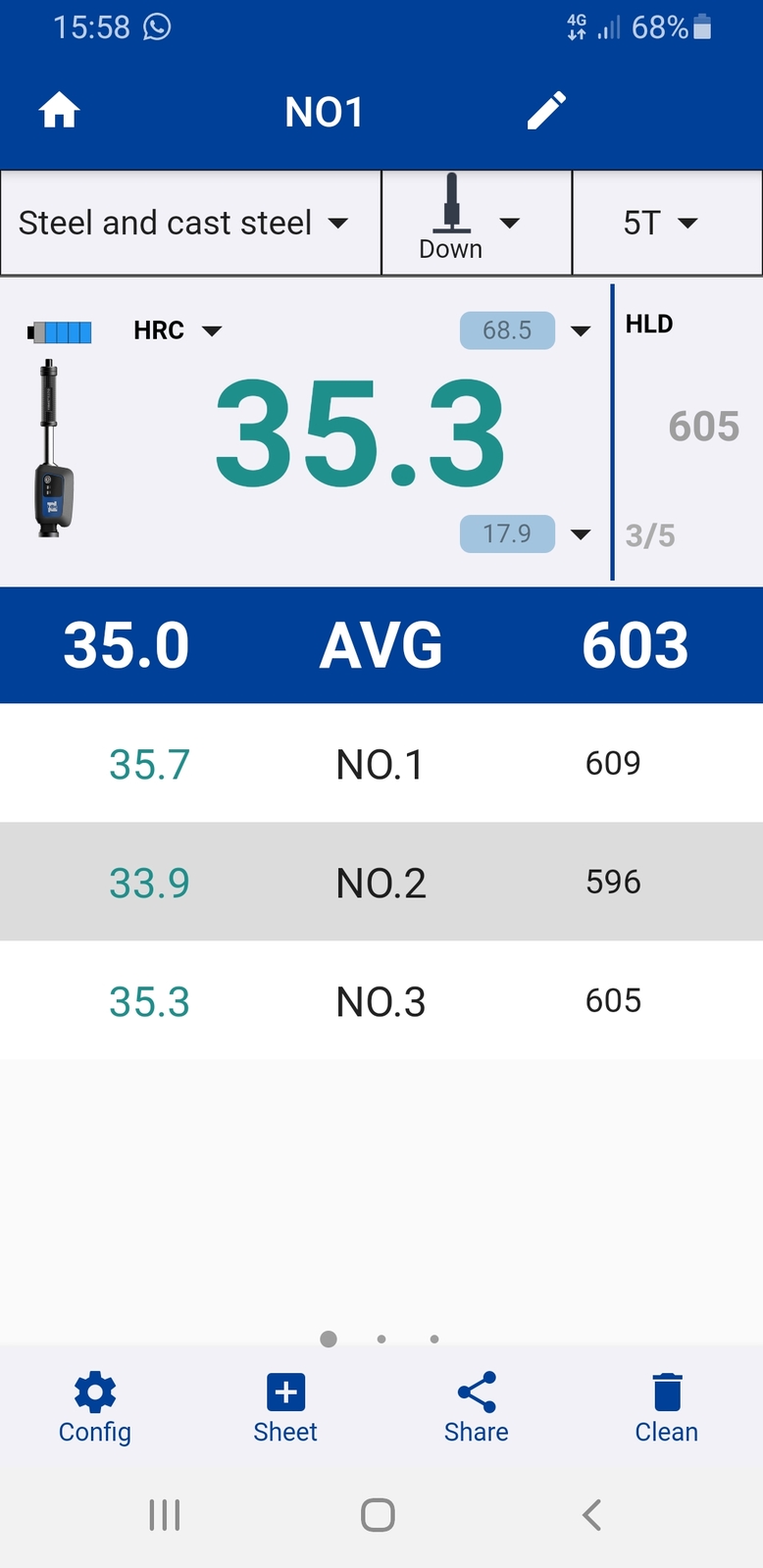

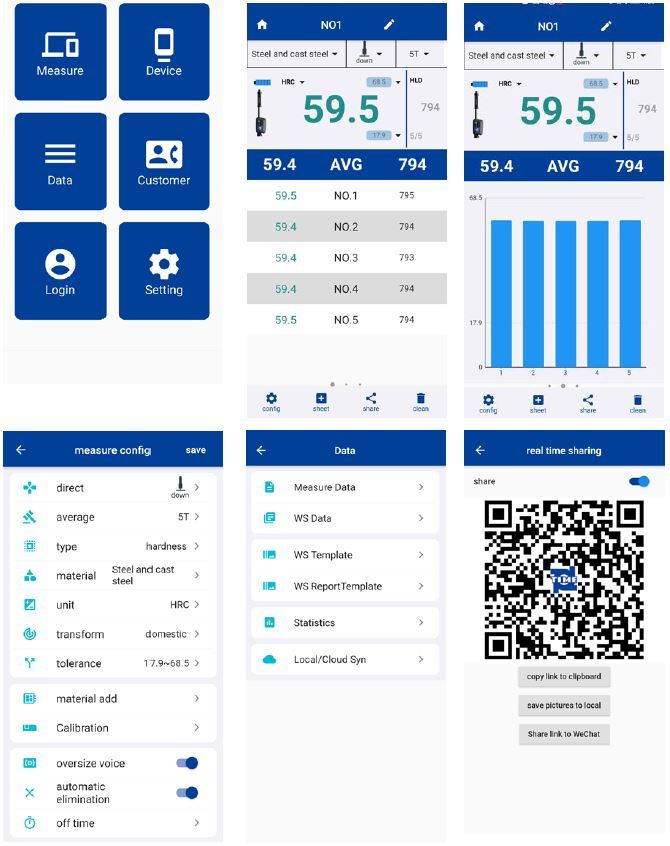

The TIME 5376 has Bluetooth installed for communication with the dedicated "TIME Smart Test" Android APP for data output and analysis. Automatically record measurement data. Facilitate the traceability of quality control process. The user can modify tester settings using the APP when connected.

This hardness tester meets the following standards: Enterprise Standard "Leeb Hardness Tester" Q/HD SDF0006-2017.

* Android device is NOT included.



FEATURES:

  • G-type impact device
  • For cast iron
  • Large, raw cast surfaces
  • Wireless communication interface: Bluetooth 4.1
  • Real-time data management
  • Dedicated Android APP
  • IP54 protection



TECHNICAL SPECIFICATION:

MODEL TIME5376
Impact Device G integrated
Hardness Scales HLG, HB, HRB
Accuracy ±12 HLG
Impact Energy 90mJ
Measuring Range

200~750 HLG

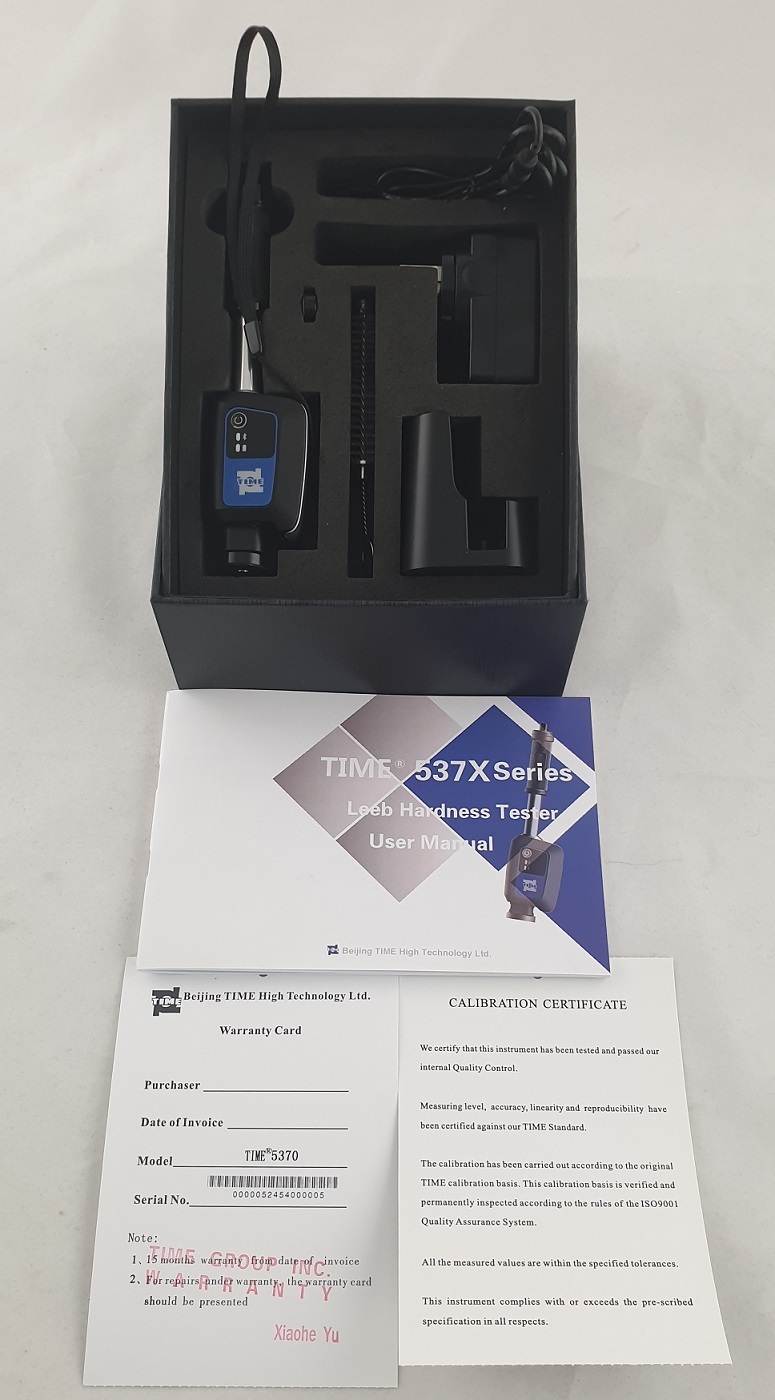

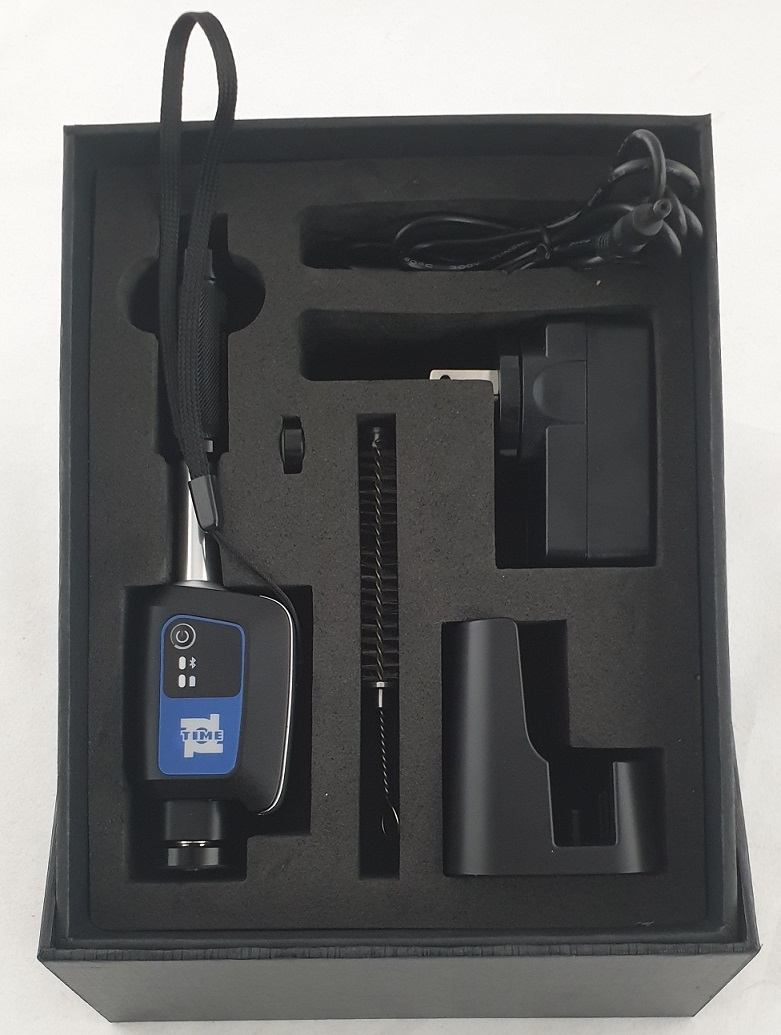

Basic Kit Supply:

  • Portable Hardness Tester

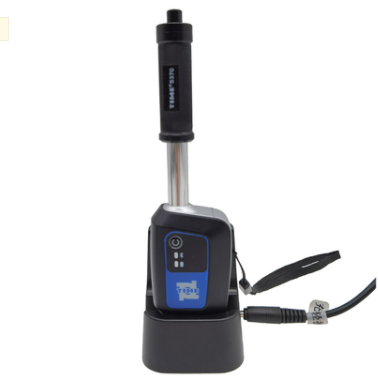

  • Charger Cradle
  • Support Ring
  • Lanyard
  • Cleaning Brush
  • Factory Calibration Certificate
  • Android device is NOT included

(TIME5376)

SKU TIME5376
Brand Time
