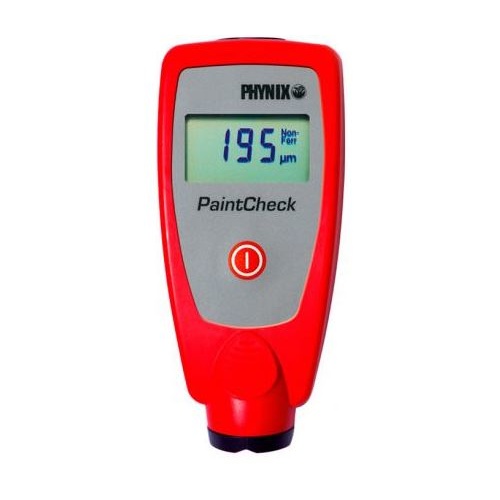

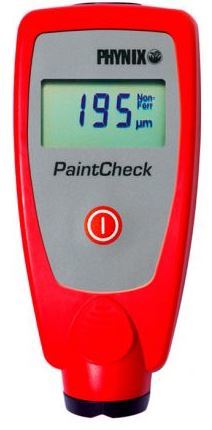

The 11020 PaintCheck Plus FN provides two established methods of coating thickness measurement: the magnetic and the eddy current method (DIN EN ISO 2178 and 2360). Both practices offer the highest degree of accuracy on thin coatings on steel, as well as on non-ferrous metals e.g. aluminum. The Device automatically detects the material and selects the correct test method upon application of the probe. It is as fast, easy and universal as it gets.

Advantages at a Glance:

  • Easy single button handling - switch on and measure
  • Fast and precise measurements
  • Measurements on flat and slighty curvatured surfaces
  • Calibration-free measurements
  • For measurements on iron/steel and non-ferrous metals
  • Automatic recognition of the substrate
  • Integrated probe for measurements on smooth, painted surfaces
  • 4-digit alphanumeric display
  • Large contact surface for safe positioning
  • Acoustic signal after measurement
  • Selectable µm/mils
  • Automatic switch off function

Features:

  • Protective rubber Cover
  • Control foil
  • Steel zero-standard
  • Aluminum zero-standard
  • Carrying case
  • 2 batteries AAA
  • Instruction manual

SPECIFICATIONS:

Measuring Range 0~3,000µm (PaintCheck Plus)
Accuracy ±3µm +5% of reading
Resolution 1µm (up to 1,000µm); 2µm (to 2,500µm)
Calibration Not required - Factory set
Dimensions 110mm x 50mm x 25mm


(PaintCheckPlusFN)

SKU PaintCheckPlusFN
Brand Phynix
