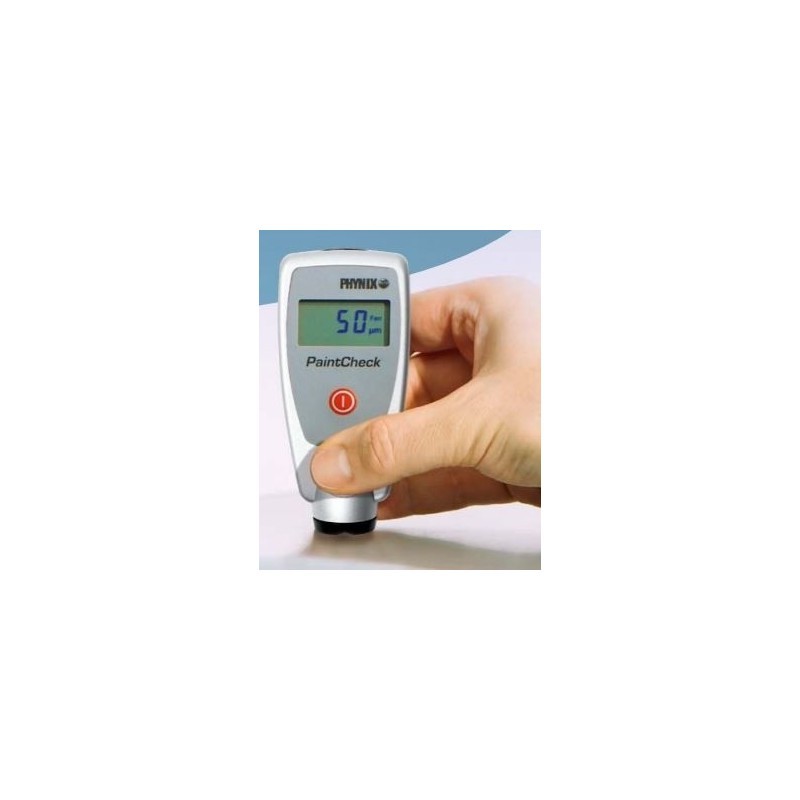

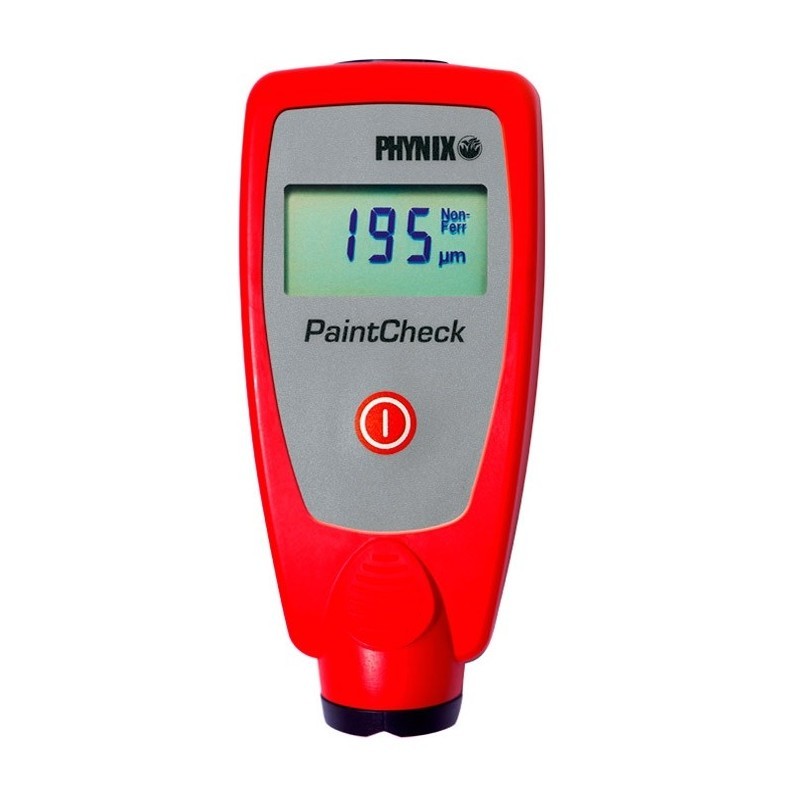

The Phynix PaintCheck gauge from Germany is a basic coating thickness tester that enables quick, non-destructive and accurate paint thickness measurement on steel, iron, aluminium and other non-ferrous metals.

It features an integrated combination probe with Ferrous and Non Ferrous sensors and automatic recognition of substrate. It has a large contact area for reliable positioning on slightly curved surfaces.  The probe has a hard wearing tip providing excellent durability in industrial applications.



FEATURES:

• One-button operation
• Integrated probe.
• Automatic substrate recognition.
• Small and portable.



SPECIFICATIONS:

Measuring Range 0~2,000µm
Accuracy ±3µm +5% of reading
Resolution 1µm (up to 1,000µm); 2µm (to 2,500µm)
Calibration Not required - Factory set
Dimensions 110mm x 50mm x 25mm







(PaintCheck)

SKU PaintCheck
Brand Phynix
