The FM series of Micro Vickers Hardness testers from Future-Tech Japan allow for a wide range of testing applications.

Choose from 3 levels of control and automation as well as 5 different test load weight ranges depending on your requirements.

They all provide a clear view and easy measuring with fine clear measuring lines.  Testing scales include Brinell, Micro Vickers and Knoop. These testers also feature auto turret option and adjustable legs.

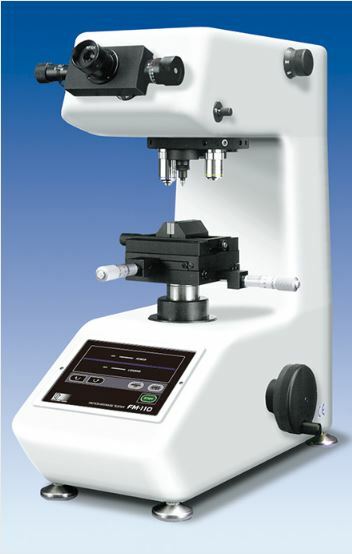

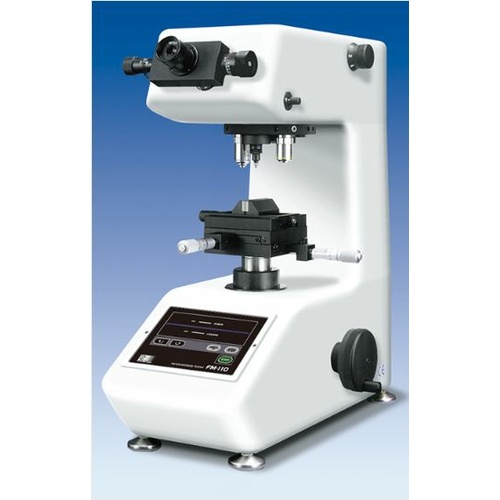

FM-110 is an analogue tester with manual loading, unloading, X-Y stage and measurement and turret. Optional auto turret

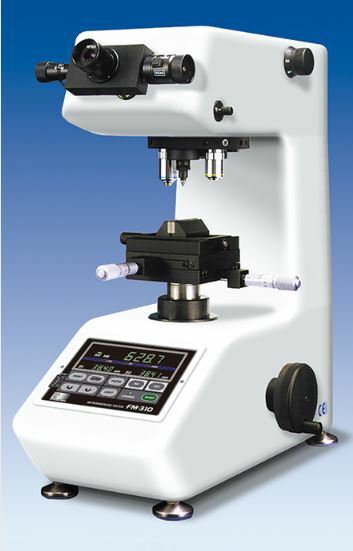

FM-310 is a digital tester with digital co-ordinate measurement, manual X-Y movementOptional auto turret

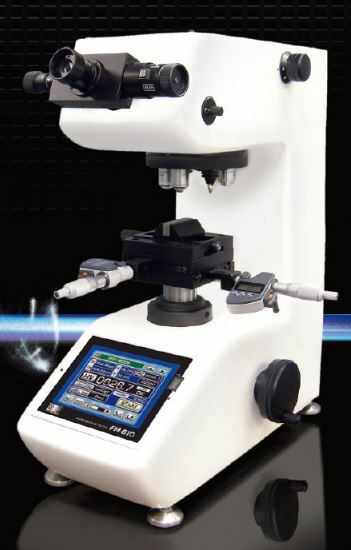

FM-810 is fully digital with touch-screen LCD interface.



FEATURES:

  • USB output
  • Equipped with the cylindrical/spherical offset function and the specimen thickness calculation function.
  • Advanced colour LCD touch panel operation and display
  • Fracture toughness testing, kc
  • X-Y coordinate display
  • 4 object lenses (optional)
  • 2 indenters for HV/HK measurements (optional)



STANDARDS:

  • JIS B-7734/B-7725
  • ASTM E-384
  • ISO/DIS 6507-2

For more information and pricing please contact us.



(FM-Series)

SKU FM-Series
Brand Future-Tech
Shipping Weight 65.0000kg
Shipping Width 0.400m
Shipping Height 0.800m
Shipping Length 0.600m
