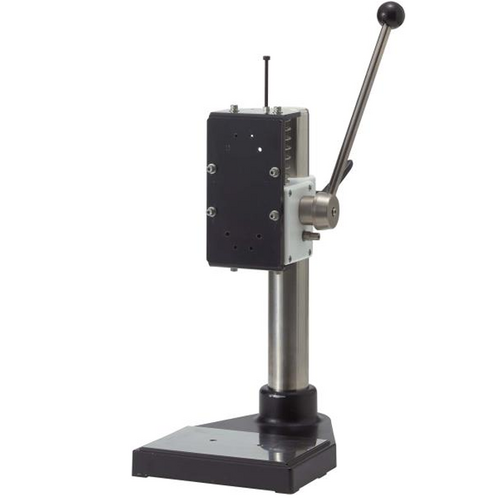

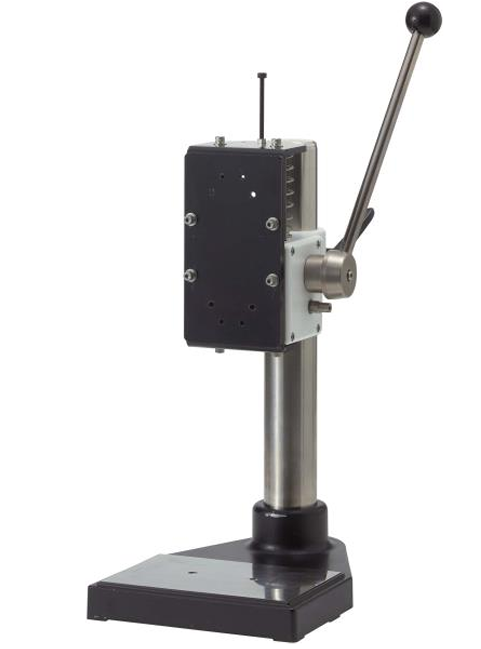

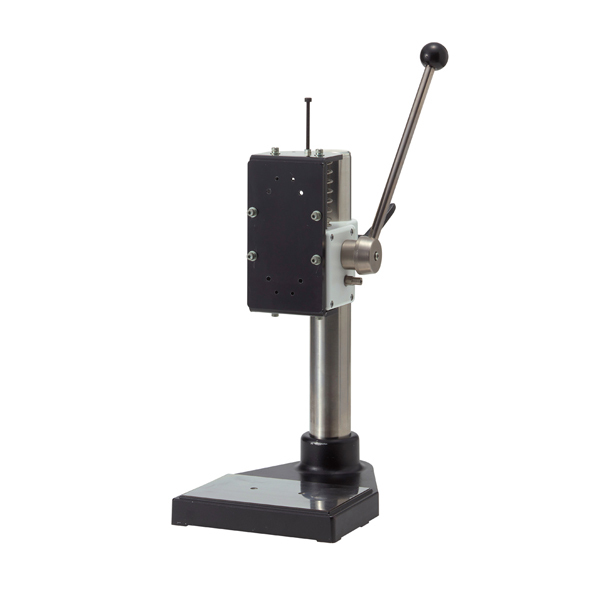

The SVL-1000N manual, lever operated vertical test stand from Imada is compatible with digital and analogue force gauges with a maximum force capacity of 1000N (100Kg/F).

Use of a test stand allows for greater consistency in repeated measurements and applied force to the test. The lever style stand is best used where a single, rapid motion is required; i.e. in a crush or puncture failure test.

The SVL-1000N operates in either compression or tension stroke and it features a quick-release for boom height adjustment to enable testing of large objects.  The stroke is 60mm over 170°.

The SVL-1000N can also be equipped with a digital distance meter for measurement of displacement. (* Optional extra)



FEATURES:

  • Lever action
  • Stroke: 263mm
  • Travel: 60mm per 170°
  • Compression and Tension operation
  • Compact base
  • Adjustable boom height
  • 1000N Capacity

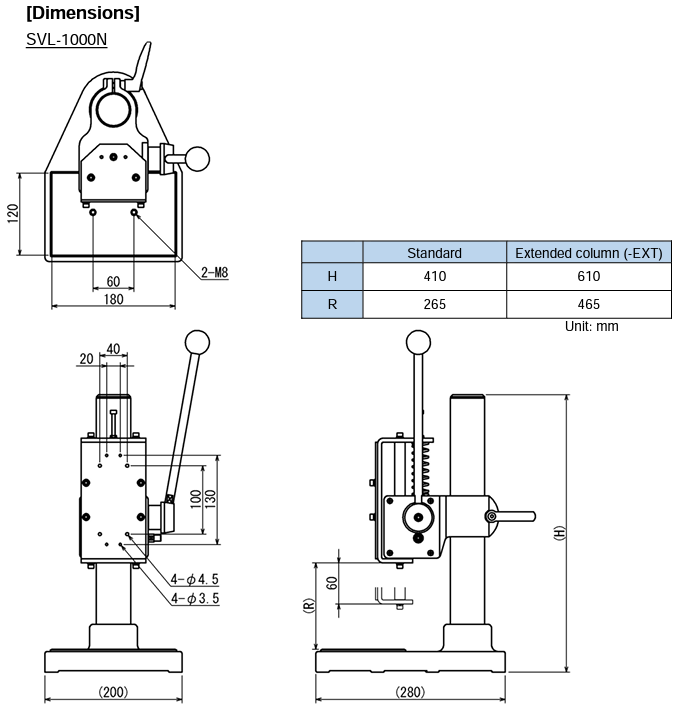

DIMENSIONS:

(SVL-1000N)

SKU SVL-1000N
Brand Imada
Shipping Weight 9.0000kg
Shipping Width 0.250m
Shipping Height 0.500m
Shipping Length 0.350m
