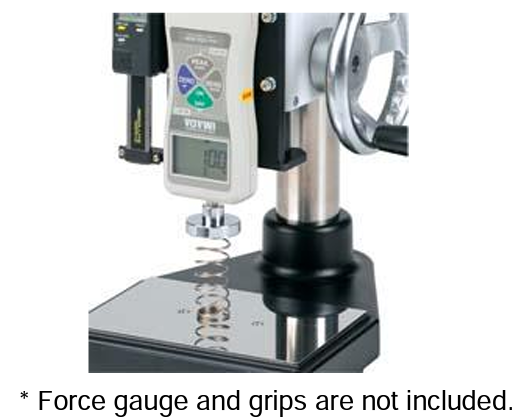

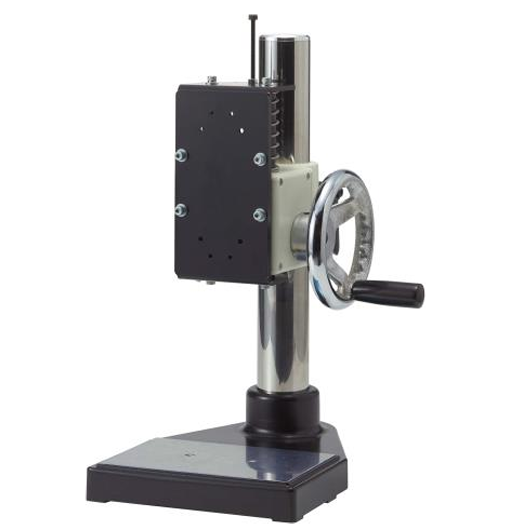

The SVH-1000N hand wheel operated force gauge test stand from Imada is compatible with Imada digital and mechanical force gauges up to a capacity of 1000N (100Kg/F).

Use of a test stand allows for consistent and controlled force load application producing highly repeatable results.

The hand wheel operation allows for precise control in both compression and tension stroke with the test stand moving the gauge approximately 3mm for every rotation of the hand wheel.

The base is freely adjustable for height to fit larger samples and to swivel enabling finite positioning to test large objects.

* The SVH-1000N can also be equipped with a digital distance meter for displacement measurement (Optional extra).



FEATURES:

  • Precise hand wheel action
  • Swivel base
  • 3mm per rotation
  • Compression and tension testing
  • 1000N capacity

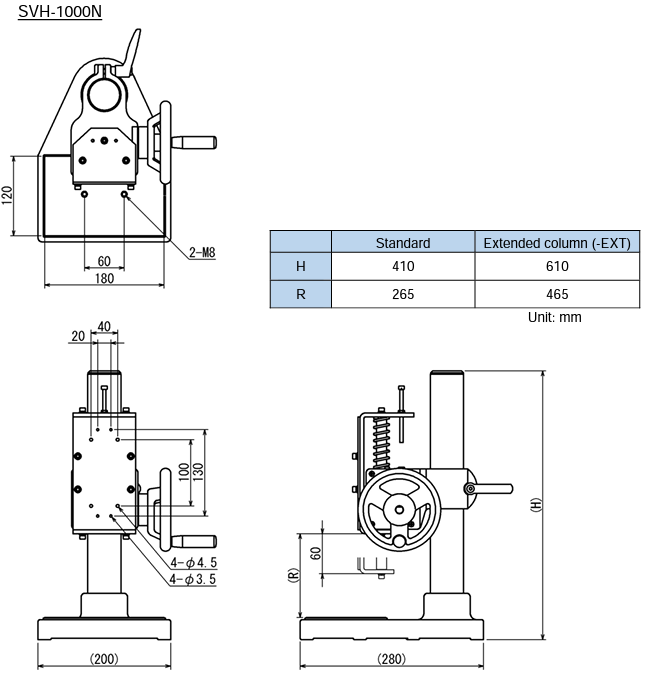

DIMENSIONS:




(SVH-1000N)

SKU SVH-1000N
Brand Imada
Shipping Weight 9.5000kg
Shipping Width 0.250m
Shipping Height 0.500m
Shipping Length 0.350m
Shipping Cubic 0.043750000m3
