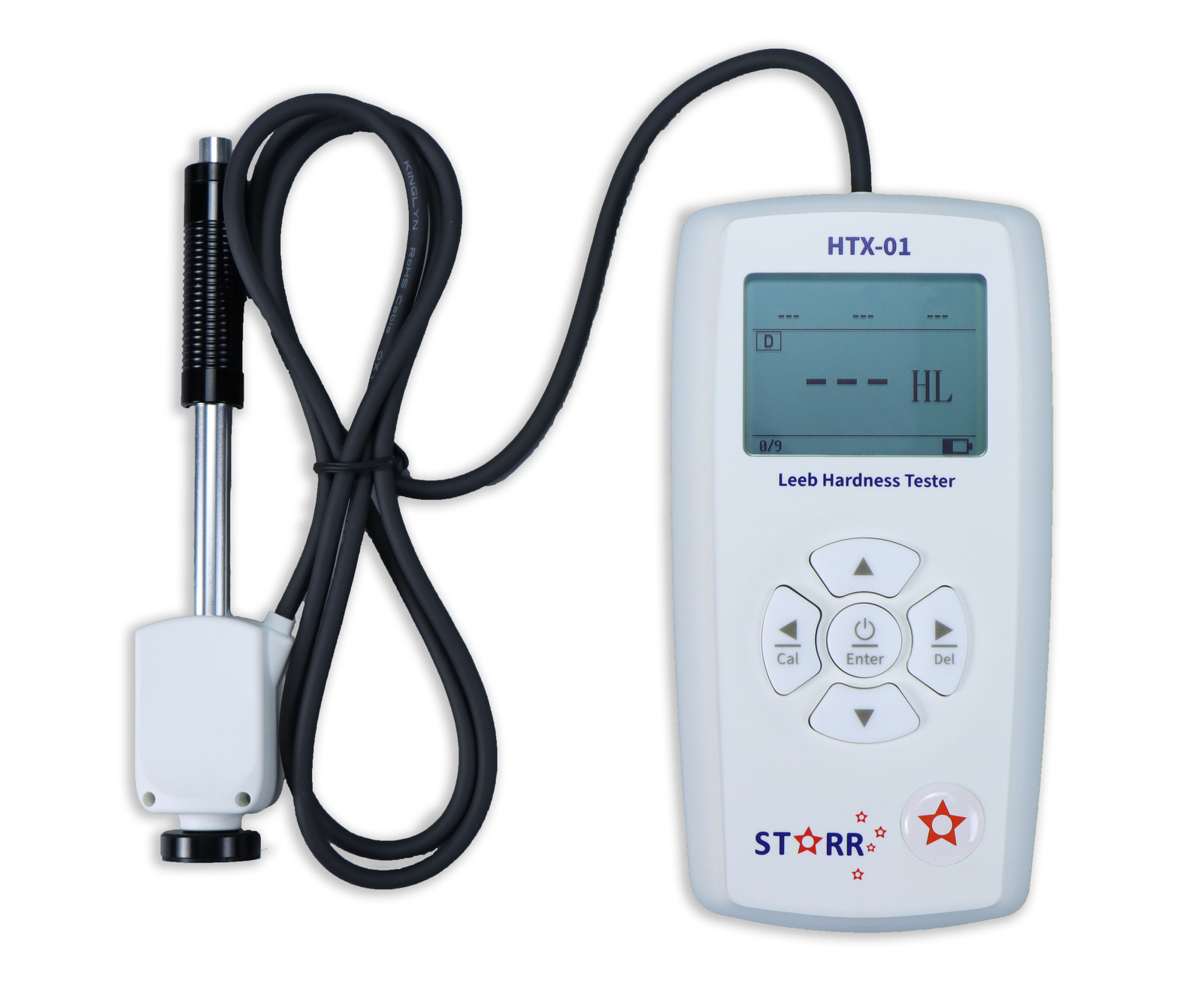

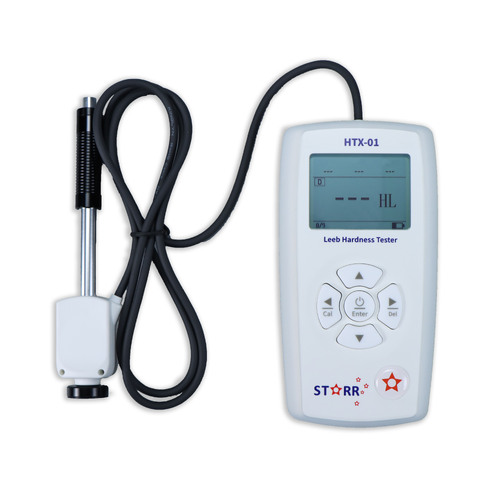

The Starr Instruments HTX-01 is a portable LEEB type Hardness Tester with an external stylus / indenter.

Despite its portability, the HTX-01 maintains its exceptional repeatability and accuracy.

The hardness value is obtained using the LEEB method which measures the energy loss of a specified impact body after impacting on a test surface. These results can then be directly converted to common hardness scales such as HRC, HRB, HRA, HB, HV, HS and even Tensile Strength (σb).

The HTX-01 uses an external D-type impact device which is suitable for general purpose testing of Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron and cast aluminium alloy. The D-type impact device requires the tested material to have a thickness greater than 5mm. (It may be possible to test smaller/thinner parts if "coupled" or suitably supported).

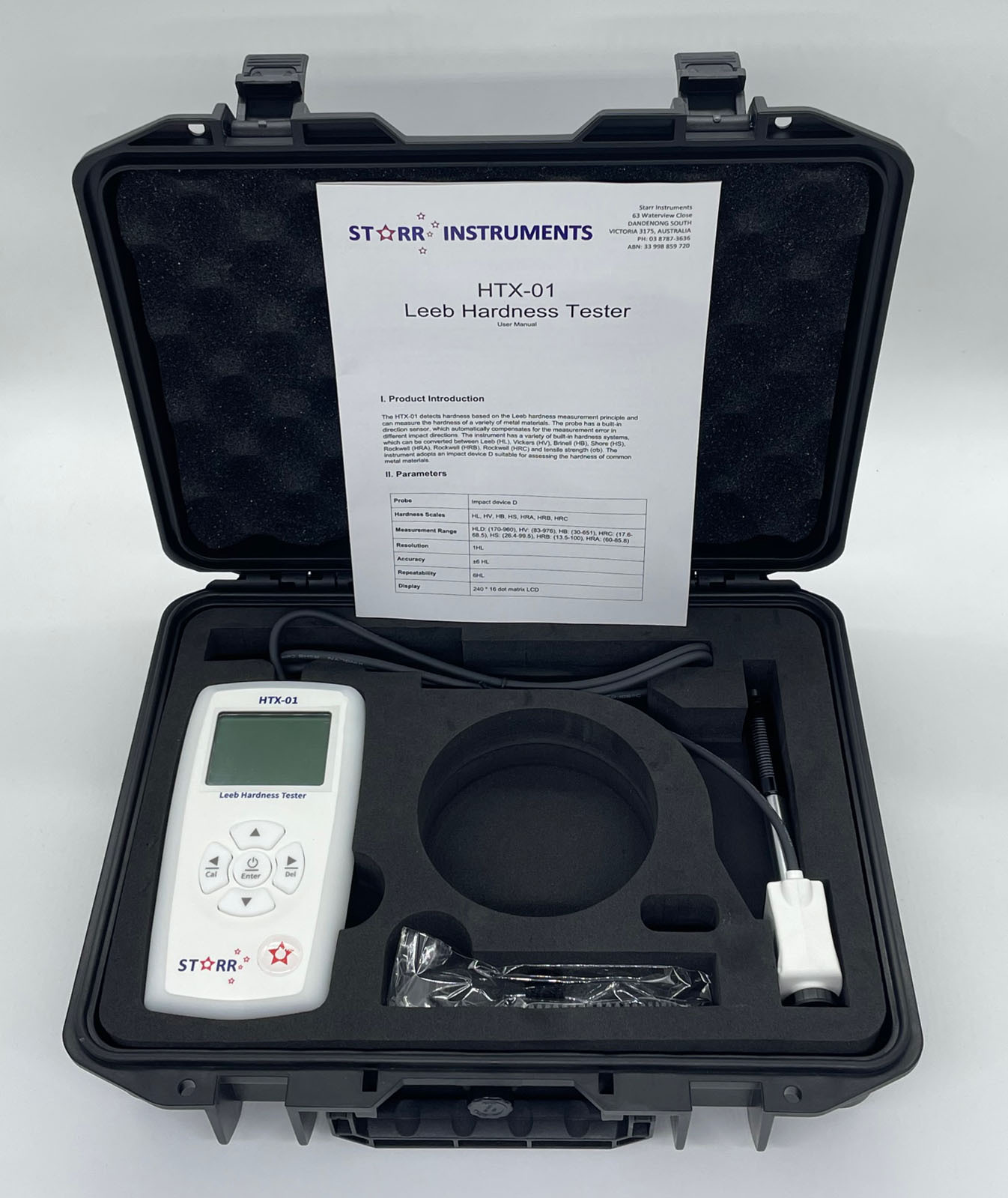

Standard Kit Includes:

• Hardness Tester
• Batteries (2 x AA)
• Cleaning Brush
• User Manual
• Additional Small Support Ring
• Calibration Certificate

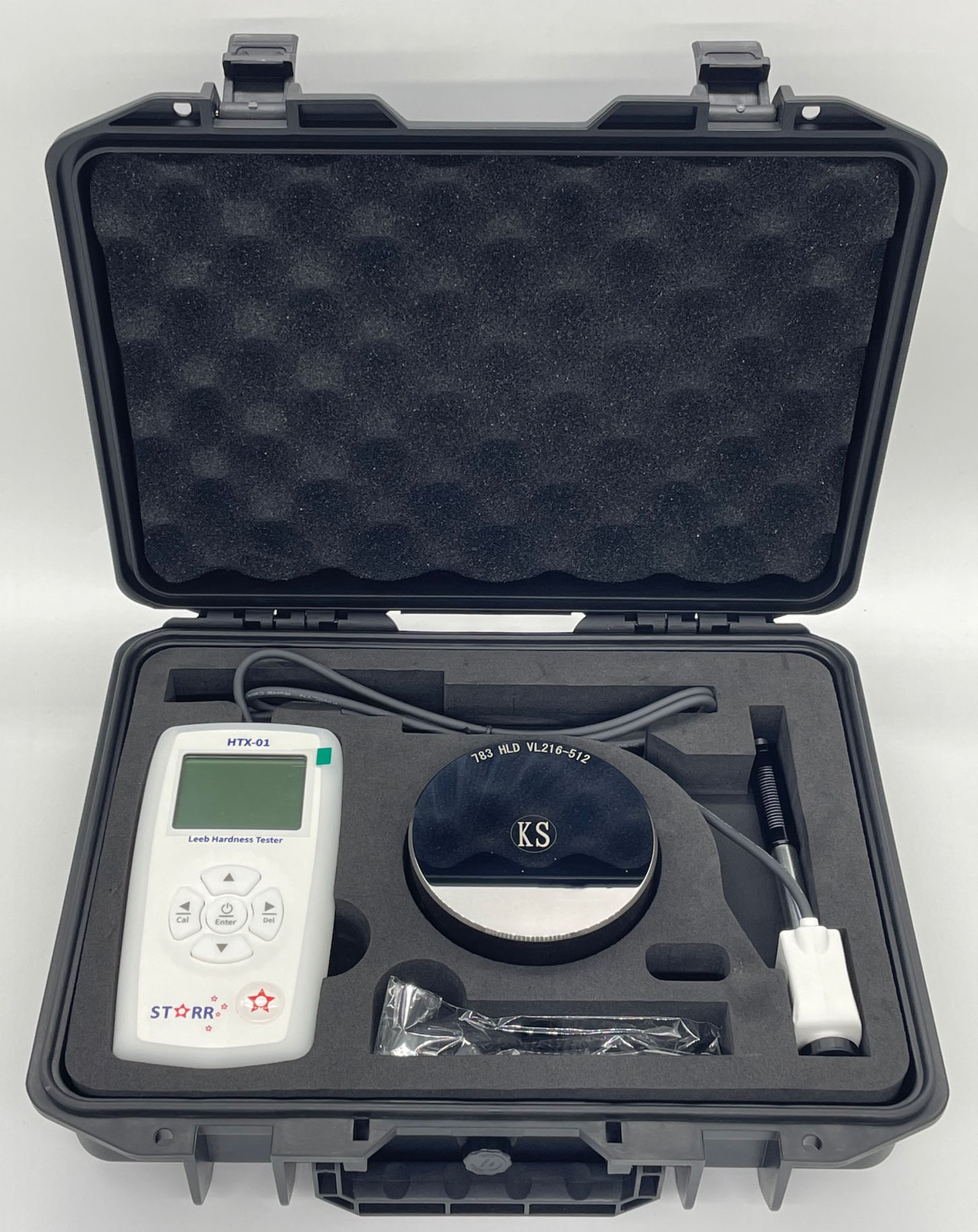

Complete Kit also Includes:

• Dedicated LEEB test Block for calibration (Click Here for More Info)

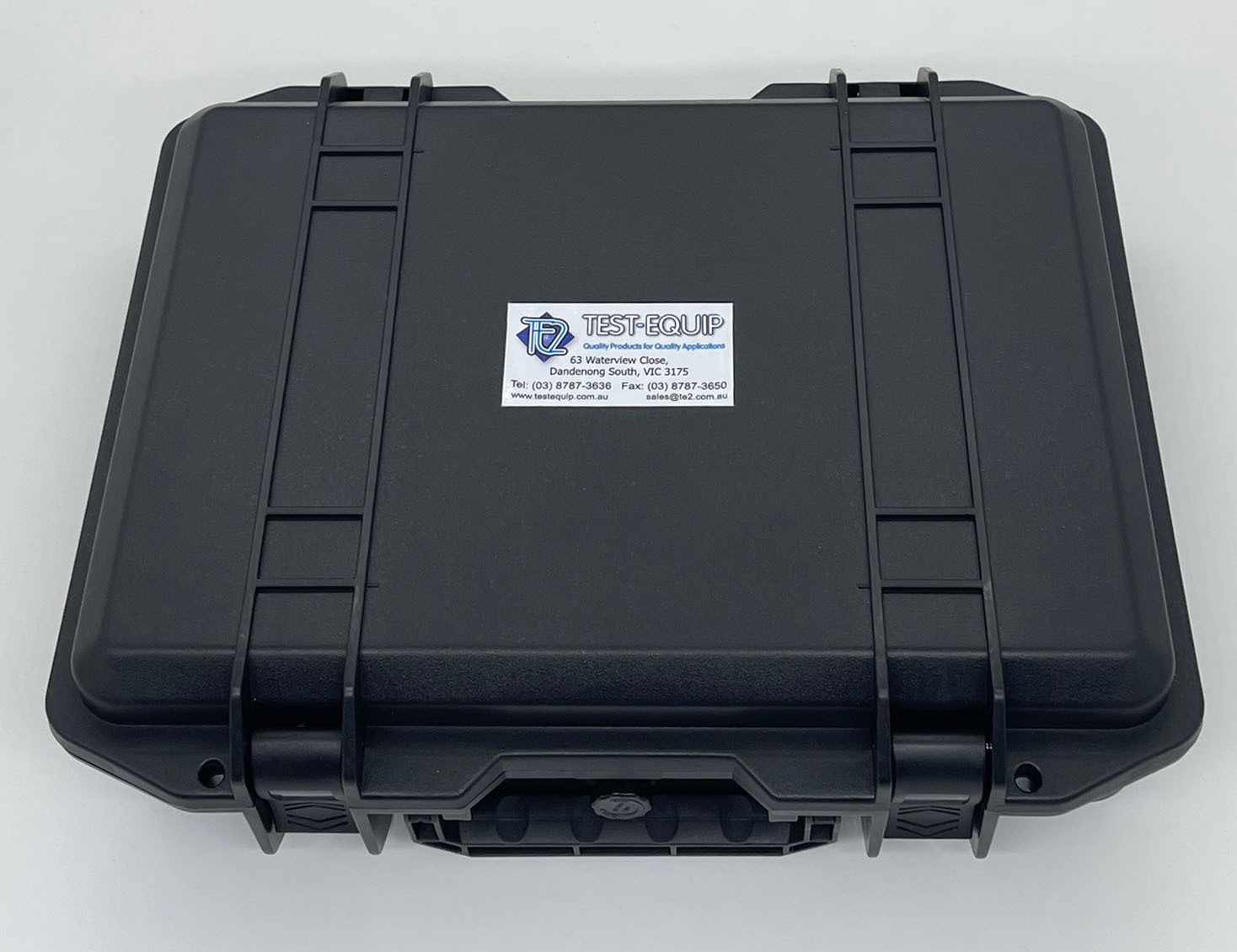

• Heavy-Duty Workshop Carry Case

FEATURES:

• Easy to use Simple Interface
• Seperate Probe Indenter allows increased accessability
• Auto Conversion between common Hardness Scales
• Large Display Screen

SPECIFICATIONS:
