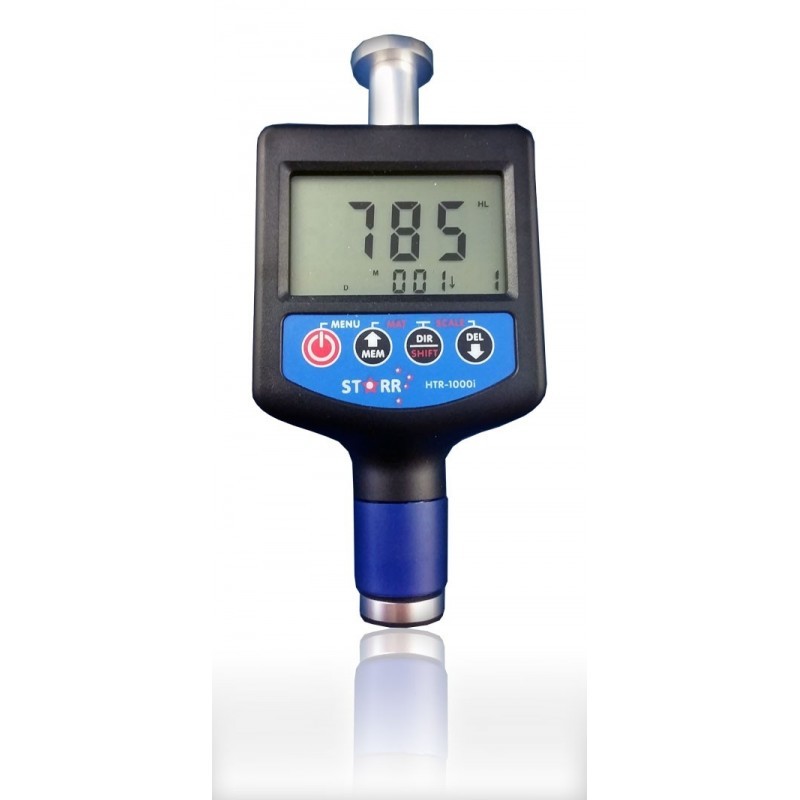

HTR-1000i integrated indenter portable hardness tester is suitable for tough working environments such as workshops.

By changing the test direction settings, testing can be carried out at any angle (including upside down.)  This versatile tester can be used on a range of metals including steel, cast steel, stainless steel, iron, aluminium, brass and copper.

The HTR-1000i uses the LEEB rebound method to measure in HLD, which can be converted to results in other scales such as Rockwell and Vickers and displayed directly on screen.  The rebound method works by spring loading a tungsten carbide indenter, firing it against a surface and measuring the rebound energy.  The higher the rebound, the harder the surface.

FEATURES:

  • Portable one hand use
  • Auto impact direction sensor
  • Scale conversion (to Rockwell, Brinell, Vickers and more)
  • Internal memory 50 readings
  • User calibration



Basic kit :

  • Tester
  • Test tips (2)
  • Cleaning brush
  • User manual
  • Batteries (2 x AAA)
  • Added aluminium carry case.

Complete kit includes everything in basic kit as well as:

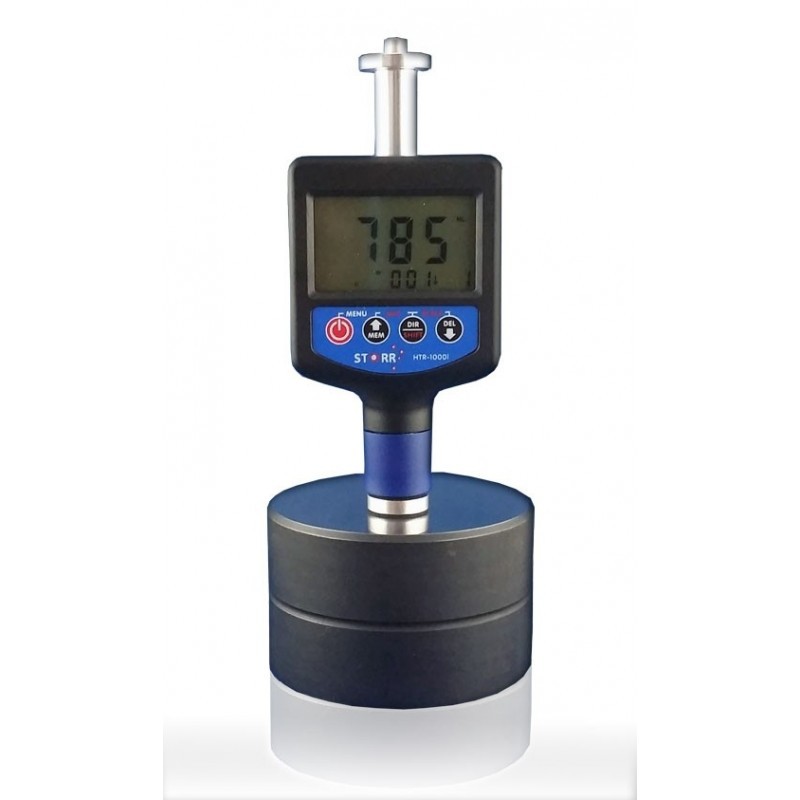

  • dedicated LEEB test block for calibration verification


For further assistance please contact us.



SPECIFICATIONS:

Impact Device D integrated
Hardness Scales HLD, HB, HRC, HRB, HV, HS
Accuracy ± 0.8%
Max. Hardness 900 HLD (68.4 HRC)
Min. Hardness 200 HLD (20 HRC)
Measuring Direction All
Memory (hardness, material, scale, direction)
Power 2 x 1.5v AAA Battery
Dimensions 146mm x 65mm x 36mm
Weight 130g




(HTR-1000i)

SKU HTR-1000i
Brand STARR INSTRUMENTS by Test-Equip
