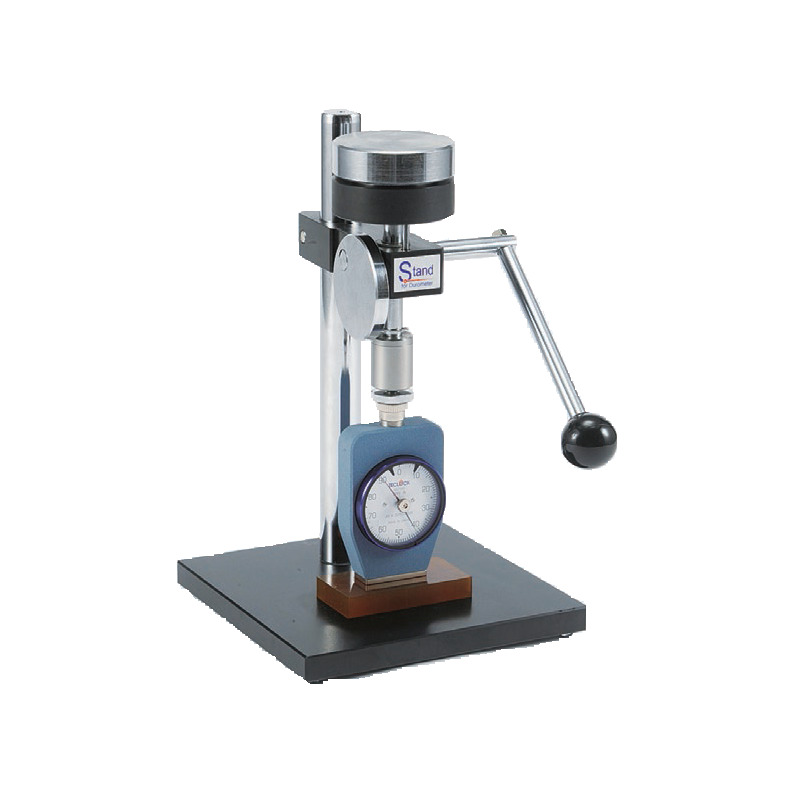

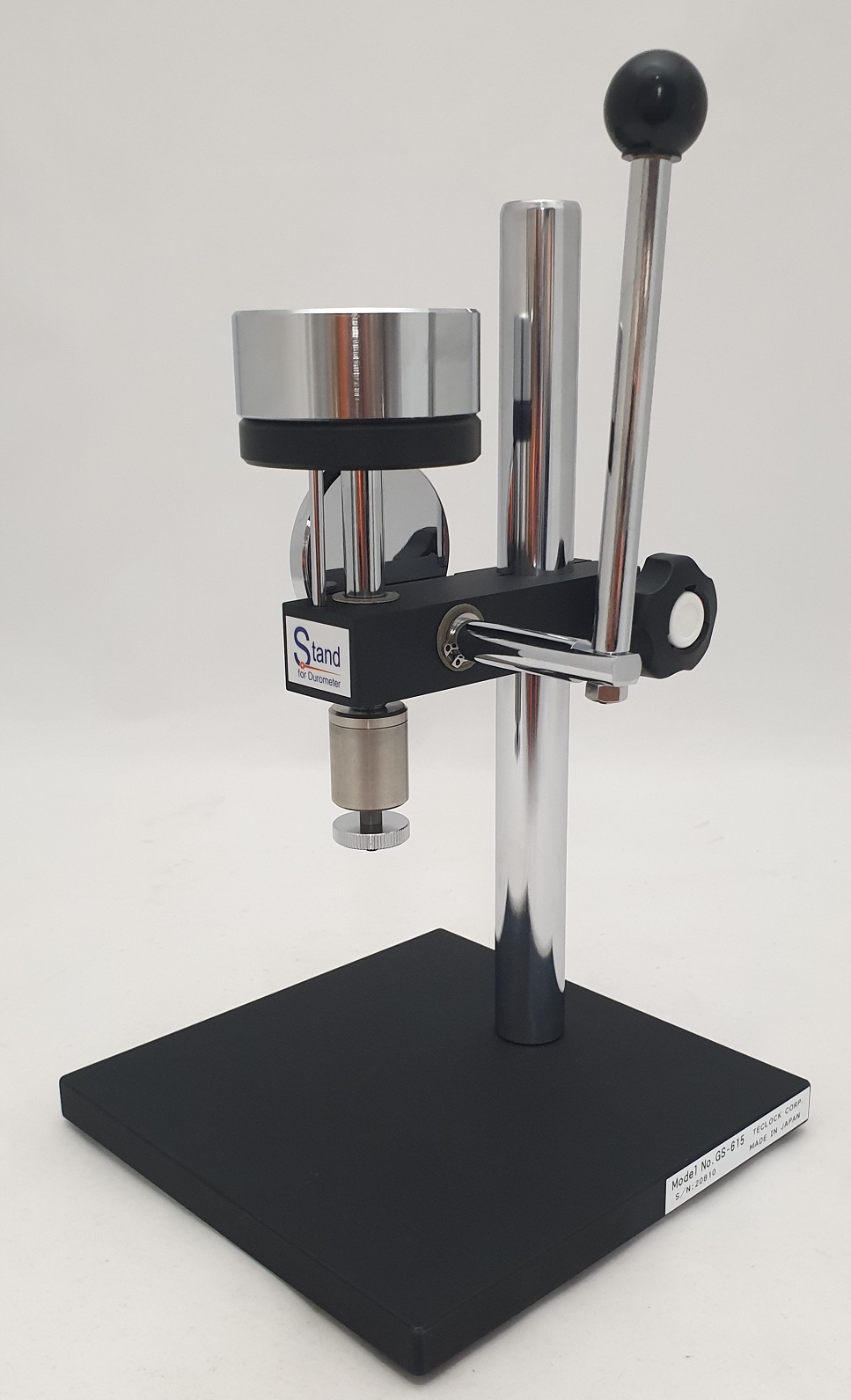

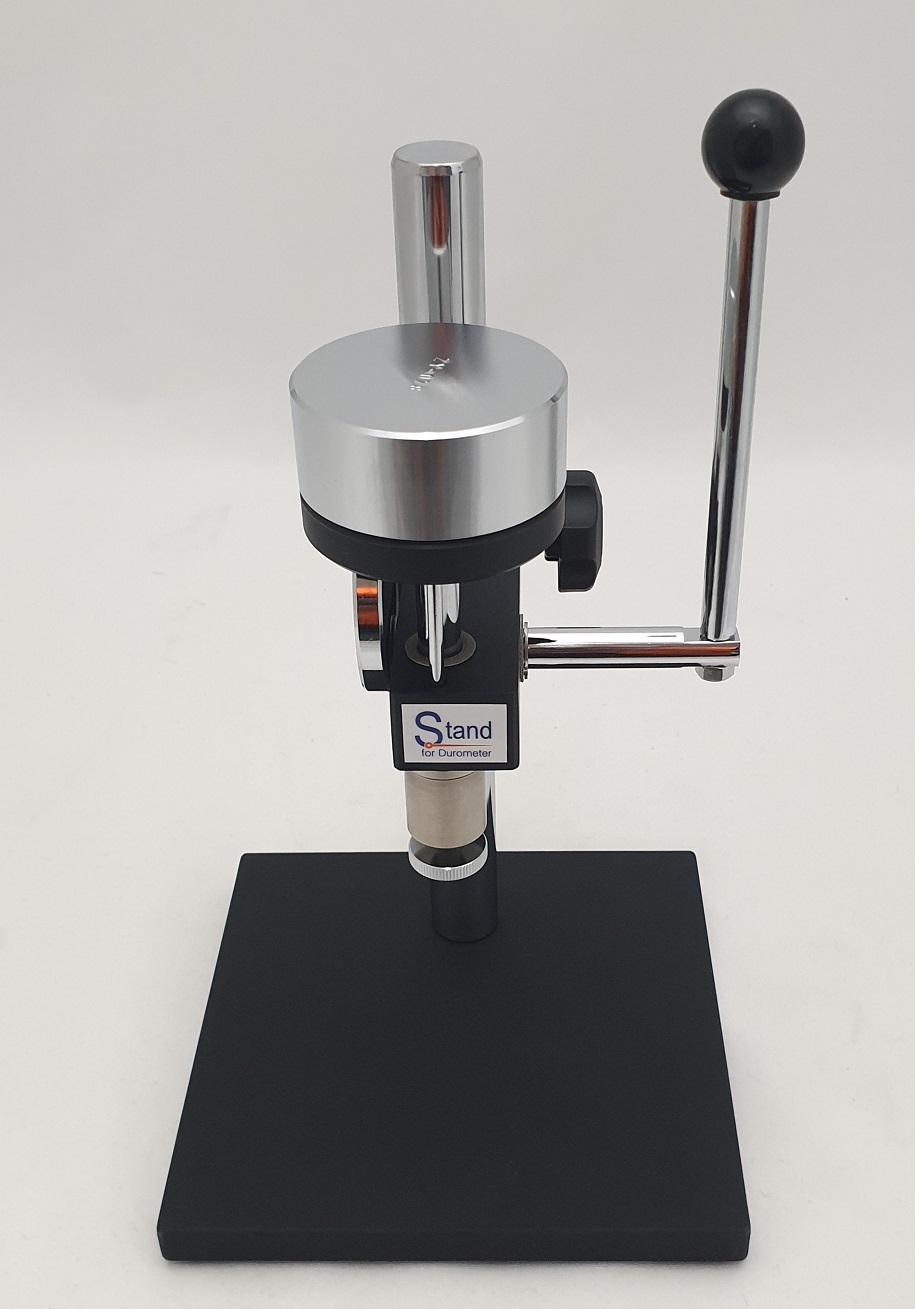

The Teclock GS-615 Durometer test stand is designed for quick & simple measurement of rubbers and plastics using ISO controlled load weight.

This basic stand is lever operated and provides for constant load according to ASTM, ISO, JIS standards., and includes a 1Kg weight for Shore A, B, E, SRIS and O scales.

Optional part ZY-128 is a 4kg weight that is used for testing in the scales of D, C, DO, C (old)



FEATURES:

  • Hardness can be measured by durometer with load prescribed by JIS by mounting durometer and manual operation.
  • Adopting cam has realized easy operation and cost performance.
  • Alignment unit which realizes high contact between indenter (contact point) of durometer and test piece is mounted.
  • 1kg can be measured by type A and type E durometer as they are. Measuring by type D needs optional weight ZY-128 for measuring 5kg. Digital durometer GSD series needs optional weight ZY-079 for measuring 1kg.
  • Calibration certificate can be issued (*additional cost - specify at time of order)



(GS-615)

SKU GS-615
Brand Teclock
Shipping Weight 5.0000kg
Shipping Width 0.300m
Shipping Height 0.500m
Shipping Length 0.300m
Shipping Cubic 0.045000000m3
