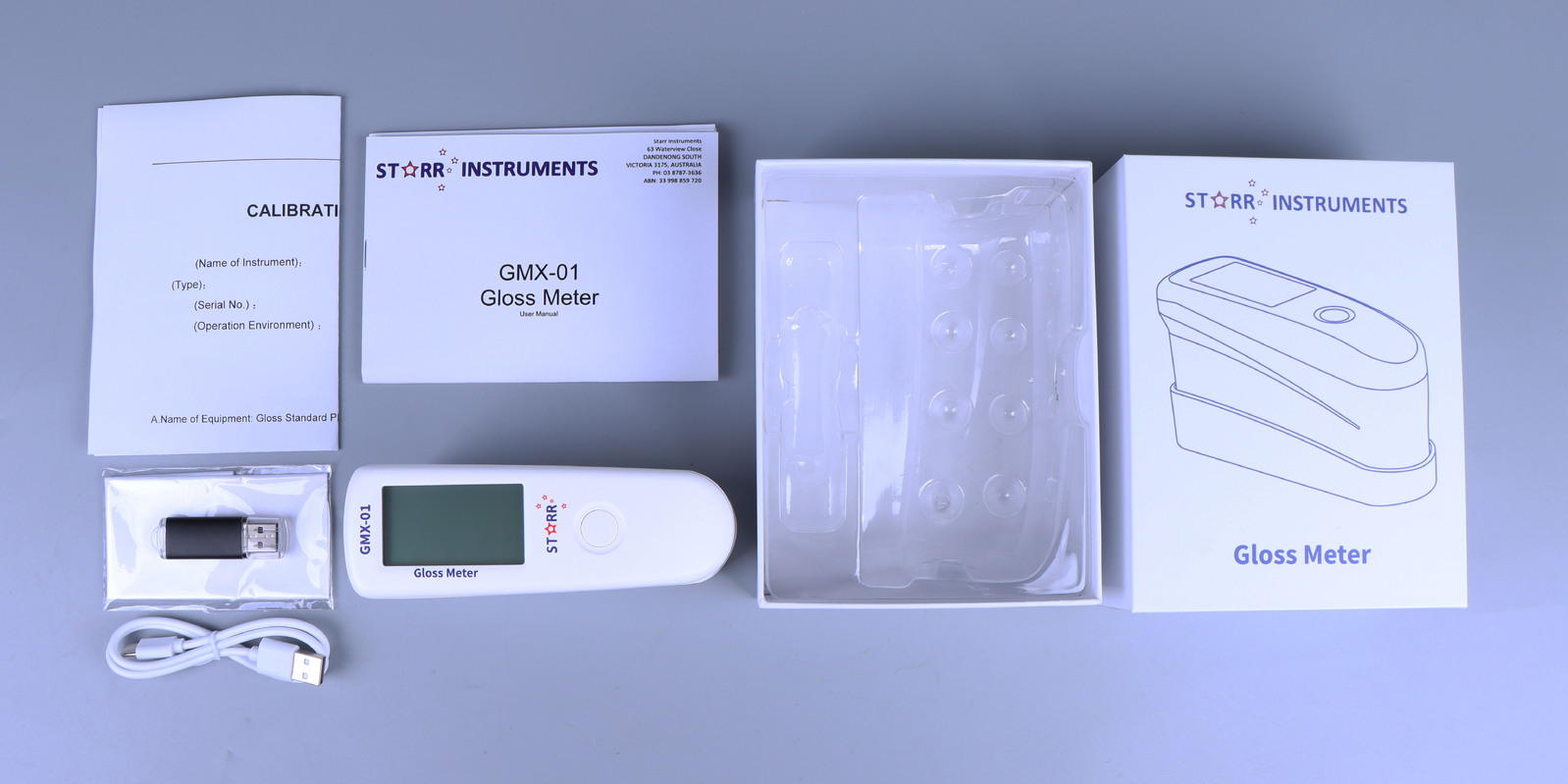

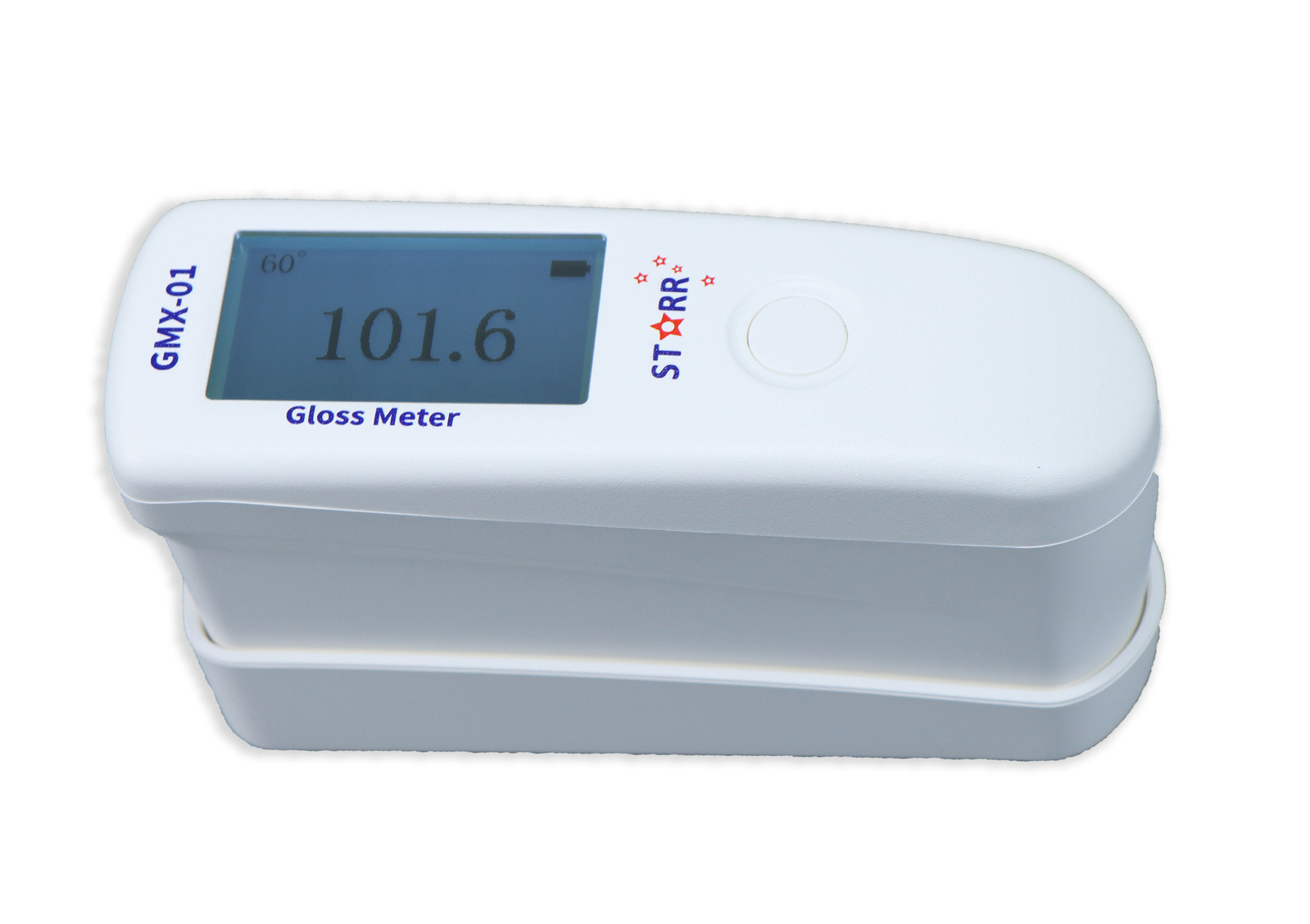

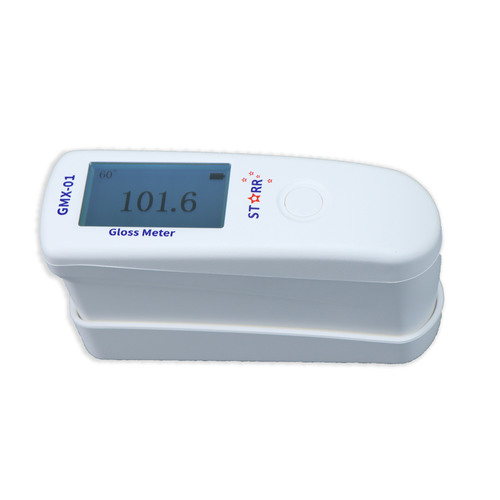

The Starr Instruments GMX-01 is a high quality, easy to use, single angle gloss meter. The single 60 degrees incidence angle is used for gloss measurement on many surfaces such as floor tiles, painted metal, plastics, windows and glass. Despite having a singular button, the GMX-01 has more functions than most other gloss meters on the market. With the ability to enter a Quality Control Mode, this Gloss Meter has programmable high and low limits which can alert the user if exceeded.

In additon to this, documented results when connected to a computer can be exported through the software provided. These results are incredibily accurate with a repeatability of ±0.2 GU, allowing for consistent and reliable results across any range of measurement.



FEATURES:

  • Instantaneous Test Results
  • Built-In Self Calibration
  • Singlular Button makes easy use
  • Rechargable Battery increases longevity
  • Downloadable Software with included USB



SPECIFICATIONS:

Measuring Angle

60°

Measuring Aperture

9mm x 15mm

Measuring Range

0-200GU

Minimum Material Size

 20mm x 10mm

Resolution

0.1GU

Repeatability

±0.2GU

Power Supply

Built-In Rechargeable Battery

Display

240 x 128 Dot Matrix

Data / Software

USB Stick (Included)

Weight

240g





(GMX-01)

SKU GMX-01
Brand STARR INSTRUMENTS by Test-Equip
