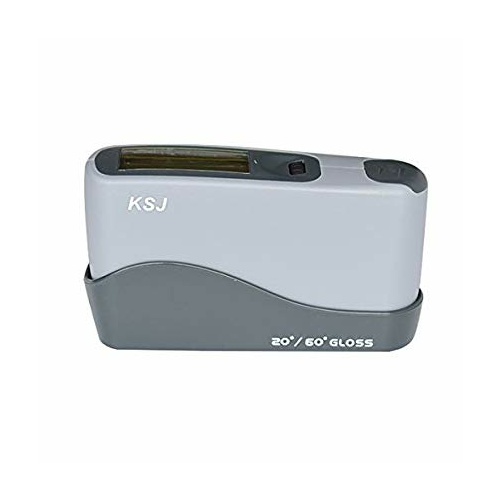

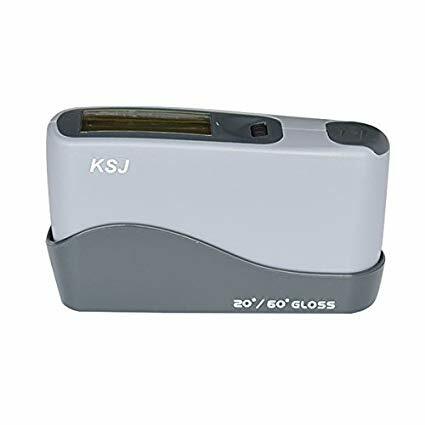

Gloss meter MG26-F2 from KSJ. This is a dual angle, smart meter with internal memory for recording and storing readings. Specular reflection is measured in Gloss Units (GU) from 0 to 1000 at angle of incidence 20° and 60°. It also features a USB port for output to the included Data Operator software.

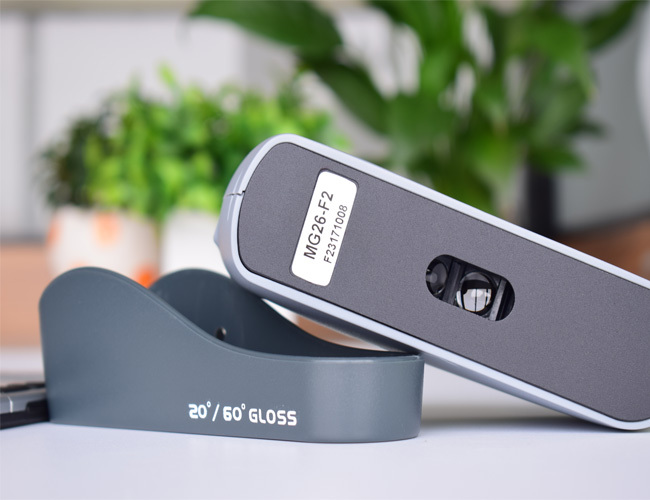

One touch operation is simple and the MG26-F2 includes a reference tile for self calibration built into the storage cradle.

Standard kit includes battery, user manual and padded pouch for storage.

FEATURES:

  • Dual measuring angle model 20° & 60°
  • Memory 10,000 measurements
  • USB interface
  • High resolution model
  • Software included

SPECIFICATIONS:

Range Gs (20°) 0~2000 GUGs (60°) 0 ~ 1000 GU
Indication Error ± 1.5 (0~120 GU); ± 1.5% (>120 GU)
Resolution 0.1 (0~120 GU); 1 (>120 GU)
Incidence Angle 20° and 60°
Dimensions 123 x 38 x 65mm
Weight 300g
Power Supply 1 x AA Battery

(MG26-F2)

SKU MG26-F2
Brand KSJ
