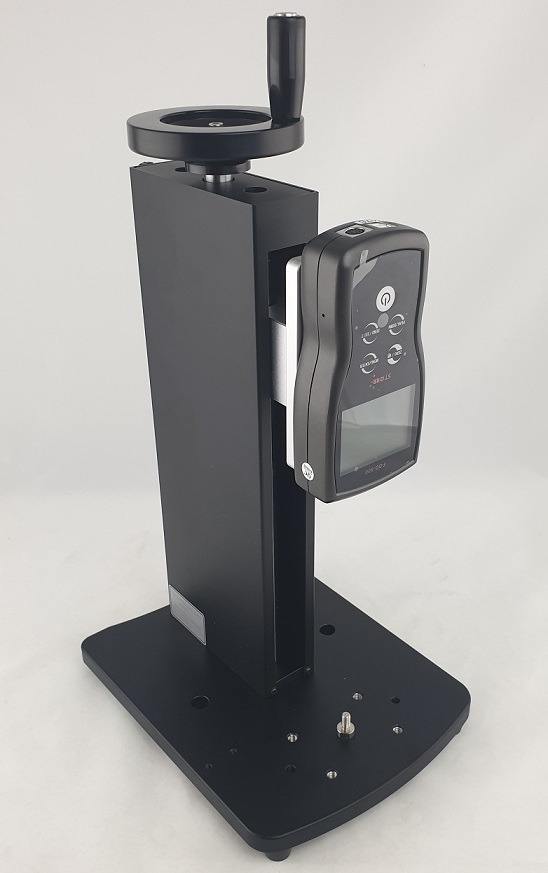

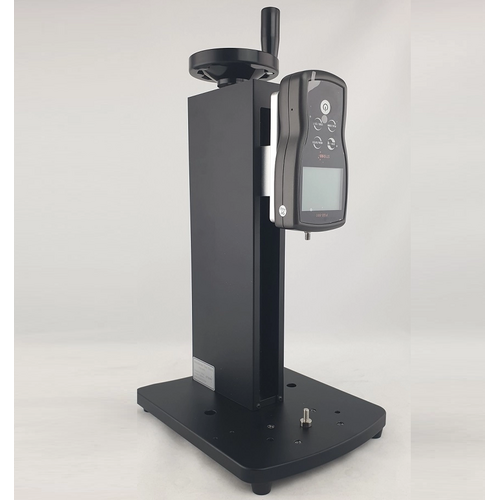

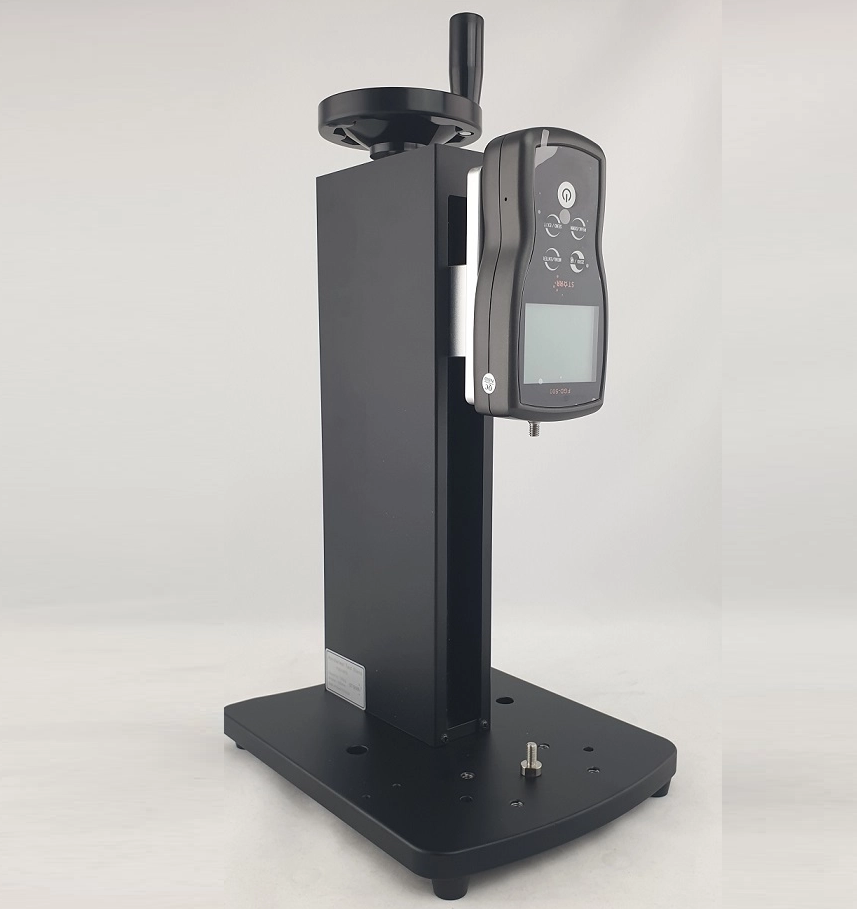

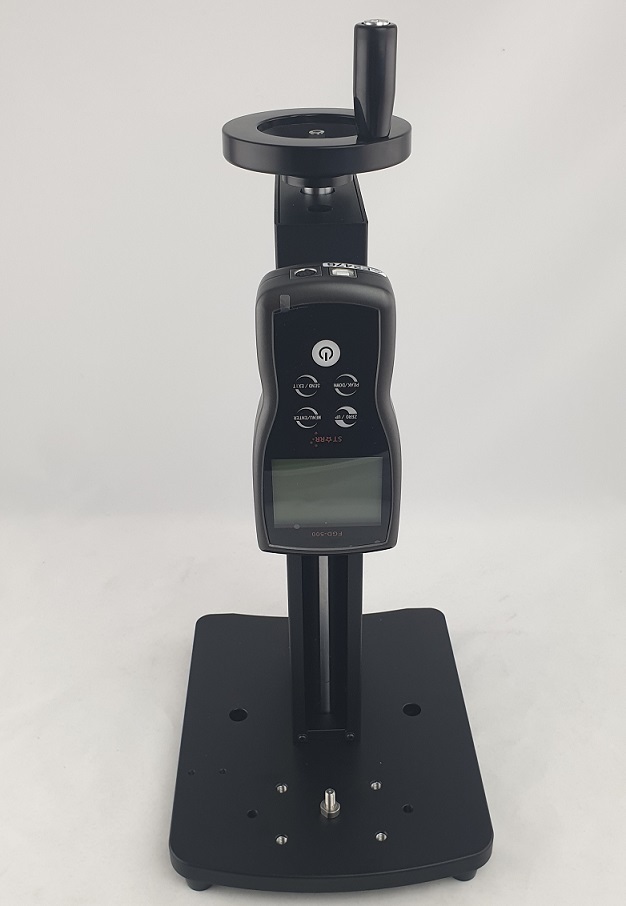

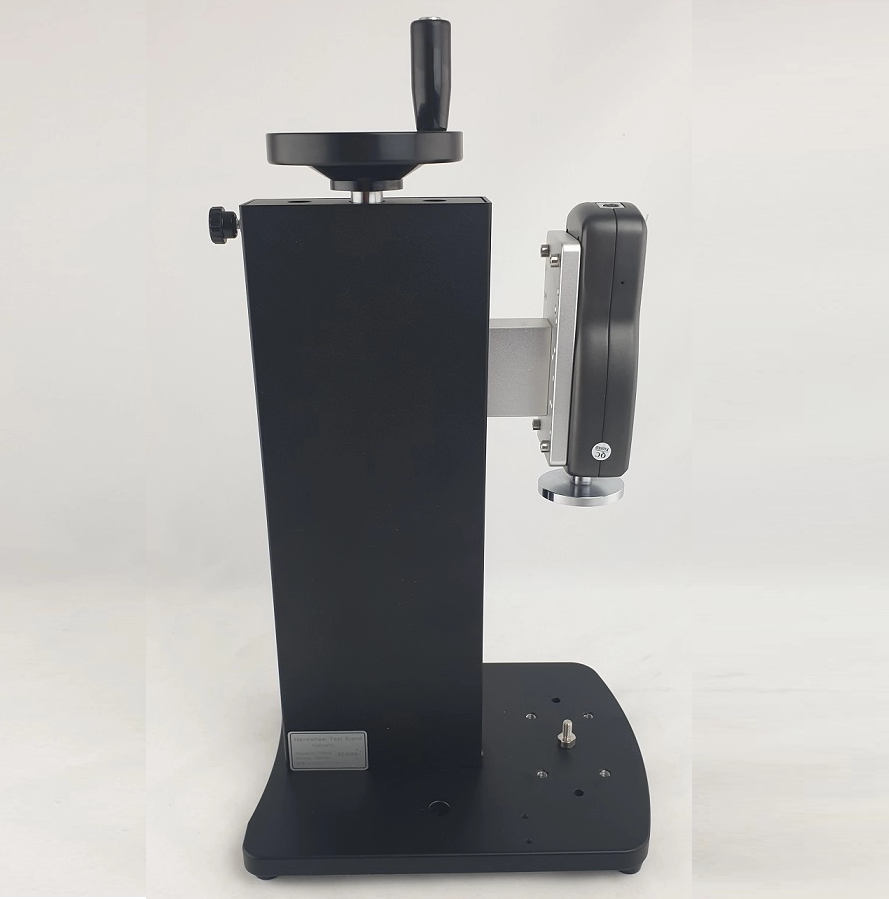

The FGD-MTS is a heavy duty, steel frame, force gauge test stand with manual operation by hand-wheel. It complements the FGD-Series digital Force Gauge to ensure greater accuracy and consistency when testing compression or tension forces in a production line application where fast, repeatable testing is required.

This test stand operates with a mechanical hand-wheel that provides 3mm of travel for every rotation to allow a precise, controlled application of force.

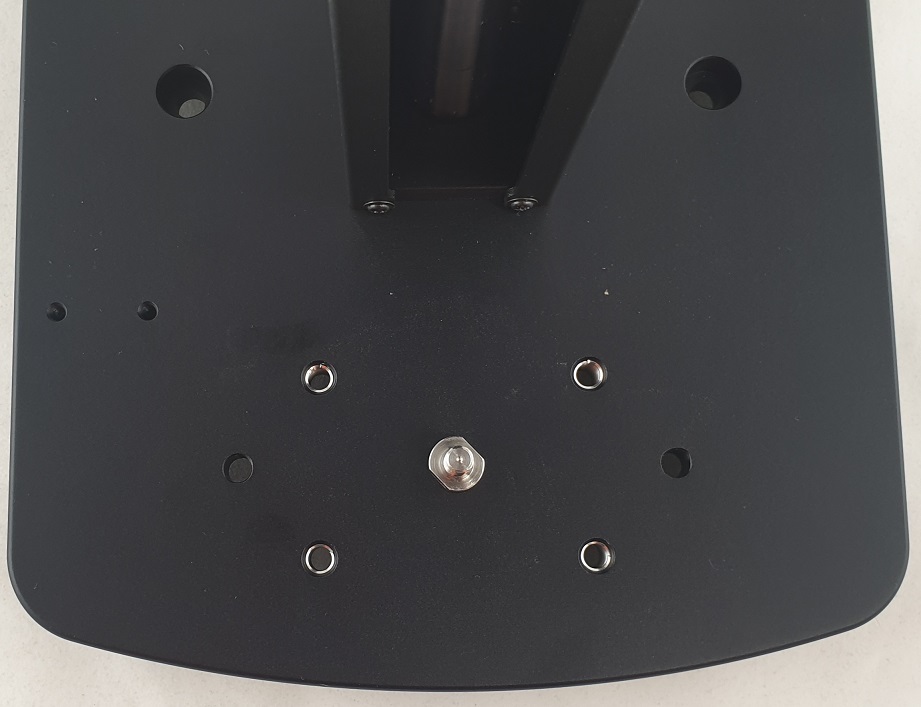

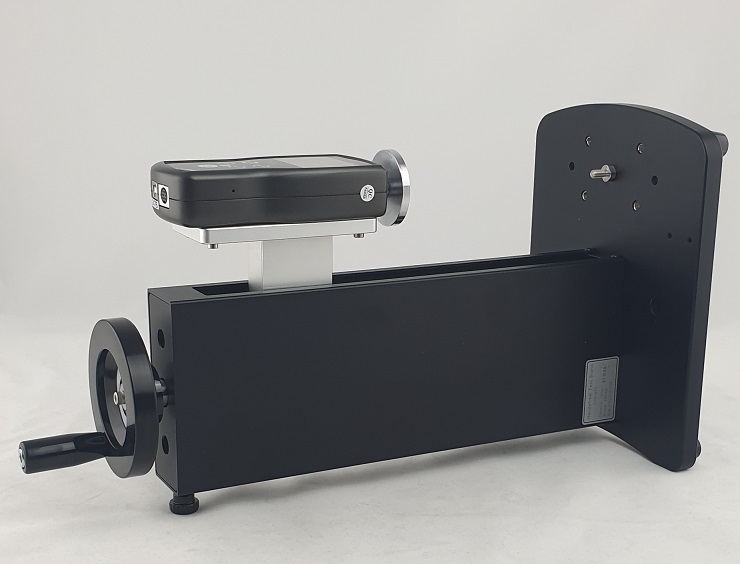

The base plate has two large mounting holes for attaching it securely to a bench for added stability. The base plate is completely removable, which allows the main testing boom to be custom-mounted into almost any existing application.

The FGD-MTS is a standalone manual testing frame that can be easily adapted for many other brands of force gauges.

Optional tensile testing frame and digital scale can be added on request.



* Please note: force gauge sold separately.

For further assistance please contact us



SPECIFICATIONS:

Capacity 125 Kg/f, 1200N
Rotation Distance 3mm for every turn
Max. Stroke 230mm
Operation Type Manual, hand wheel
Digital Scale 200mm max. (0.01mm res)
Dimensions (mm) 196 x 250 x 445 (h)
Weight 7Kg

(FGD-MTS)

Length: 250mm

Width: 196mm

Height: 445mm

Weight: 7Kg

SKU FGD-MTS
Brand STARR INSTRUMENTS by Test-Equip
Shipping Weight 9.0000kg
Shipping Width 0.350m
Shipping Height 0.500m
Shipping Length 0.300m
Shipping Cubic 0.052500000m3
