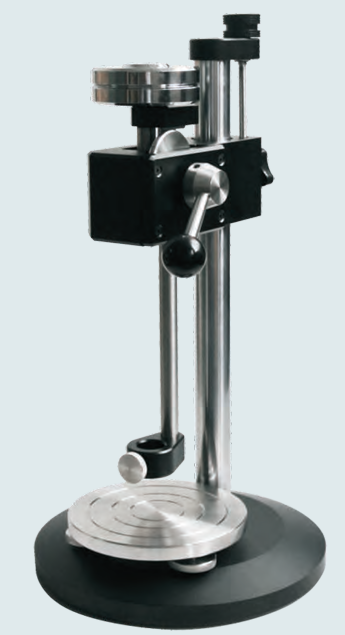

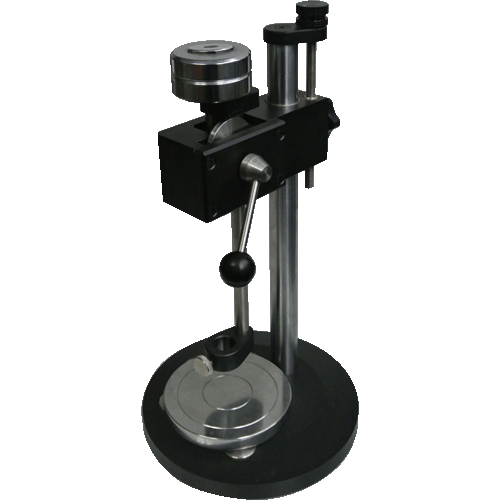

The DSD-STAND is a bench top, durometer test stand compatible for use with the Starr Instruments DSD-A and DSD-D digital Durometers.

It provides a stable base and constant load when testing, which is important for consistent results as per ASTM D2240 standard.

The test stand also overcomes the difficulty of repeatedly applying a consistent pressure when using a durometer as a hand instrument; particularly over multiple tests and users.

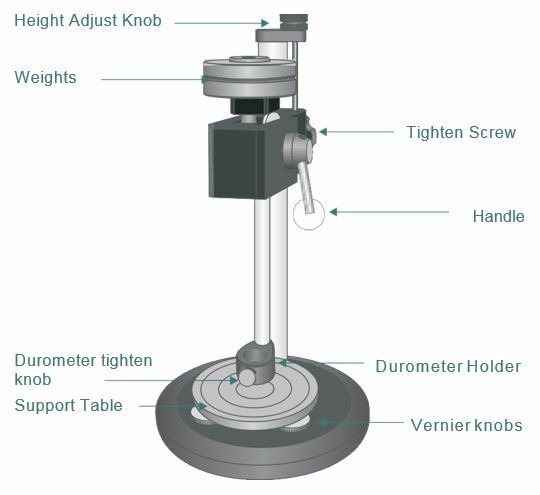

The manual stand features a cam lever system fixed to an adjustable height boom for adapting to a wide range of test piece heights up to 60mm tall.

A test weight of 1Kg is suitable for Shore A testing and a weight of 4kg is used for the Shore D version of the DSD Stand to meet the standards for Shore D testing.

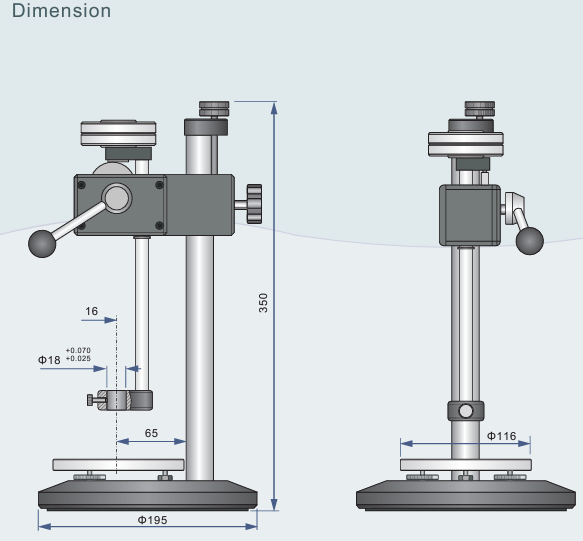

SPECIFICATIONS:

  • Operating Type: Indenter to specimen
  • Loading Method: Cam loading
  • Loading Stroke: 18 mm
  • Specimen Thickness: 60 mm (max.)
  • Throat Depth: 65 mm
  • Support Table (dia.): Ø116 mm
  • Lifting Adjustment: Screw adjustment
  • Table Adjustment: Three-point levelling
  • Weight: 5.6kg



*Gauge NOT included, shown for reference only

For further assistance please contact us.

(DSD-Stand)

SKU DSD-Stand
Shipping Weight 8.0000kg
Shipping Width 0.300m
Shipping Height 0.450m
Shipping Length 0.300m
Shipping Cubic 0.040500000m3
