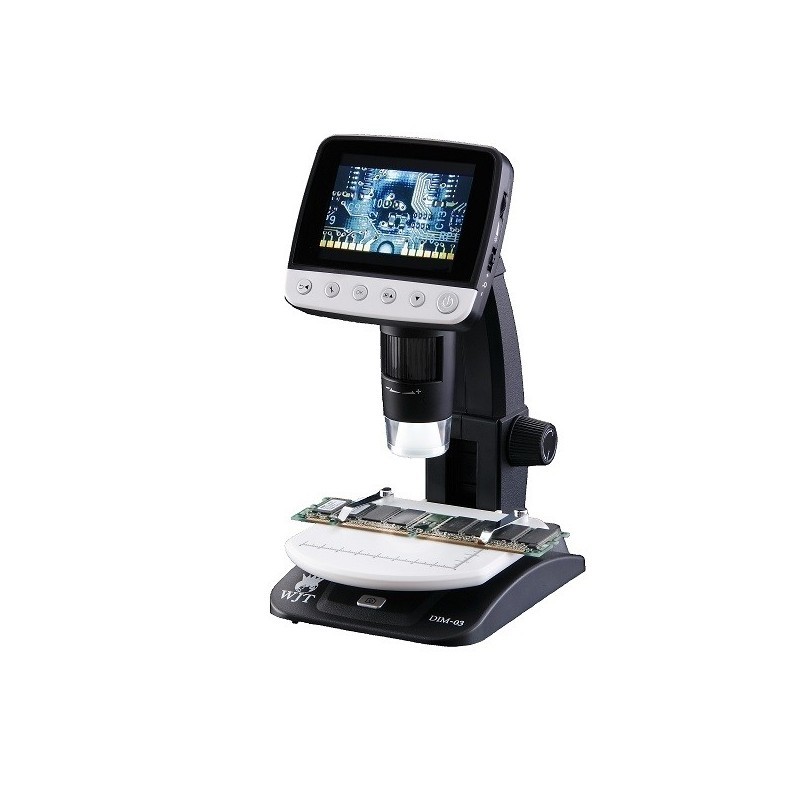

DIM-03 is a digital microscope that is easy to use and features an integrated TFT monitor.  Through HDMI, images can be displayed at full HD / 1080p / 30fps on a TV or compatible monitor.  Images or video can be recorded to micro SD or to a PC.  Measurement software is included for analysis.  The miscroscope can also be powered by batteries for use in the field.  Optical magnification is 25x which combined with 4x digital magnification can provide an overall magnification up to 100x.



FEATURES:

• Full HD display via HDMI
• Micro SD storage
• Measurement software for PC
• Rechargeable battery for on-site use



SPECIFICATIONS:

  • Optical magnification 25X
  • Digital magnification 4X for overall magnification up to 100X
  • 3.5 Megapixel camera
  • Micro SD card slot for cards up to 32Gb SDHC
  • HDMI, AV, USB output
  • Viewing field 2.5x:24mm / 100x:0.65mm
  • 230mm x 147mm x 110mm
  • 650gms

(DIM-03)

SKU DIM-03
