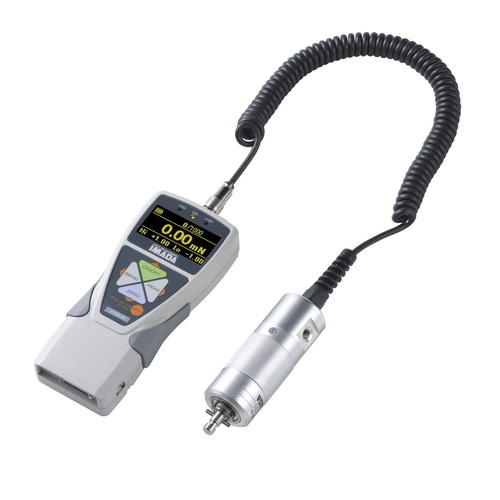

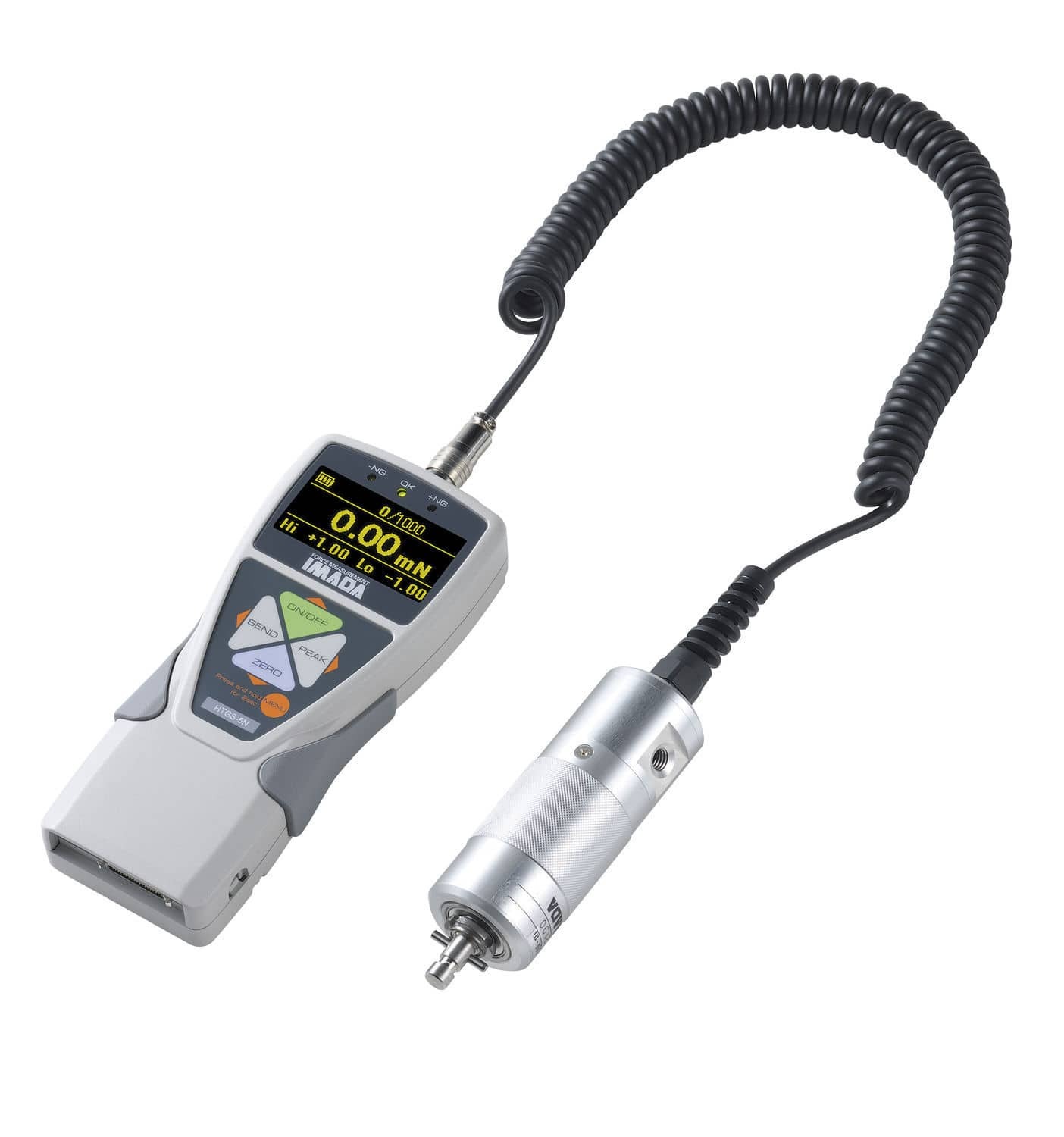

The Imada HTGS and HTGA series digital Handheld torque measurement instrument. for wide applications. Interchangeable attachments expand the range of application possibilities. High usability with bright display and various user  adjustable functions.

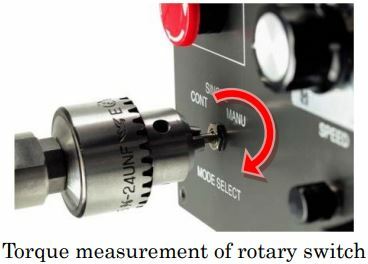

This torque gauge provides you accurate torque measurement in both CW and CCW orientation, with easy data management. Various samples are measurable such as a screw, a bolt, a rotary switch etc.

The accuracy +/-0.5% F.S. and the 2000Hz high speed sampling rate capture accurate force values of testing.
The capacity is 50N-cm to 10N-m(1000N-cm).



There are two version of this gauge: The HTGS is the standard version and the HTGA is the advanced version.

The HTGS has strong data features and with the data acquisition software can capture data up to 2000 times per second.

The HTGA adds even more features including: displacement I/O measurement, 1st and 2nd peak, min/max/average value recording, direct saving to USB stick and more.



FEATURES:

  • Vibrant display visible in dark locations
  • Accuracy +/- 0.5% F.S +/- 1 digit.
  • Process and transmits data 2000Hz
  • * Displacement data (HTGA model only - Professional Software and Motorised stand required)
  • Colour coded LED indicators for go / no-go testing
  • Durable metal construction
  • Overload capacity 200%
  • Selectable real time or peak mode
  • Overload alarm at 110%
  • Multi language menus




MODEL RANGE DISPLAY RESOLUTION
HTGA-0.5N  / HTGS-0.5N  50N-cm 50.00N-cm 0.01N-cm
HTGA-2N  / HTGS-2N 2 N-m (200N-cm) 2.000N-m (200.0N-cm) 0.001N-m (0.1N-cm)
HTGA-5N / HTGS-5N  5 N-m (500N-cm) 5.000N-m (500.0N-cm) 0.001N-m (0.1N-cm)
HTGA-10N / HTGS-10N 10N-m (1000N-cm) 10.00N-m (1000N-cm) 0.01N-m (1N-cm)

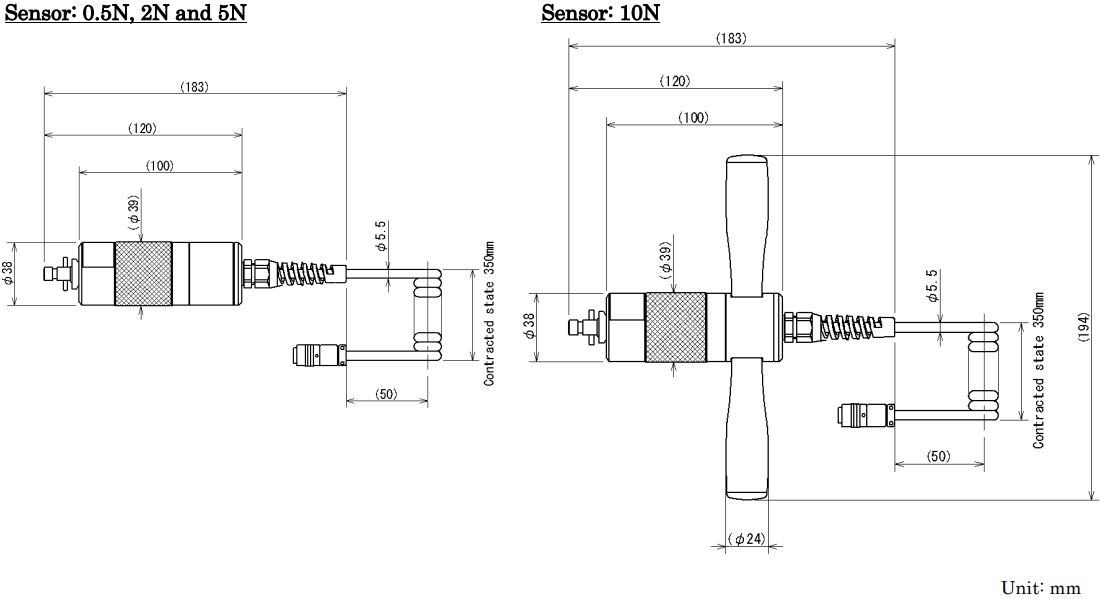

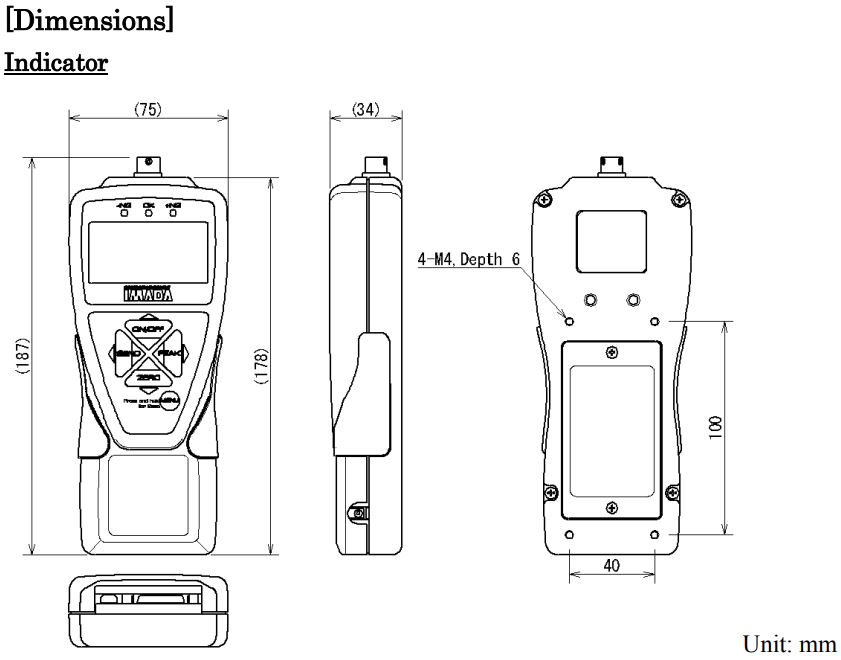

DIMENSIONS:





(HTGSeries_)

SKU HTGSeries_
Brand Imada
