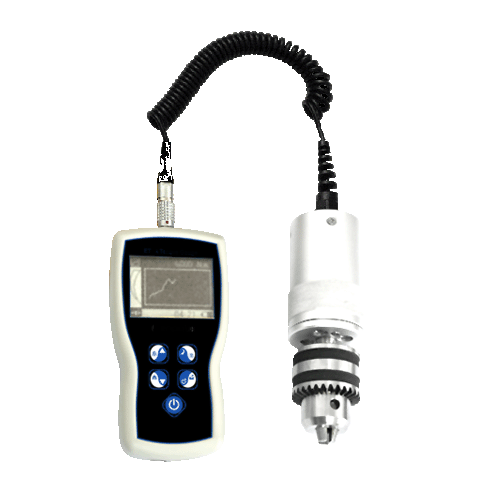

Digital Torque Gauge from Starr Instruments.  The DTM series is a portable, handheld torque screw driver with data memory and software for output.

Use for accurate measurement of fastener insertion, removal force and setting of tooling. With multiple measurement modes: track, peak, 1st peak, preset, auto peak.

Fitted as standard with Jacobs chuck grip.

Available in 1 N-m, 5N-m and 10 N-m load cell capacities to suit a range of applications.



FEATURES:

  • Ergonomic, durable, heavy-duty metal construction
  • Touch Pad
  • Automatic reversible display
  • Automatic load cell identification (ALI)
  • Accuracy: ±0.3%
  • Units: N-m, N-cm, kgf-cm, lbf-ft, lbf-in
  • Display Mode: Digital/Diagram
  • Connect to PC easily



SPECIFICATIONS:

Model Capacity Resolution
DTM-1 0.05 ~ 1 N-m 0.0001 N-m
DTM-5 0.25 ~ 5 N-m 0.0005 N-m
DTM-10 0.5 ~ 10 N-m 0.001 N-m



(DTM-5)

SKU DTM-5
Brand STARR INSTRUMENTS by Test-Equip
