Digital Electrode Force Gauge: FGW Series
spot welding force
$0.00 (incl. GST)

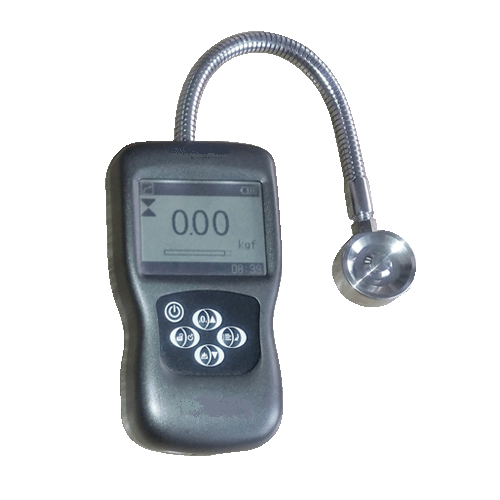

Starr Digital Electrode Force Gauge FGW-Series is designed for welding force measurement of spot-welding machines.
The FGW uses an electrode style load cell to measure the applied force in compression. It has positive-indication buttons for easy operation and is fitted with an overload protection system with an audible warning and visual bar graph alarm to reduce the chance of misuse and damage.
Built using the same quality materials and components as our FGC and FGD gauges; it features 3 different test modes for Peak, Tracking and Preset (which activates through a user-set value).
FEATURES:
• Ergonomic metal body with touch sensitive keypad
• Data logger and software for output
• Auto-orientation display screen (switches instantly when gauge is inverted)
• Visual and audible overload protection alarm
• Low + High alarm limit setting
Standard Delivery Kit Includes:
- Force Gauge
- USB charging/data cable
- Mains AC adapter
- Factory calibration certificate
- User manual
SPECIFICATIONS:
Accuracy |
± 0.3% F.S. |
Selectable Units |
N, kN, Kgf, and lbf. (Selectable) |
Display |
LCD with LED Backlight |
Overload Capacity |
120% F.S. |
Measurement Mode |
Track, Peak, Pre-Set |
Sampling Rate |
1000 Hz |
Memory |
100 records |
Power |
Ni-MH rechargeable |
Charger/Adaptor |
Universal USB charger |
Dimensions |
150 x 72 x 33mm |
Weight |
1 kg approx. |
Capacity (Range) Resolution: (Accuracy: +/- 0.3% F.S.)
MODEL |
N |
kN |
Kgf |
lbf |
|
FGW-1K | Capacity | 1000 | 1 | 100 | 220 |
Resolution | 1 | 0.001 | 0.1 | 0.1 | |
FGW-5K | Capacity | 5000 | 5 | 500 | 1100 |
Resolution | 1 | 0.001 | 0.1 | 1 | |
FGW-10K | Capacity | - | 10 | 1000 | 2250 |
Resolution | - | 0.01 | 1 | 1 | |
FGW-20K | Capacity | - | 20 | 2000 | 4500 |
Resolution | - | 0.01 | 1 | 1 | |
FGW-50K | Capacity | - | 50 | 5000 | 1.1k |
Resolution | - | 0.01 | 1 | 0.01k |

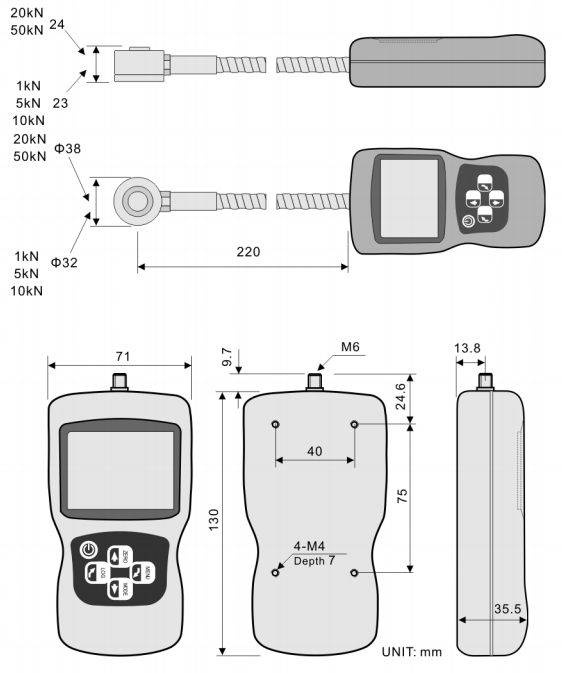

DIMENSIONS:
(FGW-Series)
SKU | FGW-Series |
Brand | STARR INSTRUMENTS by Test-Equip |
