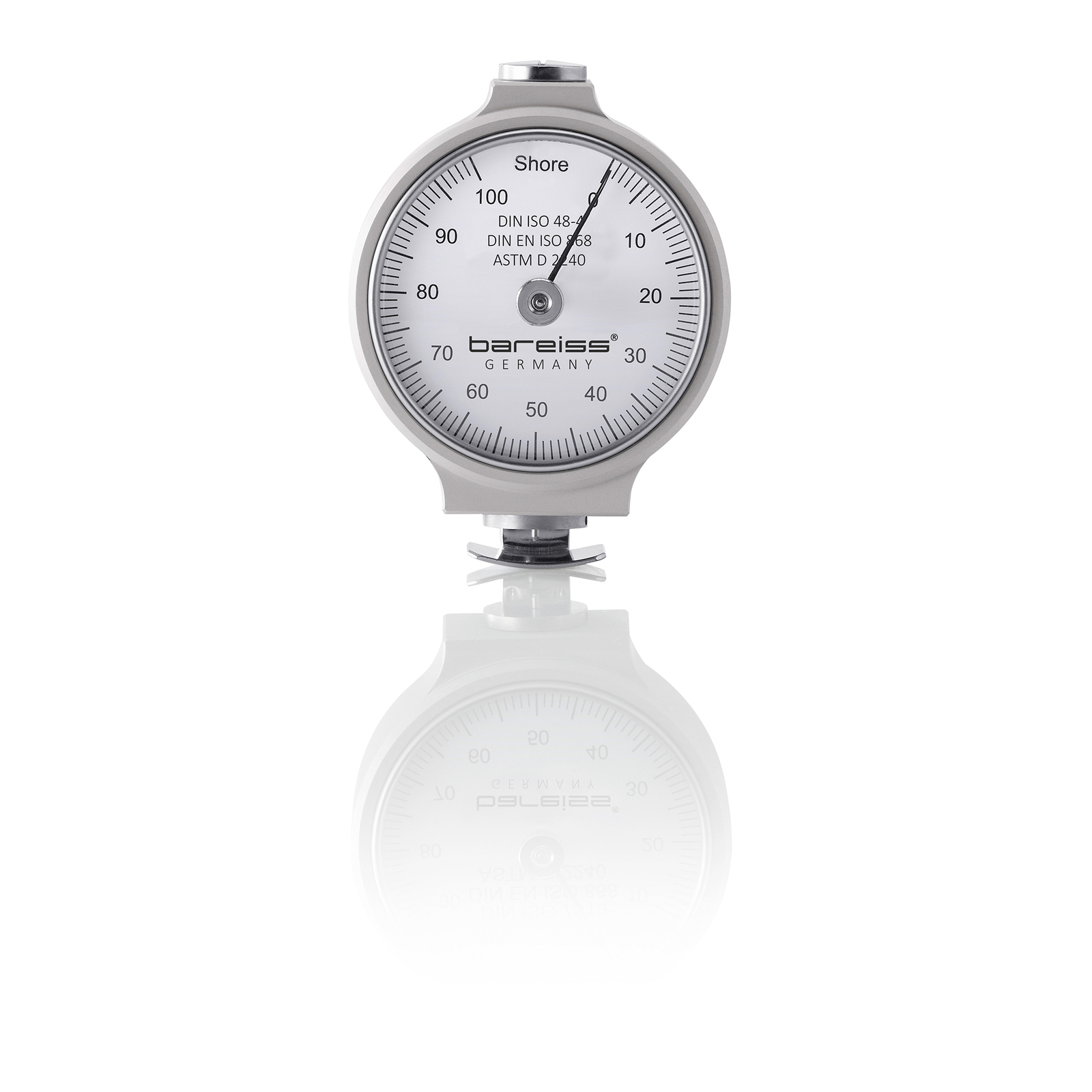

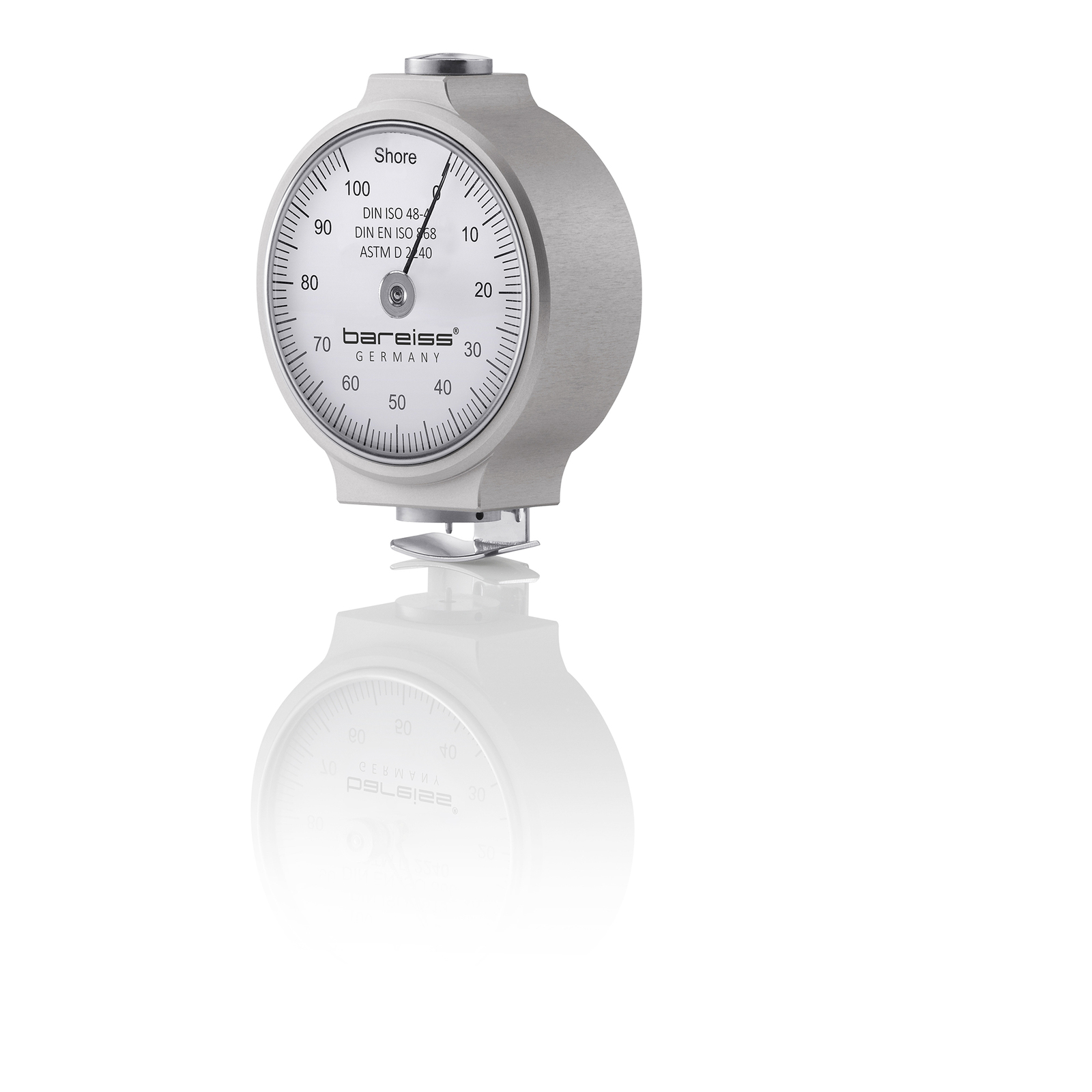

The Bareiss HP series is a precision dial durometer that is German made to the highest of standards.  The internal workings use graphite to reduce friction and the chassis is made from aluminium.

Featuring a peak hold needle (lazy arm) and an indenter protector that swings into place to eliminate the chance of damage when not in use.  Another useful feature is the anti-glare dial for easy reading of results.

Shore D scale for hard rubber, hard DIN EN ISO 868 4 plastics, acrylic glass, polystyrene, rigid thermoplastics, Resopal, pressure rollers, Vinyl plates, cellulose-Acetate, etc.

The scale graduation is 0 to 100 Shore, divided in to 100 units.



Optional DkD Certification (NATA equivalent) is available on request for additional cost.



SPECIFICATIONS:

  • Shore D
  • Scale Range: 0 to 100
  • Graduations: 1
  • DIN 53505, DIN EN ISO 868
  • NF T 51-174
  • ASTM D 2240
  • ISO 7619
  • BS 903 part A 26




(HP-DS)

SKU HP-DS
Model # fe00089
Brand Bareiss
