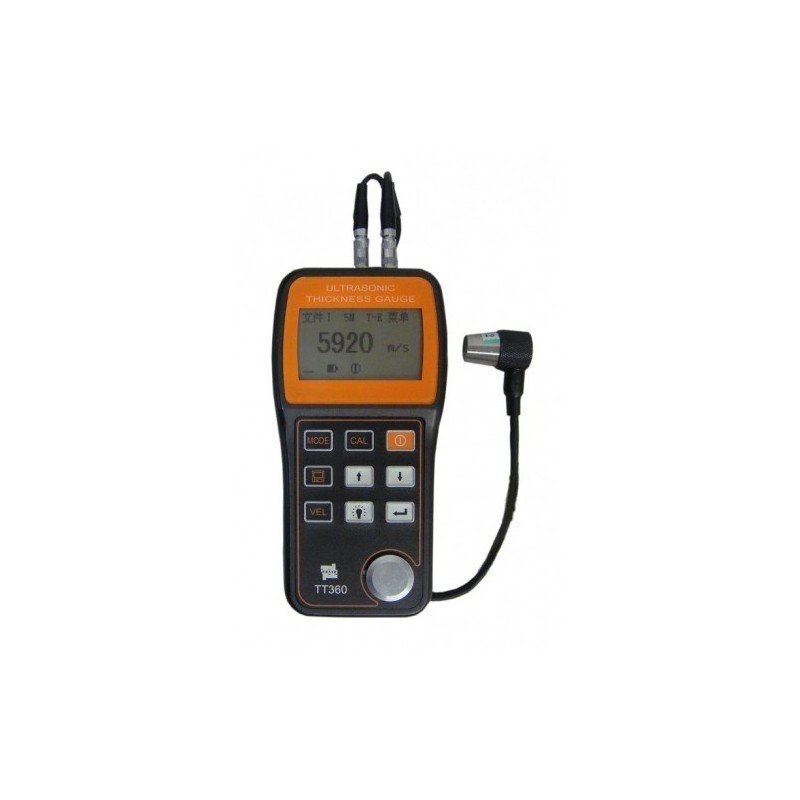

Ultrasonic Thickness Gauge : Time 2136 (TT-360)

• Echo to echo thickness measurement through coatings
• Data capabilities
• Upper and lower limit setting.
• Sound velocity 1000 ~ 9999m/s

Click here for more info and pricing

Advanced ultrasonic thickness gauge Time 2136 features echo to echo, which enables the measurement of material thickness through and discounting the coating thickness.  By timing and calculating the difference between two echoes of an ultrasonic pulse the Time 2136 can exclude the thickness of a coating to provide accurate measurement of the substrate thickness.


FEATURES:

  • Echo to echo measurement
  • Handheld
  • High resolution
  • Upper and lower limits can be set
  • Memory
  • Data via RS232

SPECIFICATIONS:

Measuring Range 3 ~ 20mm in E-E mode
Display Resolution 0.001mm or 0.01mm
Sound Speed 1000 ~ 9999m/s
Display LCD Backlight
Measuring Accuracy ±1%H+0.1mm
Data Output RS232
Calibration Plate 4.0mm Steel
Power 2 x AA Batteries 1.5V
Measuring Units mm / inch
Dimensions 152mm x 74mm x 35mm
Weight 220g
