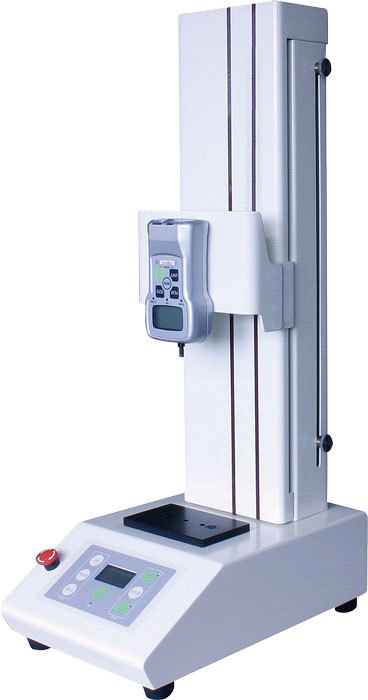

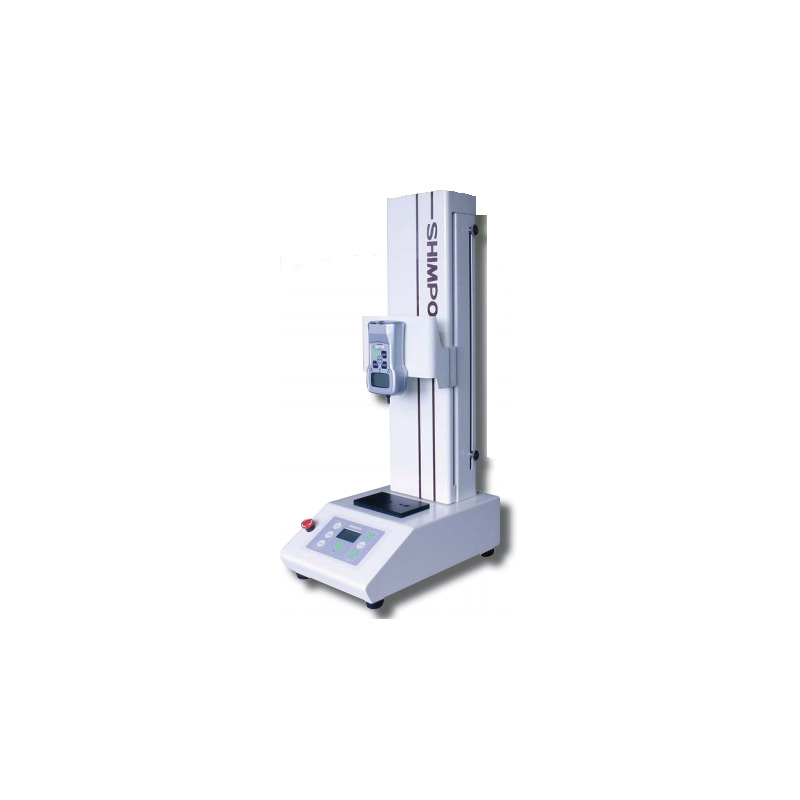

Force Gauge Stand : Shimpo FGS-100E
• Motorised for precise controlled force testing
• Compression and tensile testing
• Vertical orientation
• 500N capacity
The FGS-100E from Shimpo is a vertical orientation, Motorized Test Stand that offers users precise, controlled testing of tensile and compressive force. Testing can be carried out in single or continuous cycling using the four selectable modes; manual, jog, single cycle and continuous.
The stand maximum capacity is 500N (50Kgf) and is made from steel construction for rigidity and stability throughout the test phase to ensure accurate, repeatable results.
The simple 7 button key-pad with emergency override safety stop provides a user-friendly platform that does not require extensive training.
Users can easily set limits with the dual mechanical travel stops and additional control is possible using FGV-series force gauge programmable limit setting. There are two models for low and high speed range:
FGS-100E-L allows speed adjustment between 6~180 mm/min.
FGS-100E-H allows speed adjustment between 20~600mm/min.
- 500N (50Kgf) capacity
- Vertical orientation

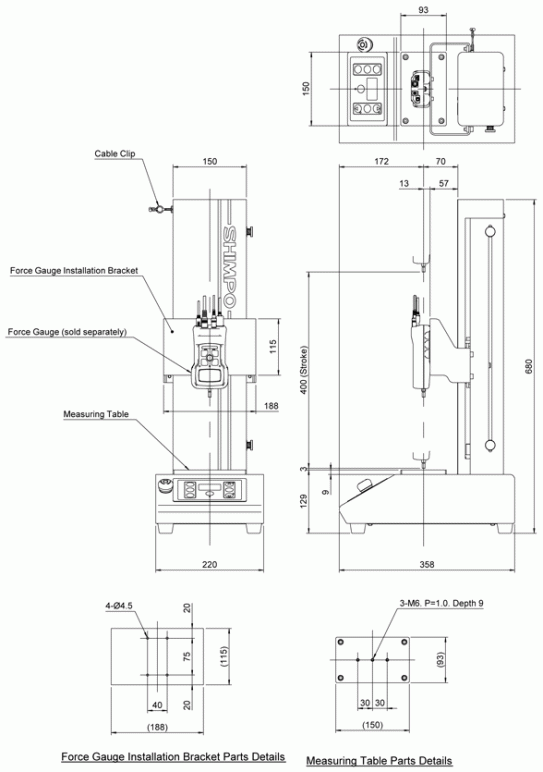

- 400mm maximum stroke
- 4 operation modes: manual, jog, single and continuous cycle
