Force Gauge : Shimpo FGV-XY Series

• Live data transfer at 100 times per second
• 1000 record memory and USB connection
• Selectable units (kg, N, lb, oz)
• 200% overload limit

Click here for more info and pricing

The FGV-XY Series Digital Force Gauge from Shimpo is compact and rugged with comprehensive data capabilities. Featured is on board statistical calculations for fast access to minimum, maximum, average and standard deviation data.

The 1000 record memory and USB connection allows for data exporting after testing is complete or in real time when connected via the included USB cable and using the free "Toriemon" downloadable software, data can be transferred live at up to 100 times per second.

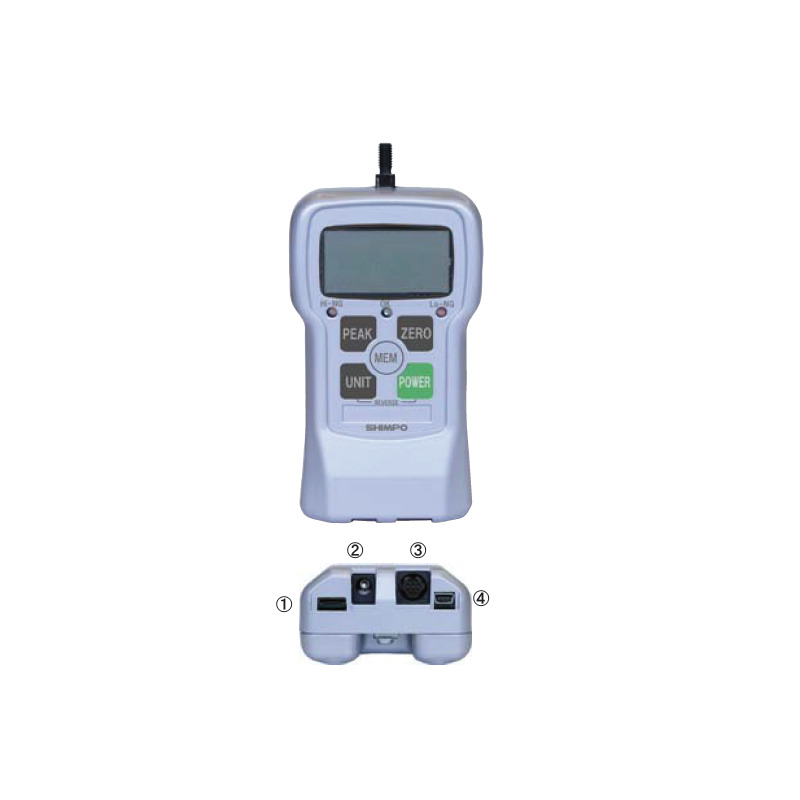

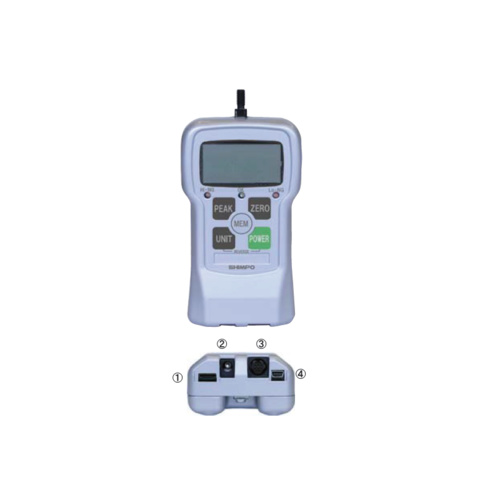

Testing is in both compression and tension and the display is automatically reversible with a dual labelled keypad to use the gauge in any direction.


FEATURES:

  • •High/low limit set-point for go/no-go testing
  • •Reversible display
  • •Die Cast Aluminium construction
  • •On board statistics
  • •200% overload limit
  • •Auto shut off

SPECIFICATIONS:

Accuracy ± 0.2% F.S.
Selectable Units N,kgf,Lbf,Ozf
Output USB, RS-232, Analog
Memory 1000 Hz data


MODELS:

MODEL CAPACITY RESOLUTION
FGV-0.5XY 2N (200gf / 0.5lbf) 0.001N (0.1gf)
FGV-1XY 5N (500gf / 1lbf) 0.001N (0.1gf)
FGV-2XY 10N (1kgf / 2lbf) 0.01N (0.001kgf)
FGV-5XY 20N (2kgf / 5lbf) 0.01N (0.001kgf)
FGV-10XY 50N (5kgf / 10lbf) 0.01N (0.001kgf)
FGV-20XY 100N (10kgf / 20lbf) 0.1N (0.01kgf)
FGV-50XY 200N (20kgf / 50lbf) 0.1N (0.01kgf)
FGV-100XY 500N (50kgf / 100lbf) 0.1N (0.01kgf)
FGV-200XY 1000N (100kgf / 200lbf) 1N (0.1kgf)

DIMENSIONS:

FGV-XY
